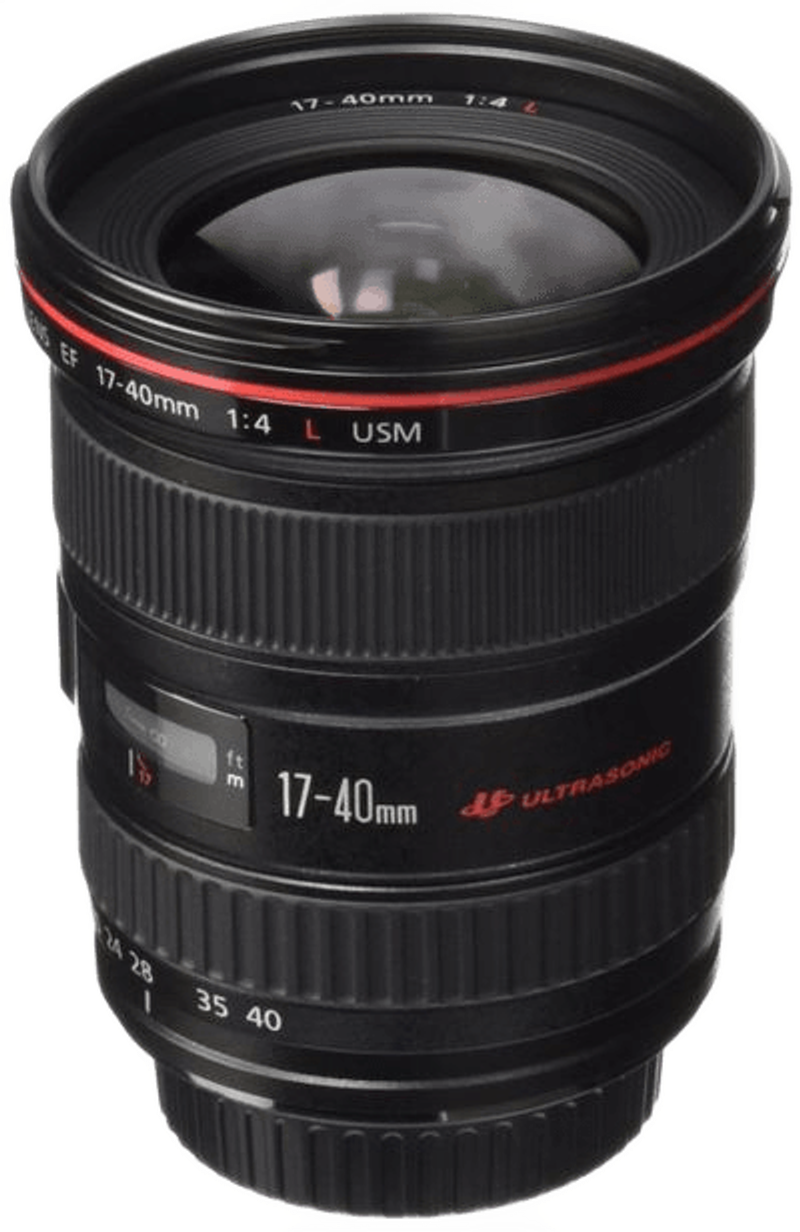

The Optical Foundation of the Canon EF 17-40mm f/4L USM Lens

The Canon EF 17-40mm f/4L USM Lens is a professional-grade ultra-wide-angle zoom designed for the EF mount, serving as a cornerstone of the L-series lineup since its introduction. It features an optical formula consisting of 12 elements arranged in 9 groups. This construction includes three aspherical elements of two different types: two standard glass-molded aspherical elements and one large-diameter ground aspherical element. These are specifically positioned to counteract the spherical aberrations and curvilinear distortions that typically plague wide-angle optics. Additionally, a single Super UD (Ultra-low Dispersion) glass element is integrated into the design to minimize chromatic aberrations, ensuring that color fringing is suppressed at the edges of high-contrast subjects.

Designed primarily for full-frame sensors, this lens provides a diagonal angle of view ranging from 104 degrees at the 17mm focal length to 57 degrees 30 minutes at the 40mm end. When mounted on an APS-C sensor camera, such as the EOS 90D or 7D Mark II, the 1.6x crop factor results in an effective focal range of approximately 27-64mm. This versatility allows it to function as a standard zoom on crop-sensor bodies while remaining a dedicated ultra-wide tool for full-frame users. The lens maintains a constant maximum aperture of f/4 throughout the entire zoom range, ensuring that exposure settings do not need to be adjusted as the photographer zooms in or out. This f/4 designation allows the lens to remain significantly lighter and more compact than its f/2.8 counterparts, weighing in at approximately 475 grams.

Image Quality and Optical Technologies

The image quality of the Canon EF 17-40mm f/4L USM Lens is defined by its ability to maintain high contrast and sharpness across the frame, even when shooting at its widest aperture. The inclusion of Super Spectra coatings on the lens elements plays a critical role in reducing ghosting and flare, which are common challenges for wide-angle lenses due to the large amount of light entering from various angles. These coatings ensure a neutral color balance and increase light transmission, which is vital for maintaining the integrity of the digital signal captured by the sensor. The seven-blade circular aperture diaphragm is designed to produce a pleasing, rounded bokeh in out-of-focus areas, though the f/4 maximum aperture and wide focal lengths mean that shallow depth-of-field effects are most pronounced during close-up photography.

At the 17mm end, the lens exhibits some barrel distortion, which is typical for this class of optic, but the three aspherical elements work to keep this within manageable limits for architectural and landscape work. Peripheral illumination (vignetting) is present when shooting wide open at f/4, particularly at the 17mm setting, but this resolves significantly when stopped down to f/5.6 or f/8. The Super UD element is particularly effective at the 40mm end, where it helps maintain edge-to-edge sharpness that rivals many prime lenses in the same focal range. The minimum focusing distance is 0.28 meters (approximately 11 inches) across the entire zoom range, allowing for a maximum magnification of 0.24x at the 40mm setting. This close-focus capability enables photographers to emphasize foreground subjects against an expansive background, a hallmark technique of wide-angle photography.

Autofocus Performance and Mechanical Handling

The Canon EF 17-40mm f/4L USM Lens utilizes a ring-type Ultrasonic Motor (USM) for its autofocus system. This technology employs ultrasonic vibrations to drive the focusing group, resulting in nearly silent and extremely rapid focus acquisition. The lens features an internal focusing mechanism, meaning the physical length of the lens does not change during focusing, and the front element does not rotate. This is a critical feature for photographers using graduated neutral density filters or circular polarizers, as the orientation of the filter remains constant. The lens also supports full-time manual focus override, allowing the user to make fine adjustments using the dedicated focusing ring without needing to switch out of AF mode.

In terms of build quality, the lens adheres to the rigorous standards of the Canon L-series. It features a dust and moisture-resistant construction, with O-ring seals around the mount, switch panel, and rings. To fully complete the weather sealing, the manufacturer specifies that a 77mm protect filter must be attached to the front threads, as the front element moves slightly within the barrel during zooming. The zoom ring and focus ring are rubberized and well-damped, providing tactile resistance that prevents accidental shifts. The lens barrel is constructed from high-quality engineering plastic on a metal mount, balancing durability with a weight that is manageable for long days of handheld shooting. A distance scale is provided under a clear window, marked in both feet and meters, which is useful for calculating hyperfocal distances in landscape photography.

Video Capability and Cinematic Application

For videographers, the Canon EF 17-40mm f/4L USM Lens offers a specific set of advantages and limitations. The 17-40mm range is highly effective for gimbal work, as the internal zoom movement is minimal, which helps maintain the balance of the stabilizer. While the lens is not strictly parfocal, it exhibits very little focus shift during zooming, making it easier to maintain subject tracking during focal length changes. The ring USM motor is fast enough for modern Dual Pixel CMOS AF systems found on cameras like the EOS R5 or C70 (via adapter), providing smooth transitions between focus points. However, the motor is not as silent as newer STM (Stepping Motor) or Nano USM designs; in quiet environments, the internal mechanical movement may be picked up by on-camera microphones.

The lack of internal Image Stabilization (IS) is a factor that video shooters must consider. When used on a body without In-Body Image Stabilization (IBIS), handheld footage at 40mm can appear jittery. However, at the 17mm end, the wide field of view naturally masks minor camera shakes. The 77mm filter thread is a standard size, making it compatible with a wide array of variable ND filters and matte boxes. The f/4 aperture provides a consistent exposure for video, which is essential when performing a manual zoom during a take. While it does not offer the low-light performance of an f/2.8 lens, the 17-40mm is often preferred for documentary and travel video where a deep depth of field is required to keep both the subject and the environment in sharp focus.

On the Shoot: Practical Scenarios in India

In a wedding photography context, such as a large-scale ceremony in a Bengaluru palace or convention center, the Canon EF 17-40mm f/4L USM Lens is frequently used to capture the scale of the venue. At 17mm, it allows the photographer to document the entire *mandap* and the surrounding guests even in constrained spaces. During the *Muhurtham*, the fast USM autofocus ensures that candid moments are captured instantly. The f/4 aperture is generally sufficient given the high-powered LED or strobe lighting typically used in modern Indian weddings, and the lens's ability to render vibrant colors and high contrast complements the saturated tones of traditional attire.

For a travel shoot in Goa, the lens's weather sealing and weight become its primary assets. When shooting the architecture of Old Goa or the expansive coastlines of Palolem, the 475g weight makes it easy to carry during long treks. The Super Spectra coating is particularly useful when shooting during the "golden hour" on the beach, as it manages the direct sunlight hitting the lens at low angles, preventing flare from washing out the details of the surf. The 17mm focal length is wide enough to capture the towering interiors of the Basilica of Bom Jesus, while the 40mm end allows for tighter environmental portraits of local artisans without the distortion associated with ultra-wide focal lengths.

In a Mumbai-based interior or real estate studio session, the lens is often mounted on a tripod and stopped down to f/8 or f/11. In these controlled environments, the three aspherical elements ensure that the straight lines of walls and furniture remain true, with minimal barrel distortion that can be easily corrected in post-processing. The 0.28m minimum focus distance allows the photographer to get close to interior design details, such as textile textures or hardware, while still including enough of the room to provide context. The lens's reliability and consistent performance across the zoom range make it a standard tool for professional architectural documentation in the city's diverse range of modern and colonial structures.

Compatibility and Pairing

The Canon EF 17-40mm f/4L USM Lens is natively compatible with all Canon EOS DSLR cameras featuring an EF mount. This includes the 5D series (Mark II, III, IV), the 6D series, and the 1D X series. It is also fully compatible with APS-C DSLRs like the 80D or 90D. When used on the modern mirrorless EOS R system, the lens requires an EF-EOS R Mount Adapter. It maintains full autofocus speed, metadata transmission, and aperture control when adapted. For those using the lens on an EOS R series body with IBIS, the lack of lens-based stabilization is mitigated, as the camera body can provide up to several stops of shake correction.

In terms of accessories, the lens uses 77mm filters. It is commonly paired with a circular polarizer to deepen blue skies in landscapes or an ND8 or ND1000 filter for long-exposure photography of moving water. The lens comes with the EW-83E petal-shaped hood, which is specifically designed to prevent stray light from entering the large front element at 17mm. For a complete kit, this lens is often paired with the EF 24-105mm f/4L IS II USM and the EF 70-200mm f/4L IS II USM, creating a "f/4 trinity" that covers everything from ultra-wide to telephoto while maintaining a consistent filter size and manageable total kit weight. It uses the standard LP-E6N or LP-E6NH batteries found in most professional Canon bodies, and its lack of IS means it places a relatively low power draw on the camera's battery system.

Limitations and Alternative Recommendations

While the Canon EF 17-40mm f/4L USM Lens is a highly capable tool, it has specific limitations that may lead a user to choose a different optic. The most notable limitation is the f/4 maximum aperture. For photographers specializing in astrophotography or indoor event photography without flash, the f/4 light gathering may be insufficient. In these cases, the Canon EF 16-35mm f/2.8L III USM is the superior choice, offering a full stop more light and improved corner sharpness at wide apertures, albeit at a significantly higher weight and cost.

Another consideration is the lack of Image Stabilization. For videographers shooting handheld or landscape photographers who do not wish to carry a tripod for low-light shots, the Canon EF 16-35mm f/4L IS USM is a better alternative. The IS version provides up to four stops of stabilization and generally offers superior edge-to-edge sharpness, particularly on high-resolution sensors exceeding 30 megapixels. Furthermore, for those requiring an even wider field of view for extreme architectural work, the Canon EF 11-24mm f/4L USM provides a 126-degree angle of view, though it lacks the ability to use standard screw-on filters. Finally, users of APS-C cameras might find the EF-S 10-18mm or EF-S 10-22mm more useful for true ultra-wide-angle work, as the 17-40mm acts more like a standard zoom on those smaller sensors.
