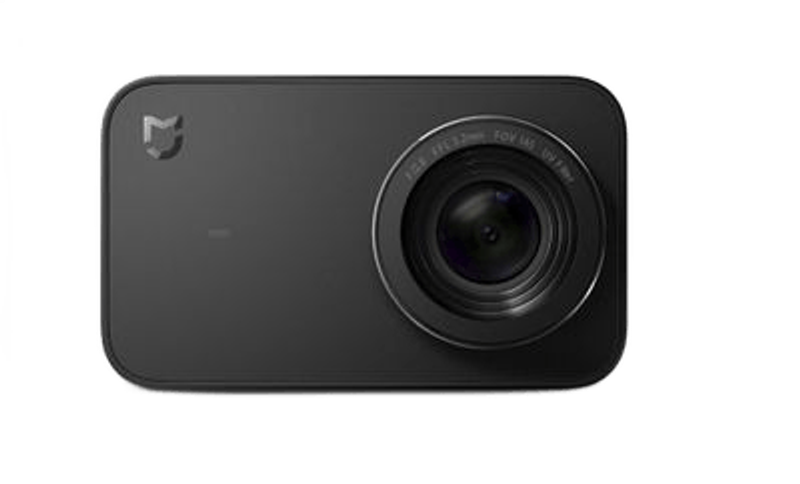

Xiaomi Mi Mijia 4K Action Camera

The Sensor and Optical Architecture of the Xiaomi Mi Mijia 4K Action Camera

The Xiaomi Mi Mijia 4K Action Camera is built around the Sony IMX317 back-illuminated CMOS sensor, a 1/2.5-inch imaging chip designed specifically for high-resolution video capture in compact form factors. This sensor features a native pixel size of 1.62µm, which allows for improved light gathering compared to the smaller 1/3-inch sensors found in entry-level action cameras. Processing is handled by the Ambarella A12S75 chipset, a 28nm CMOS process SoC that integrates an ARM Cortex-A9 CPU and a high-performance Image Signal Processor (ISP). This combination positions the camera as a mid-tier powerhouse, designed for users who require native 4K resolution without the interpolation often found in budget alternatives.

The optical formula consists of a 7-element lens system, which includes an ultra-low dispersion (ED) glass element to minimize chromatic aberration and a specialized IR-cut filter to reduce flare and ghosting. The lens provides a 145-degree field of view (FOV) with a fixed f/2.8 aperture. This wide-angle perspective is optimized for immersive first-person views and landscape capture, providing a deep depth of field that ensures subjects from approximately 0.5 meters to infinity remain in sharp focus. Unlike many cameras in its class that rely on plastic optics, the Mijia uses an all-glass lens assembly to maintain edge-to-edge clarity and thermal stability during long recording sessions.

Image Quality and Processing Technologies

Image quality on the Xiaomi Mi Mijia 4K Action Camera is defined by its ability to capture 8.3-megapixel stills and high-bitrate video. The camera supports the RAW (DNG) format for still photography, allowing photographers to bypass the internal JPEG processing and retain the full dynamic range captured by the Sony sensor. This is particularly useful for recovering highlight detail in high-contrast outdoor environments. In JPEG mode, the ISP applies multi-frame noise reduction and lens distortion correction algorithms. The latter is a critical feature for this camera; it uses software to digitally straighten the "fisheye" effect inherent in a 145-degree lens, producing a more natural rectilinear look for architectural or vlog-style shots.

The camera utilizes a 6-axis Electronic Image Stabilization (EIS) system powered by the Bosch BMI160 IMU (Inertial Measurement Unit). This system combines a 3-axis gyroscope and a 3-axis accelerometer to detect high-frequency vibrations and angular movements. By analyzing these motion vectors in real-time, the ISP crops into the sensor's overscan area to counteract camera shake. While this stabilization is highly effective for walking or cycling, it is important to note that it operates by sampling the frame at high speeds, which requires significant processing overhead. The color science is tuned for a naturalistic palette, avoiding the aggressive over-saturation common in consumer action gear, which provides more flexibility for color grading in post-production.

Build, Interface, and Handling

The physical design of the Xiaomi Mi Mijia 4K Action Camera prioritizes a minimalist, single-button interface. The chassis is constructed from a matte-finish polycarbonate with a textured grip on the sides, weighing approximately 99 grams including the battery. The most prominent feature of the build is the 2.4-inch capacitive touchscreen located on the rear. With a resolution of 960 x 480 pixels, this screen is significantly larger and sharper than the displays found on many competing action cameras, facilitating easier menu navigation and more accurate framing of shots. The touchscreen interface allows for quick adjustments to ISO (ranging from 100 to 3200), shutter speed (up to 1/8000s), and exposure compensation.

Mounting is handled via a standard 1/4-inch tripod thread located on the bottom of the unit. This is a departure from the proprietary mounting "fingers" used by other brands, allowing the Mijia to be mounted directly to tripods, gimbals, and suction mounts without the need for an external frame or cage. The battery compartment and MicroSD slot are located behind a single locking door on the bottom, while the Micro-USB charging and data port is protected by a sliding cover on the side. The camera does not feature a built-in waterproof seal; for underwater use or protection against heavy rain, a dedicated transparent polycarbonate housing is required. The single top-mounted button serves as both the power toggle and the shutter release, with haptic feedback and LED indicators providing status updates when the screen is off to conserve power.

Video Resolutions, Frame Rates, and Codecs

The Xiaomi Mi Mijia 4K Action Camera records video in the H.264/AVC codec, wrapped in an MP4 container. Its headline capability is native 4K UHD (3840 x 2160) recording at 30 frames per second (fps). At this resolution, the camera records at a bitrate of approximately 60Mbps, ensuring sufficient data density for detailed textures in foliage or water. For users requiring higher frame rates for motion analysis or slow-motion effects, the camera offers several sub-4K modes:

• 2.5K (2560 x 1440): Records at 30 fps, providing a balance between resolution and file size.
• 1080p (1920 x 1080): Supports 100 fps for 4x slow motion, 60 fps for standard fluid motion, and 30 fps for maximum battery efficiency.
• 720p (1280 x 720): Supports up to 200 fps, enabling 8x slow-motion playback when conformed to a 25 fps timeline.

It is a critical technical distinction that the 6-axis EIS is available only at resolutions up to 1080p at 60 fps. When recording in 4K, the stabilization system is disabled because the ISP requires the full sensor readout without the crop margin necessary for electronic leveling. Recording limits are primarily dictated by the file system (FAT32), which splits files at the 4GB mark, though the camera continues recording seamlessly across multiple files. Thermal management is efficient for its size, but in high-ambient temperatures, the camera may throttle bitrates after extended 4K sessions to protect the Ambarella processor.

On the Shoot: Real-World Scenarios in India

In a Goa travel shoot, the Xiaomi Mi Mijia 4K Action Camera excels as a secondary "B-roll" device. When mounted to the handlebars of a scooter traversing the coastal roads of Vagator or Anjuna, the 145-degree lens captures the expansive horizon and the rider's perspective simultaneously. In the bright, harsh midday sun of the Konkan coast, the f/2.8 lens and 1/8000s shutter speed prevent overexposure, while the ED glass element helps manage the high-contrast reflections off the Arabian Sea. The 1080p 100fps mode is particularly useful here for capturing the spray of water during a jet-ski session, allowing for smooth slow-motion playback of the waves.

During a Bengaluru wedding reception, the camera serves a different purpose as a discreet "set-and-forget" wide-angle angle. Placed near the DJ console or the buffet area using a small friction arm, its compact 99g weight allows it to be tucked into corners where a full-sized DSLR would be intrusive. The 2.4-inch screen allows the operator to quickly verify that the frame covers the entire dance floor. Because the camera can be powered via its Micro-USB port, it can be connected to a power bank to record the entire three-hour event in 1080p without a battery swap, providing a valuable safety angle for the final edit.

In a Mumbai studio product session, the camera is often used for "behind-the-scenes" (BTS) time-lapse photography. The Mijia features a dedicated time-lapse video mode that automatically stitches frames into a video file at intervals ranging from 0.5 seconds to 60 seconds. Set up on a tripod in a corner of a cramped studio in Lower Parel, the 145-degree FOV ensures the entire production crew and lighting setup are visible in the frame. The ability to output a finished video file directly from the camera saves hours of post-production time compared to manual intervalometer sequences.

Compatibility and Essential Pairings

To maximize the utility of the Xiaomi Mi Mijia 4K Action Camera, specific accessory choices are required. For storage, the camera requires a MicroSD card with a U3 (UHS Speed Class 3) rating or higher. This is non-negotiable for 4K recording; slower Class 10 or U1 cards will result in dropped frames or "write error" messages due to the 60Mbps data stream. The camera supports cards up to 64GB in capacity. The 1450mAh battery is proprietary to this model and provides approximately 120 minutes of 4K recording or 180 minutes of 1080p recording under optimal conditions.

For stabilization in 4K mode, pairing the camera with a 3-axis handheld gimbal is recommended, as the internal EIS is inactive at this resolution. The camera is compatible with most universal action camera gimbals that utilize a 1/4-inch screw or a standard tension clamp. For audio, the internal dual microphones provide basic stereo sound, but for professional use, an external audio recorder is advised, as the camera lacks a dedicated 3.5mm mic input. Connectivity is supported via 2.4GHz Wi-Fi and Bluetooth 4.1, allowing the camera to pair with the Mi Home or Mi Action Camera app for remote monitoring and file transfer to mobile devices.

Limitations and Alternative Recommendations

While the Xiaomi Mi Mijia 4K Action Camera is a capable tool, it has distinct limitations that may necessitate a different equipment choice. The most significant limitation is its low-light performance. The 1/2.5-inch sensor, while large for its class, will produce significant luminance noise when the ISO climbs above 800. For shoots in dimly lit venues or night-time street photography, a mirrorless camera with a Micro Four Thirds or APS-C sensor would be more appropriate. Additionally, the lack of 4K stabilization means that for high-impact sports like mountain biking or off-roading where a gimbal is impractical, a newer action camera with "Hypersmooth" or "RockSteady" style stabilization would be a better fit.

The 64GB MicroSD card limit is another constraint for long-form documentary work. If a shoot requires eight hours of continuous high-bitrate recording without card swaps, a camera that supports 256GB or 512GB cards is necessary. Furthermore, the fixed 145-degree lens means there is no optical zoom; if the shoot requires tight "punch-in" shots of distant subjects, a compact camera with a zoom lens or a dedicated camcorder should be chosen instead. Finally, the lack of native waterproofing means this camera is not suitable for surfing or diving unless the additional waterproof housing is secured, which can slightly muffle the internal audio and increase the risk of lens fogging in humid Indian climates.
