SJCAM SJ8 Pro Real 4k 60fps Water Resistant Action Camera

The Architecture of the SJCAM SJ8 Pro

The SJCAM SJ8 Pro Real 4k 60fps Water Resistant Action Camera is the flagship model within the SJ8 series, positioned as a high-performance tool for capturing high-frame-rate motion. At its core, the device utilizes the Ambarella H22 S85 chipset, a quad-core processor designed specifically to handle the high data throughput required for 4K video at 60 frames per second. This processor is paired with the Sony IMX377 sensor, a 1/2.3-inch back-illuminated CMOS sensor with a 12-megapixel effective resolution. Unlike many entry-level action cameras that use interpolation to reach 4K, this combination provides native, hardware-level 4K resolution. The sensor features a pixel size of 1.55μm, which is larger than many standard action camera sensors, allowing for better light gathering in high-contrast environments. The optical path is defined by a 7-layer glass lens assembly, which includes two aspherical lens elements. This 7G configuration is designed to minimize chromatic aberration and maintain edge-to-edge sharpness across the 170-degree wide-angle field of view. The camera is intended for users who require high-bitrate recording and the flexibility of high frame rates for slow-motion playback in post-production.

Image Quality and Optical Performance

The image quality of the SJCAM SJ8 Pro is defined by its ability to resolve fine detail without the heavy over-sharpening often found in smaller-sensor devices. The Sony IMX377 sensor excels at capturing a wide dynamic range, particularly in the highlights, which is critical for outdoor action photography where sky and ground exposures vary significantly. The 12MP resolution allows for a maximum photo size of 4000 x 3000 pixels, and the camera supports RAW (DNG) output. This is a significant feature for photographers who need to recover shadow detail or adjust white balance in post-processing without the artifacts associated with JPEG compression. The 7G lens system provides a fixed aperture of f/2.8, balancing a deep depth of field—essential for keeping both the foreground and background in focus during action—with enough light transmission for overcast conditions. The 170-degree field of view can be adjusted via software to "Medium" or "Narrow" settings, which uses a center-crop of the sensor to reduce the fisheye distortion typical of ultra-wide lenses. Furthermore, the camera includes a built-in distortion correction algorithm that can be toggled to straighten horizons in-camera, though this does result in a slight reduction in the overall field of view.

Build, Handling, and Interface

The physical construction of the SJCAM SJ8 Pro is centered around a dual-screen interface. The primary display is a 2.33-inch IPS Retina touch screen located on the rear. This screen provides a high pixel density for clear previewing and uses a capacitive touch interface that remains responsive even in humid conditions. On the front, a 0.96-inch OLED status screen displays critical shooting information such as current resolution, frame rate, battery level, and recording time, allowing the operator to verify settings without turning the camera around. The body measures 62.5mm x 41mm x 28.8mm and weighs approximately 85 grams without the battery. It features a standard 1/4-inch tripod thread on the bottom, allowing it to be mounted directly to many supports without a frame. The side of the camera houses a USB Type-C port, which serves three functions: high-speed data transfer (up to 40MB/s), charging, and external microphone input. The battery compartment is located on the bottom and houses a 1200mAh removable lithium-ion battery. The tactile feedback is limited to a single shutter/power button on the top, with all other navigation handled via the touch screen, which utilizes a gesture-based UI for quick access to mode switching and the gallery.

Video Capabilities and Codec Performance

The primary technical draw of the SJCAM SJ8 Pro is its video output. It records native 4K (3840 x 2160) at 60, 50, 30, 25, and 24fps. For high-speed cinematography, it offers 1080p recording at up to 120fps and 720p at up to 240fps, enabling 8x slow-motion playback when conformed to a 30fps timeline. The camera supports both H.264 (AVC) and H.265 (HEVC) video codecs. The H.265 option is particularly useful for 4K/60fps recording as it maintains high visual fidelity at lower bitrates, which helps in managing file sizes and reducing the thermal load on the processor. Electronic Image Stabilization (EIS) is provided by a 6-axis gyroscope (Bosch BMI160), which compensates for pitch, roll, and yaw. It is important to note that EIS is available at 4K up to 30fps, but is generally disabled at 4K/60fps due to the processing overhead required for the higher frame rate. The maximum video bitrate reaches up to 60Mbps, ensuring that fast-moving subjects do not suffer from excessive macroblocking. The camera also features a "Car Mode" for dashcam use and a "Lapse Video" mode that compiles time-lapse sequences into a finished video file in-camera, with intervals ranging from 0.5 seconds to 60 seconds.

On the Shoot: Practical Scenarios in India

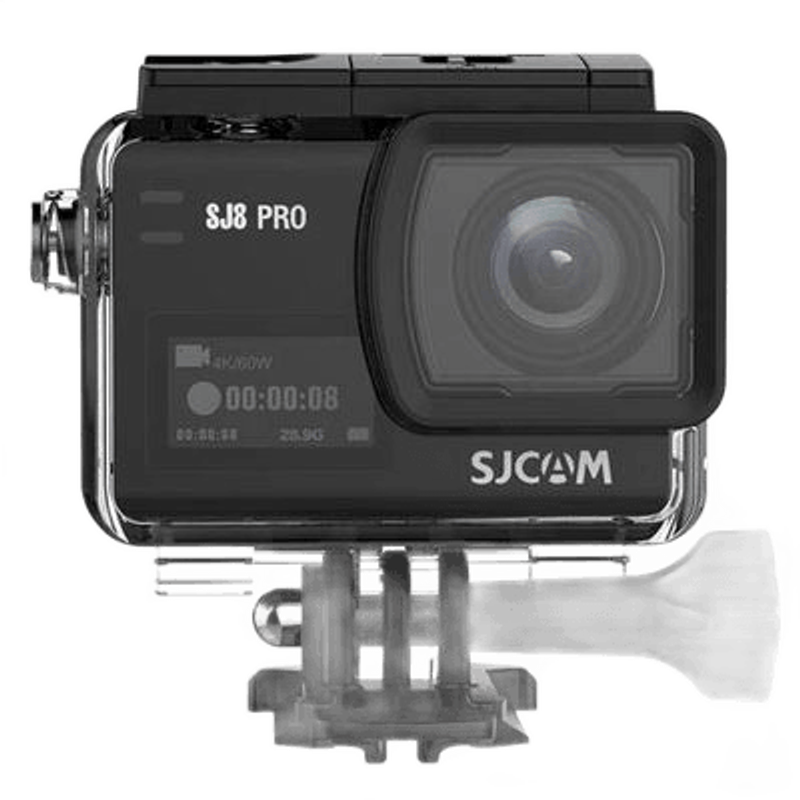

In a travel shoot across the coastal terrain of Goa, the SJCAM SJ8 Pro is typically deployed within its 30-meter waterproof housing. When recording surfing or jet-skiing at Calangute, the 4K/60fps capability allows the creator to capture the spray of water with high temporal resolution, which can then be slowed down in post-production to emphasize the motion. The 5GHz Wi-Fi band is a technical advantage here; in crowded tourist areas where the 2.4GHz spectrum is saturated with interference from mobile hotspots, the 5GHz connection allows for a stable live preview and faster file transfers to a smartphone via the SJCAM Zone app. The 170-degree lens is wide enough to capture the rider and the board while mounted on the nose of the surfboard.

During a Bengaluru wedding reception, the camera serves effectively as a "crash cam" or a secondary POV angle. Mounted on a gimbal or a small friction arm near the DJ console or the dance floor, it can be set to 1080p at 120fps to capture the high-energy movements of the guests. In the mixed lighting of a banquet hall, the Sony IMX377 sensor's 1.55μm pixels help manage the noise in the shadows better than smaller-sensor alternatives. The rear touch screen allows the videographer to quickly toggle the "Low Light" mode, which automatically adjusts the frame rate to maintain exposure in dim environments. The external microphone support via the USB-C port is critical here, allowing for a direct line-in from the soundboard or a dedicated shotgun mic to capture clean audio over the ambient noise of the crowd.

In a Mumbai studio for a product session, the SJCAM SJ8 Pro is often used for behind-the-scenes (BTS) time-lapses. Because the camera supports external power via USB-C, it can be plugged into a wall adapter to record for several hours without battery swaps. The "Lapse Video" mode is ideal for capturing a 10-hour set build and condensing it into a 60-second 4K clip. The small footprint allows it to be tucked into corners of the studio where a full-sized DSLR would not fit. The RAW photo capability is utilized here to take wide-angle reference shots of the lighting setup, which can then be color-matched to the primary cinema cameras in the edit suite.

Compatibility and Essential Pairings

To maximize the performance of the SJCAM SJ8 Pro, specific hardware pairings are required. For media, the camera requires a microSD card with at least a U3 or V30 speed rating. Because 4K/60fps generates a high volume of data, cards with slower write speeds will cause the recording to buffer or stop unexpectedly. The camera supports cards up to 128GB. For audio, the SJCAM-specific Type-C external microphone is the only compatible direct-plug option; standard USB-C to 3.5mm adapters for smartphones generally do not work due to different pin configurations. The camera uses the standard action camera two-prong mounting system, making it compatible with a vast ecosystem of chest harnesses, head straps, and suction mounts. For stabilized footage at 4K/60fps (where internal EIS is unavailable), pairing the camera with a 3-axis handheld gimbal is recommended. The 1200mAh battery provides approximately 90 minutes of recording time at 4K/30fps with the screen off, but for 4K/60fps, this duration drops to roughly 60-70 minutes, making spare batteries or a dual-slot external charger essential for full-day shoots.

Limitations and Alternative Considerations

While the SJCAM SJ8 Pro is a robust tool, it has specific technical limitations. The 1/2.3-inch sensor, while high-performing for its class, cannot compete with 1-inch sensor cameras or DSLRs in extremely low-light conditions. In very dark environments, digital noise becomes prominent, and the fixed f/2.8 aperture cannot be opened further to compensate. The internal microphones are susceptible to wind noise and provide a mono-heavy soundstage, making an external audio solution necessary for professional results. Users requiring optical zoom will find the 8x digital zoom insufficient, as it simply crops the sensor and reduces resolution. If a project requires 10-bit color depth or Log gamma profiles for heavy color grading, this camera—which records in 8-bit—may not meet those specific requirements. For those needing integrated GPS for data overlays (like speed or altitude) without using a smartphone bridge, or for those requiring 4K stabilization at 60fps, a higher-tier action camera or a dedicated cinema camera with a larger sensor would be a more appropriate choice.
