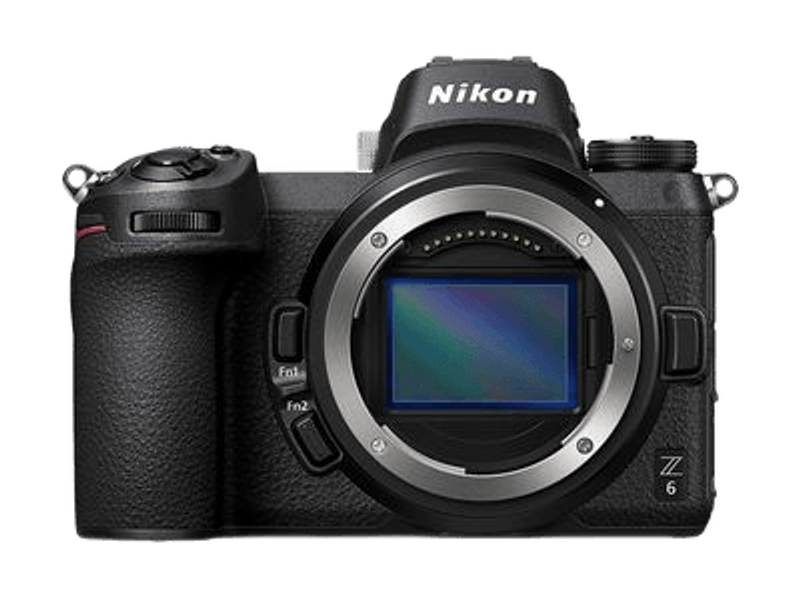

Z6 FX-Format Mirrorless Camera Body

The Architecture of the Nikon Z6 FX-Format Mirrorless Camera Body

The Nikon Z6 FX-Format Mirrorless Camera Body represents a fundamental shift in Nikon’s optical design, built around the large-diameter Z-mount. This mount features an inner diameter of 55mm and a short flange focal distance of 16mm, which allows for lens designs that were physically impossible under the older F-mount system. At its core, the camera utilizes a 24.5-megapixel backside-illuminated (BSI) CMOS sensor paired with the EXPEED 6 image-processing engine. This combination is designed to balance resolution, speed, and low-light performance, positioning the camera as the versatile, high-speed sibling to the high-resolution Z7. While the Z7 targets landscape and studio photographers requiring maximum pixel count, the Z6 is engineered for photojournalists, event photographers, and videographers who prioritize frame rates and high ISO cleanliness.

The sensor includes a focal-plane phase-detection AF system, which is integrated directly into the pixel structure. This allows the camera to maintain a slim profile while providing the speed of phase-detection autofocus that was previously the domain of DSLRs. The output is a 14-bit RAW file with significant latitude for post-processing. In the manufacturer’s lineup, this body serves as the entry point into full-frame mirrorless professional work, offering a bridge for users transitioning from the D750 or D780 who require a more compact form factor without sacrificing the "Nikon feel" of the physical grip and menu interface.

Image Quality and Sensor Technology

The image quality of the Nikon Z6 is defined by its Back-Side Illuminated (BSI) sensor architecture. By placing the wiring layers behind the photodiodes rather than in front of them, the sensor maximizes light-gathering efficiency across the entire 35.9 x 23.9 mm surface area. This results in an expansive native ISO range of 100 to 51,200, which can be further extended down to ISO 50 and up to ISO 204,800. The EXPEED 6 processor introduces sophisticated noise reduction algorithms that maintain edge definition even at high sensitivities, making it particularly effective for handheld shooting in environments with limited ambient light.

Color reproduction follows Nikon’s established science, emphasizing natural skin tones and accurate primary colors. The camera includes "Mid-range Sharpening" within its Picture Control settings, which allows for finer control over texture and detail without introducing the haloing effects often associated with standard sharpening tools. For photographers working in challenging high-contrast scenes, the sensor provides approximately 14 stops of dynamic range at base ISO, allowing for significant shadow recovery and highlight preservation in post-production. The inclusion of diffraction compensation technology also ensures that images remain sharp even when stopping down to small apertures like f/11 or f/16, where optical physics would typically begin to soften the image.

Autofocus Performance and Ergonomic Handling

The Nikon Z6 utilizes a 273-point hybrid autofocus system that covers approximately 90% of the frame both horizontally and vertically. This wide coverage allows for tracking subjects to the very edges of the composition, a significant advantage over traditional DSLR AF arrays which are often clustered in the center. The system automatically switches between focal-plane phase-detect AF and contrast-detect AF depending on the scene and lighting conditions. With firmware updates, the camera supports Eye-Detection AF for both humans and animals, which locks onto the subject's eye and maintains focus even as they move through the frame. The AF system is rated to operate down to -4 EV, or -6 EV when using the dedicated "Low Light AF" mode, enabling focus acquisition in near-darkness.

Handling is centered around a deep, ergonomic grip that provides a secure hold even when using heavy telephoto lenses via an adapter. The Electronic Viewfinder (EVF) is a 3.6-million-dot OLED panel with 0.8x magnification and a 60fps refresh rate. It utilizes Nikon’s proprietary optics, including aspherical elements and a fluorine coating, to provide a clear, lag-free view that closely mimics an optical finder while providing real-time exposure previews. The 3.2-inch, 2.1-million-dot tilting touchscreen allows for intuitive menu navigation and touch-to-focus capabilities. The body itself is constructed from magnesium alloy and features extensive weather sealing, protecting the internal electronics from dust and moisture in professional environments.

Professional Video Capabilities and Limitations

The Nikon Z6 is a highly capable video tool, offering full-frame 4K UHD (3840 x 2160) recording at 24, 25, and 30p. Unlike many of its contemporaries, it performs a full pixel readout from the entire width of the sensor, which means there is no crop factor when shooting in 4K, and the resulting footage is oversampled for increased sharpness and reduced moiré. For high-speed cinematography, the camera can record Full HD 1080p at up to 120p, allowing for 4x or 5x slow-motion playback. It supports internal 8-bit recording in H.264/MPEG-4 AVC, but its true potential is unlocked via the HDMI output.

When connected to an external recorder, the camera can output 10-bit N-Log or HDR (HLG) footage, providing the dynamic range necessary for professional color grading. It also offers the option (via a paid service upgrade) to output 12-bit ProRes RAW to compatible Atomos recorders. The in-body 5-axis sensor-shift Image Stabilization (IBIS) provides up to 5 stops of compensation, which is critical for stabilizing handheld video work. However, there are honest limitations: the internal recording is limited to 8-bit, which may not satisfy high-end color grading requirements without an external monitor. Additionally, while the autofocus is excellent for video, it may occasionally hunt in very low-contrast scenes compared to dedicated cinema cameras.

Performance on the Shoot: Indian Scenarios

In a Bengaluru wedding reception, the Nikon Z6 excels due to its high ISO performance and silent shutter mode. Reception halls in Bengaluru often feature complex, low-intensity LED lighting that can be a challenge for lesser sensors. The Z6 allows the photographer to push the ISO to 6400 or 12800 while maintaining clean files for large-scale album prints. The silent photography mode is invaluable during quiet moments of a ceremony, allowing for candid captures without the distracting "clack" of a mechanical shutter. The 5-axis IBIS ensures that even when using a non-stabilized prime lens like a 50mm or 85mm, the photographer can drop the shutter speed to 1/15th of a second to soak up ambient light without introducing camera shake.

For a travel shoot in Goa, the camera’s weather sealing and compact size are its primary assets. Whether shooting the humid, salty air of the coastline or the dusty interior roads, the magnesium alloy chassis provides the necessary durability. The tilting screen is particularly useful for low-angle shots of architecture in Old Goa or capturing the horizon from a low tripod position on the beach. The 24.5MP resolution is the "sweet spot" for travel, providing enough detail for high-quality editorial submissions while keeping file sizes manageable for quick transfers over the built-in Wi-Fi and Bluetooth to a mobile device for social media updates.

In a Mumbai studio product session, the camera’s color accuracy and tethering capabilities come to the forefront. When shooting high-end fashion or jewelry, the EXPEED 6 processor ensures that the subtle textures of fabrics and the glint of metals are rendered with precision. The USB-C port allows for fast tethered shooting into software like Capture One or Adobe Lightroom, enabling the photographer and client to review high-resolution previews instantly. The 273 AF points allow for precise focus placement on small product details, and the focus peaking feature in manual mode helps ensure that the critical plane of focus is exactly where it needs to be.

Compatibility, Media, and Essential Pairings

The Nikon Z6 is designed to be the center of a modern imaging ecosystem. It uses the EN-EL15b rechargeable Li-ion battery, but it is also compatible with the EN-EL15a and EN-EL15 batteries used in Nikon DSLRs (though in-camera charging via USB is only supported with the 'b' and 'c' versions). For storage, the camera features a single card slot that supports XQD cards and, with the latest firmware, CFexpress (Type B) cards. These cards offer significantly faster read/write speeds than traditional SD cards, which is necessary for clearing the buffer during 12 fps continuous shooting and for handling high-bitrate video.

While the native Z-mount lenses, such as the 24-70mm f/4 S or the 50mm f/1.8 S, offer the best optical performance and fastest AF speeds, the FTZ Mount Adapter is an essential accessory. This adapter allows for the seamless use of over 360 F-mount Nikkor lenses, maintaining full AF/AE functionality for AF-S, AF-P, and AF-I lenses. This makes the Z6 an ideal choice for photographers who have a significant investment in "Gold Ring" Nikon glass. For video-centric setups, pairing the Z6 with an Atomos Ninja V recorder is recommended to take advantage of the 10-bit N-Log output and the ProRes RAW capability.

Who Should Choose Something Else

While the Nikon Z6 is a versatile powerhouse, it is not the correct tool for every specific niche. Professional sports and wildlife photographers who require deep buffers and the absolute fastest subject tracking might find the Z6’s buffer capacity limiting during extended 12 fps bursts; for those users, the Nikon Z9 or a high-end DSLR like the D6 would be more appropriate. Similarly, landscape and commercial photographers who regularly produce massive gallery prints or need to crop aggressively will find the 45.7MP resolution of the Nikon Z7 or Z8 more suitable for their requirements.

The single card slot is a critical consideration for "no-fail" event photographers, such as those shooting high-stakes weddings where a real-time backup is mandatory. For these professionals, the Nikon Z6 II, which adds a second SD card slot and dual EXPEED 6 processors, is the logical step up. Finally, if the primary goal is ultra-compact travel without the need for a full-frame sensor's depth of field, a cropped-sensor (DX) camera like the Nikon Z50 or Z fc may offer a lighter footprint for long days of walking.

The Nikon Z6 is a full-frame (FX), Z mount mirrorless camera with excellent high-sensitivity performance and video features.


Features

Sensor: 24.5MP FX-format CMOS sensor.

FPS: Up to 12 fps Low-speed continuous: 1 to 5 fps High-speed continuous: 5.5 fps High-speed continuous (extended): 12 fps (14-bit NEF/RAW: 9 fps).

Autofocus: Hybrid phase-detection/contrast AF with AF assist.

Battery used: One EN-EL15b rechargeable Li-ion battery; EN-EL15a/EN-EL15 can also be used, but note that you may not be able to take as many pictures on a single charge and that charging AC adapter can be used to charge EN-EL15b batteries only


Media storage: 1 XQD slot
