D 5500

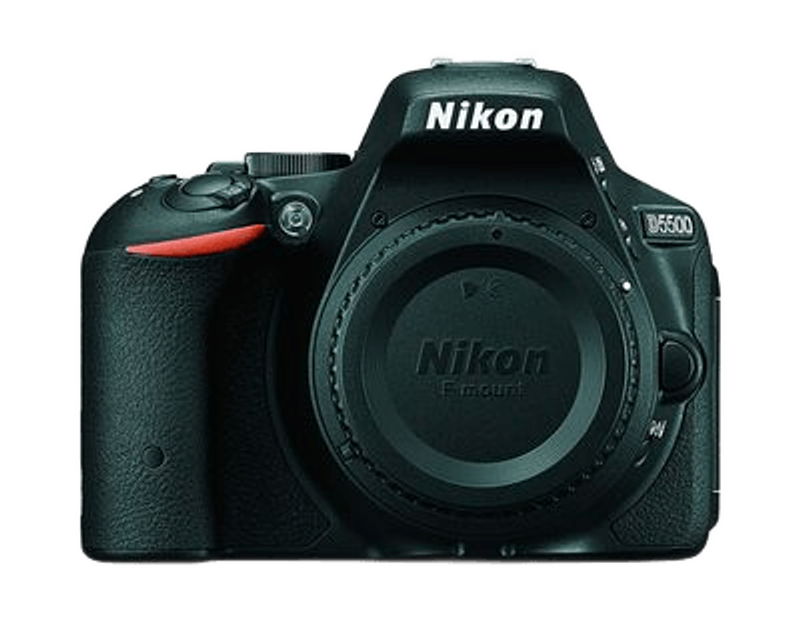

The Nikon D5500 DX-Format Digital SLR Body

The Nikon D5500 is a mid-range DX-format digital SLR that occupies a specific niche between the entry-level D3000 series and the enthusiast-grade D7000 series. It features a 24.2-megapixel CMOS sensor measuring 23.5mm x 15.6mm. A defining characteristic of this sensor is the omission of an optical low-pass filter (OLPF), a design choice intended to maximize the resolving power of the 24.2 million pixels. By removing the filter that traditionally blurs fine patterns to prevent moiré, this camera captures higher levels of fine detail and texture, provided the lens used is capable of projecting that resolution. The internal architecture is driven by the EXPEED 4 image-processing engine, which manages the data throughput required for high-speed continuous shooting and Full HD video recording. This model was the first in the Nikon DSLR lineup to incorporate a touchscreen interface, integrated into a 3.2-inch vari-angle LCD monitor. The body itself utilizes a carbon-fiber monocoque structure, which eliminates the need for a traditional heavy chassis, resulting in a weight of approximately 420 grams (body only) while maintaining structural rigidity.

Image Quality and Sensor Performance

The image quality of the Nikon D5500 is defined by its ability to produce high-resolution files with a native ISO range of 100 to 25,600. Unlike previous generations where the high-end ISO settings were "expanded" or "boosted," the EXPEED 4 processor allows the D5500 to treat ISO 25,600 as a standard setting, offering improved noise reduction algorithms that preserve color saturation even as gain increases. The 24.2MP sensor outputs images at a maximum resolution of 6000 x 4000 pixels. Users can choose between 12-bit and 14-bit compressed RAW (NEF) files, with the 14-bit option providing a wider tonal range and more data for recovering shadow detail in post-production. The lack of an OLPF is particularly noticeable when shooting high-frequency details like architectural textures or fabric weaves, where the sharpness at the pixel level is significantly higher than filtered sensors of the same resolution. The EXPEED 4 engine also facilitates a "Flat" Picture Control profile, which produces a low-contrast image with a linear tonal curve, preserving the maximum amount of dynamic range for photographers who intend to perform extensive color grading or retouching. The camera’s Active D-Lighting system can be adjusted across several levels (Low, Normal, High, Extra High, and Auto) to manage high-contrast scenes by localized tone mapping within the JPEG processing pipeline.

Autofocus and Handling

The Nikon D5500 utilizes the Multi-CAM 4800DX autofocus sensor module, which provides 39 distinct AF points. Within this array, 9 points are cross-type sensors located in the center of the frame, designed to detect contrast in both horizontal and vertical planes for increased accuracy. The system supports several AF-area modes, including Single-point AF, Dynamic-area AF (9, 21, or 39 points), 3D-tracking, and Auto-area AF. The 3D-tracking mode is particularly notable as it leverages the 2,016-pixel RGB sensor from the Scene Recognition System to track the color and brightness of a subject as it moves across the frame, shifting the active AF point automatically. In Live View mode, the camera switches to a contrast-detect AF system. While slower than the phase-detect system used through the viewfinder, the D5500 improves on its predecessors with a "Face-priority AF" and "Subject-tracking AF" that are more responsive. Handling is significantly influenced by the deep grip made possible by the monocoque design, allowing for a secure hold even when using heavier telephoto lenses. The 3.2-inch touchscreen introduces "Touch Fn," a feature that allows the user to assign a function—such as AF point selection or ISO adjustment—to the touchscreen, which can then be operated by a thumb while the eye is still at the viewfinder. The vari-angle screen rotates 180 degrees and tilts, facilitating high-angle shots over crowds or low-angle macro work.

Video Capability and Specifications

For motion capture, the Nikon D5500 records Full HD 1080p video at frame rates of 60p, 50p, 30p, 25p, and 24p. The inclusion of 60p allows for smooth motion and the ability to produce 2x slow-motion sequences when played back at 30p. Video is recorded in the MOV format using H.264/MPEG-4 Advanced Video Coding, with a maximum recording time of 29 minutes and 59 seconds per clip (or 20 minutes at the highest quality setting). The camera includes a built-in stereo microphone with adjustable sensitivity, but it also features a 3.5mm stereo mini-pin jack for external microphones, which is essential for professional-grade audio. A significant feature for videographers is the "Flat" Picture Control, which prevents highlights from clipping and shadows from crushing, providing a better starting point for post-production. The camera also supports uncompressed video output via HDMI, allowing the feed to be recorded to an external recorder without the compression artifacts associated with internal SD card recording. However, it is important to note that the D5500 does not offer a headphone jack for real-time audio monitoring, and the aperture cannot be adjusted during Live View for most G-type lenses; it must be set before entering the video mode.

On the Shoot: Practical Scenarios

In a wedding reception environment in Bengaluru, the Nikon D5500 benefits from its high ISO performance and the flexibility of the vari-angle screen. When shooting in dimly lit banquet halls, the ability to push the ISO to 3200 or 6400 while maintaining usable 24.2MP files allows the photographer to maintain fast shutter speeds without always relying on flash. The 39-point AF system, specifically the 3D-tracking mode, is effective for following the movement of the couple during the ceremony. The touchscreen allows for silent AF point selection, which is useful during quiet moments of the ritual where the clicking of a command dial might be intrusive.

For a travel shoot in Goa, the primary advantage is the camera's weight and integrated Wi-Fi. At 420 grams, the body does not become a burden during long treks or beach walks. The built-in Wi-Fi allows for the immediate transfer of JPEGs to a smartphone via the Wireless Mobile Utility app, facilitating quick backups or sharing. When shooting landscapes at the Dudhsagar Falls, the lack of an OLPF ensures that the fine spray of water and the textures of the surrounding rock faces are captured with high micro-contrast. The vari-angle screen proves useful here for composing shots from ground level to emphasize the height of the falls without requiring the photographer to lie on the ground.

In a Mumbai-based studio session for a product shoot, the 24.2MP resolution provides enough detail for large-format prints or high-resolution digital catalogs. Using the camera on a tripod, the touchscreen can be used to zoom in on the Live View image to 100% to verify critical focus on small product details. The "Flat" Picture Control is particularly useful in a controlled lighting environment, as it allows the photographer to see the full range of detail in the highlights of reflective surfaces (like jewelry or glassware) and ensures that the RAW files contain the maximum possible data for retouching.

Compatibility and Pairings

The Nikon D5500 uses the Nikon F-mount. Because it does not have an internal autofocus motor, it requires AF-S or AF-P lenses to utilize autofocus. Older AF-D lenses will mount and meter but will require manual focusing.

• Lenses: For general use, the AF-S DX NIKKOR 18-140mm f/3.5-5.6G ED VR provides a versatile range. For low-light and portraiture, the AF-S DX NIKKOR 35mm f/1.8G is a standard pairing that takes advantage of the sensor's sharpness. For wide-angle landscape work, the AF-P DX NIKKOR 10-20mm f/4.5-5.6G VR is fully compatible.
• Batteries and Power: The camera uses the EN-EL14a rechargeable Li-ion battery. Under CIPA standards, it is rated for approximately 820 shots per charge, though this decreases significantly when using Wi-Fi or Live View extensively.
• Media: The D5500 has a single SD card slot. It is compatible with SD, SDHC, and SDXC cards and supports the UHS-I bus interface. For 1080/60p video, a Class 10 or UHS-1 Speed Class 3 card is recommended to prevent recording interruptions.
• Accessories: The camera is compatible with the Nikon Creative Lighting System (CLS) when using external Speedlights like the SB-700 or SB-5000, though the built-in flash cannot act as a commander for wireless TTL control. It also supports the MC-DC2 remote cord and WR-R10/WR-T10 wireless remotes.

Limitations and Alternative Considerations

While the Nikon D5500 is a highly capable DX-format camera, it has specific limitations that may necessitate choosing a different body. The most significant limitation for professional cinema work is the lack of 4K video resolution and the absence of a headphone jack for audio monitoring. If 4K recording is a requirement, the Nikon D7500 or the mirrorless Z-series would be more appropriate choices. The D5500 also lacks weather sealing; its carbon-fiber monocoque body is durable but not rated for use in heavy rain or extremely dusty environments. For photographers working in harsh outdoor conditions, the D7200 or D500 offer superior environmental protection.

The control scheme is also simplified compared to higher-end models. It features a single command dial, which means that in Manual mode, the user must hold a button to toggle between adjusting shutter speed and aperture. Enthusiasts who require dual command dials for faster tactile control should look toward the D7000-series. Furthermore, the 39-point AF system, while robust, does not cover as much of the frame as the 51-point or 153-point systems found in the D7500 or D500, making it slightly less effective for high-speed sports or erratic wildlife photography. Finally, the lack of an internal focus motor limits the autofocus compatibility to newer NIKKOR lenses, which may be a drawback for those who own a collection of vintage AF-D glass.

Share Your Creative Touch

Taking amazing pictures and sharing them have become easier than ever. The D5500 inherits a range of advanced imaging and creative technologies, and combines them with the convenience of a touch screen, Wi-Fi® connectivity and slim, lightweight body. At a touch, it lets you take vibrant, creative pictures and share them instantly via your smart device. Whether you’re traveling to an exotic destination or out partying at the weekend, with the D5500 you’ll be able to capture each moment in style – and show your friends and family what they’re missing.
