MT055XPRO3 tripod legs

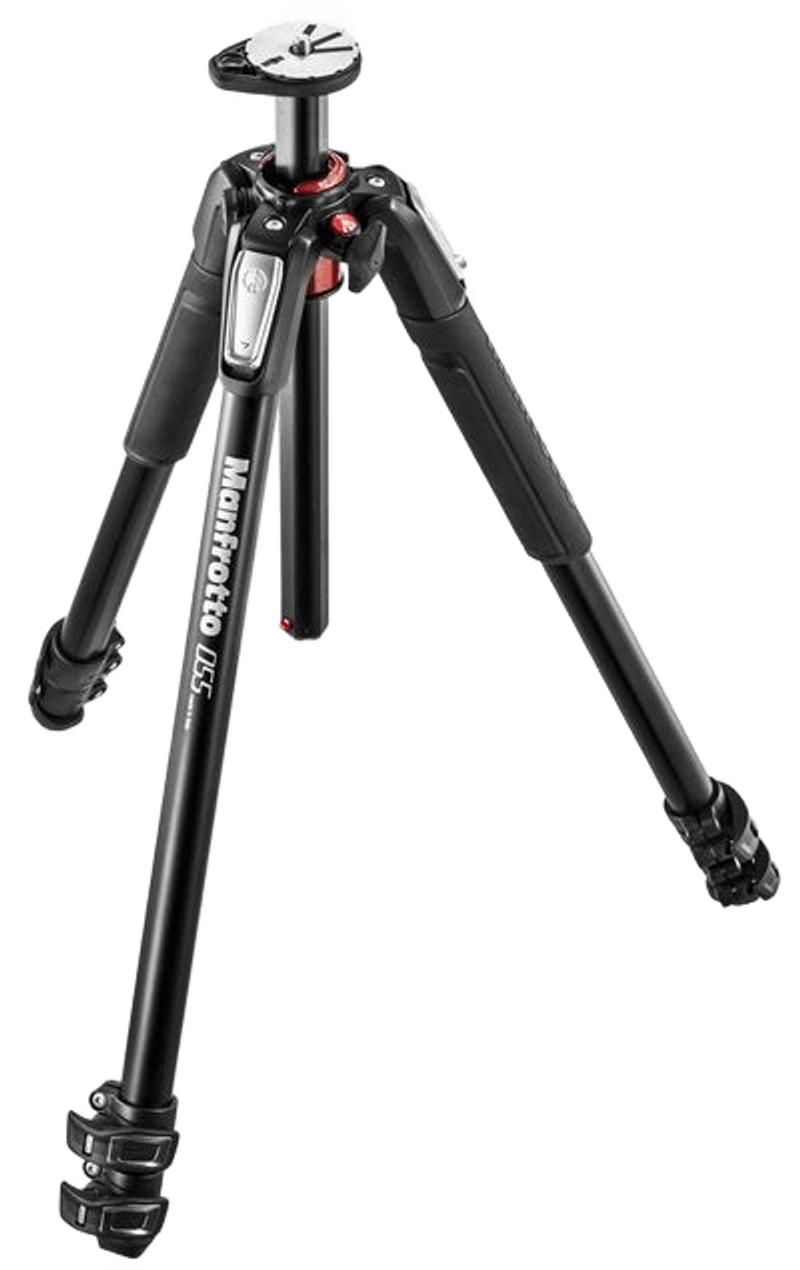

The Engineering of the Manfrotto MT055XPRO3 055 Aluminium 3-Section Tripod

The Manfrotto MT055XPRO3 055 Aluminium 3-Section Tripod with Horizontal Column represents the core of the Italian manufacturer’s professional support line. It is positioned as the high-performance successor to the industry-standard 055XPROB, engineered specifically for photographers and videographers who require a balance between absolute rigidity and functional versatility. Built from high-grade aluminium, this tripod is designed to support a safety payload of up to 9 kg, making it capable of handling full-frame DSLRs or mirrorless systems equipped with heavy telephoto lenses, battery grips, and external recorders. Unlike the more compact 190 series, the 055 series utilizes larger leg tube diameters to minimize micro-vibrations, which is critical for high-resolution sensors exceeding 45 megapixels where even the slightest movement can degrade image sharpness.

At the center of its design is the 90-degree column mechanism, a feature that allows the center column to be extended vertically as normal or swung into a horizontal orientation. This transition is achieved without removing the head or disassembling the column, making it a highly efficient tool for macro photography, low-angle shooting, and top-down product videography. The tripod reaches a maximum height of 170 cm with the center column extended and 140 cm with the column down. When the column is used in its horizontal position or when the legs are set to their widest angle, the minimum shooting height drops to just 9 cm from the ground. This range of motion makes the Manfrotto MT055XPRO3 055 Aluminium 3-Section Tripod with Horizontal Column a primary choice for architectural photographers, studio professionals, and nature photographers who need to transition from eye-level landscapes to ground-level detail shots rapidly.

Stability and Vibration Management

The primary function of the Manfrotto MT055XPRO3 055 Aluminium 3-Section Tripod with Horizontal Column is the elimination of camera shake, a task it performs through a combination of material density and mechanical locking strength. The aluminium leg tubes provide a high degree of torsional rigidity, ensuring that the frame does not twist or flex under the weight of an offset load, such as a camera mounted on the horizontal column. This rigidity is essential when shooting long exposures, where shutter speeds might extend into several minutes. The 3-section design is a deliberate choice for stability; by having only two joints per leg, the tripod maintains thicker tube diameters throughout its height compared to 4-section or 5-section travel tripods. The top leg section has a diameter of 30 mm, followed by 26 mm and 22.5 mm for the subsequent sections, providing a solid foundation that resists wind-induced vibrations and floor-borne tremors.

The impact of this stability is most visible when using long focal lengths. When shooting at 200mm or 400mm, the slightest movement is magnified. The 055 chassis is designed to dampen these vibrations quickly. The tripod’s weight of 2.5 kg (without a head) acts as a ballast, lowering the center of gravity and providing a more planted feel on uneven surfaces. For photographers working in high-resolution formats, such as medium format digital or high-megapixel full-frame, the mechanical precision of the leg locks ensures that once the frame is composed, there is zero "creep" or settling of the legs, which is a common failure point in entry-level support systems.

Build Quality, Mounting, and Handling

The handling of the Manfrotto MT055XPRO3 055 Aluminium 3-Section Tripod with Horizontal Column is defined by the Quick Power Lock (QPL) system. These levers are designed to be operated with a single hand, allowing all locks on a leg to be released simultaneously. The QPL levers exert a higher locking tension than traditional flip locks, which increases the tripod’s overall stiffness. This mechanism is not just about speed; it is about the security of the gear. When the levers are snapped shut, they provide a tactile and audible confirmation that the leg is immobilized. The tension of these locks is also adjustable using a standard hex key, ensuring the tripod can be maintained over years of heavy use in varying climates.

The 90-degree center column mechanism is housed within the tripod’s top casting. When needed, the column can be raised to its highest point, and a button at the bottom of the column allows it to pivot into the horizontal position. This is a significant ergonomic advantage for studio work, as it allows the camera to be positioned directly over a subject on a table without the tripod legs interfering with the lighting setup. Additionally, the top casting features an "Easy Link" connector, which is a 3/8-inch thread that allows for the attachment of accessories such as a Manfrotto Magic Arm, an LED panel, or an external monitor. This turns the tripod into a mobile workstation, reducing the need for extra light stands in cramped shooting environments. The integrated bubble level on the top plate rotates 360 degrees, ensuring it can always be moved into a position where it is not obscured by the tripod head or camera body.

Video Capability and Fluidity

While primarily marketed as a photo tripod, the Manfrotto MT055XPRO3 055 Aluminium 3-Section Tripod with Horizontal Column is frequently utilized in video production due to its 9 kg payload capacity and the versatility of its center column. For videographers, the horizontal column is a specialized tool for creating "flat lay" or "top-down" shots, which are standard in culinary videos and product unboxings. When paired with a fluid video head, the tripod provides a stable base for smooth pans and tilts. The rigidity of the aluminium legs prevents the "spring-back" effect that often occurs at the end of a pan when using lighter, more flexible tripods.

The 3-section leg design also aids in maintaining a level horizon during video capture. Because there are fewer sections to adjust, leveling the tripod manually is faster. While it does not feature a built-in leveling bowl (found on dedicated video legs), the rotating bubble level allows for precise adjustment of the leg lengths to ensure the head sits perfectly flat. The Easy Link attachment is particularly useful for video, as it can hold a 7-inch monitor or a wireless video transmitter, keeping the camera cage light and manageable. The tripod's ability to go as low as 9 cm also allows videographers to capture dramatic low-angle tracking shots that are difficult to achieve with standard video spreaders.

On the Shoot: Real-World Scenarios in India

In a Bengaluru wedding reception, the environment is often characterized by low light, heavy foot traffic, and limited space. The Manfrotto MT055XPRO3 055 Aluminium 3-Section Tripod with Horizontal Column excels here when capturing long-exposure shots of the decor or the empty hall before guests arrive. The QPL locks allow the photographer to deploy the tripod in seconds as the schedule shifts. The 9 kg payload is essential when the photographer is using a heavy 70-200mm f/2.8 lens to capture candid moments from a distance. The stability of the 055 ensures that even if the floor vibrates slightly from music or dancing, the tripod’s mass and grip help isolate the camera, maintaining sharpness in the highlight details of the stage lighting.

During a Goa travel and landscape shoot, the tripod faces different challenges: salt spray, uneven rocky terrain at Vagator, and high winds. The aluminium construction is robust enough to withstand the coastal elements, provided it is wiped down after use. The four leg-angle positions (25°, 46°, 66°, 88°) are vital when setting up on jagged rocks where one leg might need to be almost horizontal while the others are vertical. The horizontal column becomes a creative tool for macro photography of tropical flora or textures in the Portuguese architecture of Old Goa, allowing the photographer to position the lens inches away from a wall or flower without the legs casting shadows on the subject.

In a Mumbai studio product session, precision is the priority. When shooting jewelry or high-end electronics for e-commerce, the horizontal column of the Manfrotto MT055XPRO3 055 Aluminium 3-Section Tripod with Horizontal Column allows for perfect top-down alignment. The Easy Link port is used to mount a tablet or monitor, allowing the client to see the live view from the camera without crowding the photographer. The tripod’s height of 170 cm is also beneficial for shooting larger products or clothing on mannequins, providing an eye-level perspective that smaller tripods cannot reach without sacrificing stability.

Compatibility and Pairing

The Manfrotto MT055XPRO3 055 Aluminium 3-Section Tripod with Horizontal Column is a modular component and requires a head to be functional. It features a standard 3/8-inch attachment screw on the top plate, making it compatible with almost every professional tripod head on the market. Common pairings include:

• Photo Heads: The Manfrotto XPRO Ball Head (MHXPRO-BHQ2) for fast, single-knob adjustments, or the XPRO 3-Way Head (MHXPRO-3W) for precise architectural or macro alignment.
• Video Heads: The MVH502AH or MVH500AH fluid heads are ideal for video work, taking full advantage of the tripod's 9 kg weight limit.
• Geared Heads: For extreme precision in studio product photography, the 410 Junior Geared Head is a frequent companion to the 055 series.
• Accessories: The Easy Link 3/8" thread is designed for the Manfrotto 244 Micro Arm or 143 Magic Arm, which can hold LED lights like the Lumimuse series or Atomos monitors.

In terms of transport, the tripod has a closed length of 61 cm. It pairs well with the Manfrotto MB MBAG80N or MBAG80PN padded tripod bags. For photographers working in muddy or sandy environments, the standard rubber feet can be replaced with spiked feet (sold separately) to provide better purchase on soft ground.

Who Should Choose Something Else

While the Manfrotto MT055XPRO3 055 Aluminium 3-Section Tripod with Horizontal Column is a versatile workhorse, it is not the ideal choice for every photographer. The most significant limitation is its weight. At 2.5 kg for the legs alone, plus the weight of a head (often bringing the total to over 3.2 kg), it is heavy for long-distance trekking or high-altitude photography in the Himalayas. Photographers who prioritize weight savings should look toward the carbon fiber version, the MT055CXPRO3, which offers the same features at a significantly lower weight, albeit at a different price point.

For frequent international travelers, the 61 cm closed length may be a drawback. It does not fit inside a standard carry-on suitcase, requiring it to be checked in or carried in a dedicated bag. Travel-specific tripods like the Manfrotto Befree series or the 190 series (with 4 sections) fold down much smaller, though they sacrifice the maximum height and the 9 kg payload capacity of the 055. Finally, for cinematographers using heavy cinema rigs (RED, Alexa Mini) with large matte boxes and cine-zooms, the 9 kg limit may be too restrictive. In those cases, a dedicated video tripod with a 75mm or 100mm leveling bowl and a higher payload rating, such as the Manfrotto 546B or 645 FTT, would be more appropriate to ensure the safety of the equipment and the smoothness of the camera movement.
