Ballhead (498 RC2 / 488 RC2)

The Role of the Manfrotto 498RC2 in the Support Ecosystem

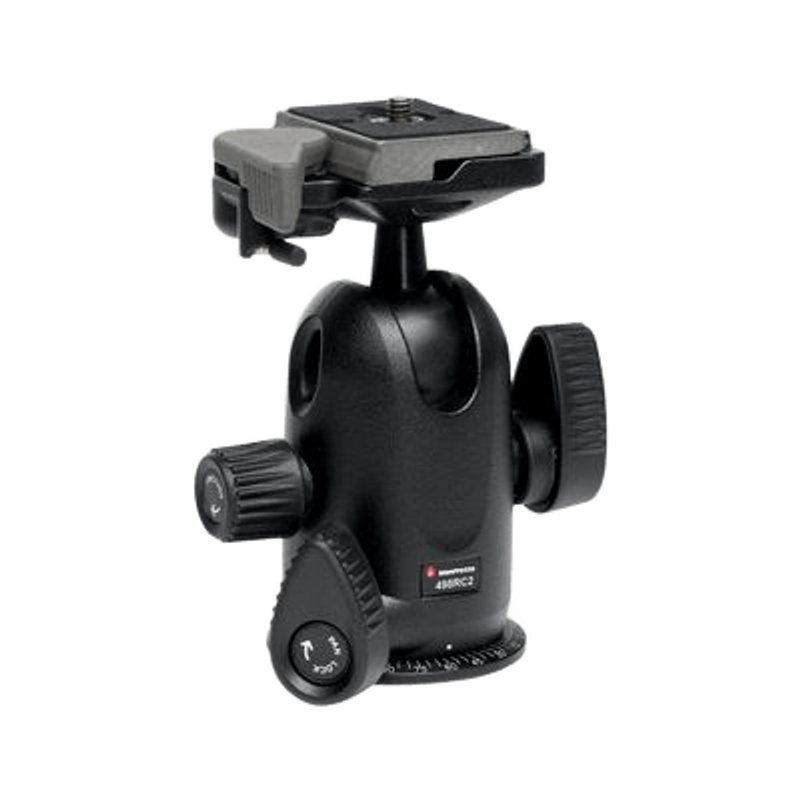

The Manfrotto 498RC2 Midi Ball Head with RC2 is a mid-range support solution designed to bridge the gap between lightweight travel heads and heavy-duty professional studio gear. Constructed primarily from cast aluminum, this head is engineered for photographers using full-frame DSLR or mirrorless systems equipped with medium-sized telephoto lenses. Within the Manfrotto hierarchy, the 498RC2 serves as a successor to the 488 series, introducing refined ergonomics and a dedicated friction control system. It is specifically designed for a maximum load capacity of 8 kg (17.64 lbs), making it a stable platform for setups such as a Canon EOS 5D series or Nikon D850 paired with a 70-200mm f/2.8 lens. The "Midi" designation indicates its physical size—standing 12.5 cm tall and weighing 0.61 kg—positioning it as a versatile choice for field photographers who require a balance between portability and high-torque locking strength.

Mechanical Precision and Friction Control

The primary mechanical advantage of the Manfrotto 498RC2 lies in its three-knob configuration, which separates the locking, panning, and friction functions. Unlike entry-level ball heads that use a single lever to control all movement, this head allows for granular adjustments. The main locking knob is oversized and textured for use with gloves, providing the primary force to secure the ball in place. Adjacent to this is the friction control dial, a smaller knob that allows the user to pre-set the tension on the ball. This is a critical safety feature: by increasing friction to match the weight of the specific camera and lens combination, the photographer prevents the gear from "flopping" or crashing against the tripod legs when the main lock is disengaged. This mechanical resistance ensures that even when the head is "loose," the camera remains semi-supported, allowing for smooth, controlled micro-adjustments without the risk of equipment damage. The ball itself is machined to high tolerances, ensuring that once locked, there is minimal "creep" or shift in the frame, even when the camera is tilted at extreme angles.

Build Quality and the RC2 Mounting System

The 498RC2 is built around the RC2 Rapid Connect system, which utilizes the industry-standard 200PL-14 quick-release plate. This system is designed for speed and security. The mounting platform features a dual-action safety trigger: a primary lever that snaps shut when the plate is pressed into the housing, and a secondary safety pin that must be manually disengaged before the plate can be removed. This prevents accidental release of the camera during transport or while making adjustments. The head features a lateral tilt range of -90° to +90°, facilitated by a single notch in the housing that allows the camera to be flipped into portrait orientation instantly. For panoramic work, the base of the head features a dedicated 360-degree pan lock. This allows the head to rotate horizontally while the ball remains locked in a leveled position. The base is marked with a degree scale in 5-degree increments, providing a visual reference for photographers stitching multiple frames together for wide-angle vistas or architectural documentation.

Video Utility and Movement Limitations

While the Manfrotto 498RC2 is primarily a photographic tool, it offers specific utilities for video applications, albeit with clear limitations. The independent pan lock is the most useful feature for videographers, allowing for horizontal pans that are isolated from the vertical or tilt axes. However, it is important to note that this is a friction-based ball head, not a fluid head. It lacks the internal fluid cartridges found in the Manfrotto 500 or 700 series, meaning it does not provide the "drag" or "counterbalance" necessary for professional-grade cinematic pans and tilts. For video, this head is best used as a leveling base for static shots or for "locked-off" B-roll. In a pinch, the friction control can be tightened to simulate a degree of resistance, but it will not match the smoothness of a dedicated video head. The RC2 plate system is also distinct from the longer sliding plates used in video (like the 501PL), meaning it does not allow for the fore-and-aft balancing required for heavy cinema rigs.

The 498RC2 on the Shoot: Indian Scenarios

In a professional wedding environment, such as a high-paced reception in Bengaluru, the 498RC2 excels due to its speed. When moving between the dimly lit stage and the guest tables, a photographer can use the RC2 quick-release to transition from a tripod-mounted long-exposure shot of the decor to a handheld candid shot in seconds. The 8kg load capacity is sufficient to hold a full-frame body with a heavy 24-70mm f/2.8 lens and a mounted speedlight without any sagging, which is essential when framing group portraits where the horizon must remain perfectly level.

For an architectural shoot in Chandigarh, the 498RC2's independent pan lock and degree scale become the primary tools. When capturing the geometric lines of the Capitol Complex, the photographer can level the ball head once and then use the 360-degree rotation to capture a series of overlapping images for a high-resolution panorama. The aluminum build is robust enough to withstand the heat and dust of outdoor Indian environments, and the mechanical locks do not rely on internal lubricants that might thin out in high temperatures, ensuring consistent performance from the morning sun through to blue hour.

During a wildlife excursion in Ranthambore, the friction control is the standout feature. When shooting from a gypsy or a canter, the photographer often uses a 100-400mm or a 200-600mm lens. By setting the friction control to a high level, the photographer can track a moving animal with the ball head partially loosened. The friction prevents the heavy lens from falling forward abruptly, providing a "semi-fluid" feel that helps in keeping the subject within the frame during erratic movements, while the 3/8" female thread at the base ensures a rock-solid connection to heavy-duty carbon fiber or aluminum legs.

Compatibility and Pairing Essentials

The Manfrotto 498RC2 is designed with a standard 3/8" female thread at its base, making it compatible with almost every professional tripod leg set on the market, including the Manfrotto 055 and 190 series, as well as legs from Gitzo, Benro, and Leofoto. It uses the 200PL-14 plate, which features a standard 1/4"-20 screw, making it compatible with virtually all DSLR, mirrorless, and medium format cameras. For users who have multiple camera bodies, additional 200PL plates can be attached to each, allowing for rapid switching on the same head. This head is also compatible with the Manfrotto 200PL-PRO plates, which allow the camera to be used on both RC2 and Arca-Swiss style clamps without changing plates. When pairing with lenses, it is most stable with optics up to 300mm f/4 or 70-200mm f/2.8. While it can technically hold larger lenses, the physical size of the ball is optimized for these mid-range telephotos.

Limitations and Alternative Recommendations

The Manfrotto 498RC2 has specific limitations that may necessitate a different choice for certain specialists. First, the RC2 plate system is a proprietary Manfrotto design; while widely used, it is not natively compatible with the Arca-Swiss standard used by many L-brackets and specialized panoramic rails. Photographers who have standardized their kit on Arca-Swiss would be better served by the Manfrotto 498 with an Arca-type top (often designated as the 498-top or similar) or a dedicated Arca-compatible ball head. Second, while the 8kg limit is generous, it is a static load rating. For photographers using 400mm f/2.8 or 600mm f/4 "super-telephoto" lenses, a gimbal head or a much larger ball head like the Manfrotto 057 series is required to handle the torque and provide the necessary safety margins. Finally, for macro photographers who require extreme precision, a ball head can be frustrating because of the slight "jump" that can occur when tightening the main lock. In those instances, a 3-way geared head (like the Manfrotto 410 Junior Geared Head) offers micrometer-style adjustments that a ball head cannot replicate. For those prioritizing weight above all else for long-distance trekking in the Himalayas, the smaller Manfrotto 494 or 496 heads offer similar features in a significantly lighter and more compact form factor.
