PXW-X70

The Professional 1.0-type Compact Camcorder

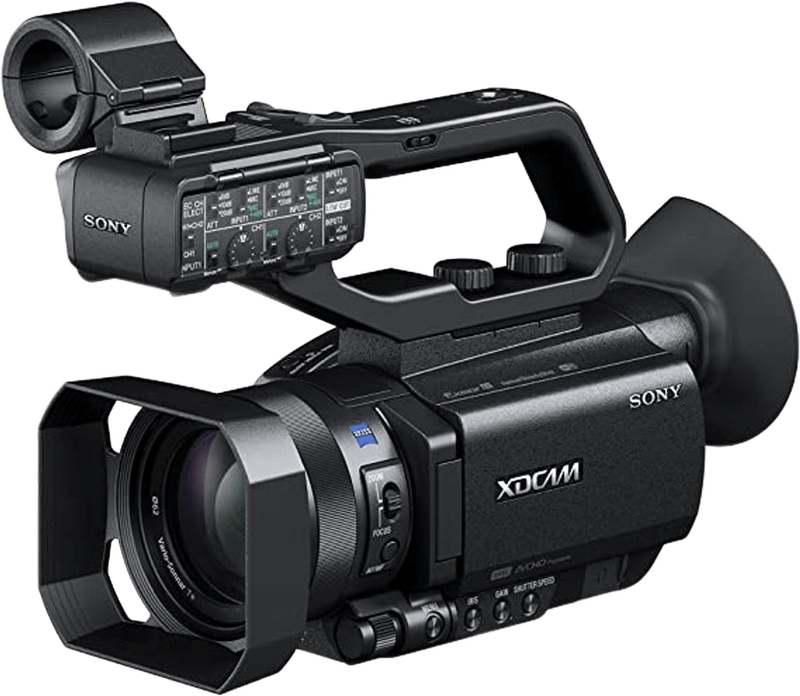

The Sony PXW-X70 is a compact XDCAM camcorder built around a 20-megapixel 1.0-type Exmor R CMOS sensor. This sensor size is significantly larger than the 1/3-inch or 1/4.7-inch sensors typically found in palm-sized professional camcorders, offering a surface area approximately four times larger than a standard 1/2.88-inch chip. This specific sensor architecture is "back-illuminated," a design that moves the internal wiring behind the photo-diodes to increase light-gathering efficiency. In the Sony professional lineup, this camera serves as the entry point for broadcast-ready 10-bit recording, bridging the gap between consumer Handycam models and larger shoulder-mount ENG cameras. It is designed for electronic news gathering (ENG), documentary filmmaking, and corporate video production where a small physical footprint is required without sacrificing professional connectivity like 3G-SDI and XLR audio.

Optical Precision and Image Processing

The imaging chain begins with a fixed Zeiss Vario-Sonnar T* lens, featuring an optical formula of 17 elements in 11 groups, including aspherical and ED (Extra-low Dispersion) glass elements to minimize chromatic aberration. The lens provides a 12x optical zoom range, equivalent to 29mm to 348mm in 35mm full-frame terms. The aperture ranges from f/2.8 at the wide end to f/4.5 at the telephoto end. To extend the reach beyond the physical glass limits, the Sony PXW-X70 utilizes Clear Image Zoom technology, which uses a library of optical patterns to upscale the image to 24x in High Definition or 18x in 4K (UHD) with minimal resolution loss compared to standard digital zooms. The T* coating is applied to the lens surfaces to suppress ghosting and flare, maintaining contrast in backlit environments. The sensor’s 14.2 million effective pixels allow for high-resolution capture that exceeds the requirements of Full HD, providing the data overhead necessary for the camera's Super Resolution technology and digital image stabilization.

Autofocus Performance and Physical Handling

The autofocus system in the Sony PXW-X70 relies on a high-speed contrast-detection method. While it lacks the phase-detection points found in later iterations like the Z90, it features a dedicated AF Micro Adjustment setting and tracking sensitivity controls to fine-tune how the lens reacts to moving subjects. The camera body weighs approximately 1.4kg when fully rigged with the XLR handle, NP-FV70 battery, and lens hood. It features a single manual lens ring that can be toggled between focus and zoom control via a physical switch on the side of the barrel. For monitoring, the device includes a 0.39-inch OLED viewfinder with 1.44 million dots and a 3.5-inch LCD panel with 1.55 million dots. A critical professional feature is the built-in four-position mechanical ND filter wheel, allowing the operator to select between Clear, 1/4 (2 stops), 1/16 (4 stops), and 1/64 (6 stops) density. This enables the use of wider apertures or slower shutter speeds in bright daylight without requiring external screw-on filters.

Video Codecs, Resolutions, and Recording Limits

The Sony PXW-X70 records in several professional formats, most notably XAVC Long GOP. In Full HD (1920x1080), the camera supports 10-bit 4:2:2 color sampling at bitrates up to 50Mbps. This 10-bit depth is a significant technical advantage for color grading, as it provides 1,024 levels of luminance per channel compared to the 256 levels found in 8-bit systems. The camera is 4K-ready, capable of recording Ultra HD (3840x2160) at 24p, 25p, or 30p at a bitrate of 60Mbps in 8-bit 4:2:0. For legacy workflows, it also supports AVCHD and DV formats. Slow and Quick (S&Q) motion functions allow for frame rate adjustments from 1fps to 50fps (PAL) or 60fps (NTSC) in 1080p. The camera features dual SDXC card slots that support "Simultaneous" recording for instant backup or "Relay" recording for extended durations. The 3G-SDI output provides a professional BNC connection capable of outputting 10-bit 4:2:2 HD signals to external recorders or live switchers, a feature rarely found in cameras of this size.

Operational Scenarios in the Indian Context

In a Bengaluru wedding reception held in a dimly lit banquet hall, the 1.0-type sensor of the Sony PXW-X70 provides a distinct advantage over standard 1/3-inch camcorders. The larger sensor area results in lower noise floors at higher gain settings, which is essential when the ambient lighting cannot be controlled. The 10-bit 4:2:2 XAVC-L codec ensures that the vibrant colors of traditional attire and the complex lighting of the stage are captured with enough data for post-production color correction. The dual XLR inputs on the top handle allow the videographer to take a clean line-out from the DJ's mixer into Channel 1 while using a shotgun microphone on Channel 2 for ambient sound, ensuring professional audio synchronization without external recorders.

For a travel documentary shoot in Goa, the camera’s compact form factor and integrated ND filters are vital. When filming on a bright beach at noon, the 1/64 ND filter allows the operator to maintain an f/4.0 aperture to isolate subjects from the background, which would otherwise be impossible at standard shutter speeds. The 29mm wide-angle lens is sufficient for capturing coastal landscapes, while the 24x Clear Image Zoom allows for capturing distant wildlife or architectural details of heritage churches without the need to carry additional heavy telephoto lenses. The NP-FV100 high-capacity battery provides several hours of continuous operation, which is critical for long days of field recording where charging opportunities are limited.

In a Mumbai-based corporate studio session, the Sony PXW-X70 functions as a reliable "B-camera" or a primary unit for interviews. The 3G-SDI output allows for a secure, locking connection to a professional monitor or a live streaming switcher like an ATEM Mini (via an SDI-to-HDMI converter). The camera’s ability to record 10-bit HD internally while outputting a clean signal via SDI makes it suitable for green-screen work where edge detail is paramount. The small size allows it to be mounted on lightweight tripods or even overhead rigs for "top-down" product demonstrations, where a larger cinema camera would be too heavy or cumbersome to balance.

System Compatibility and Essential Pairings

The Sony PXW-X70 uses the Sony V-mount (InfoLITHIUM V-series) battery system, specifically the NP-FV70 and NP-FV100A batteries. For media, the camera requires SDXC Class 10 U3 cards to handle the 50Mbps XAVC and 60Mbps 4K bitrates. The top handle is detachable and connects via a proprietary multi-interface shoe and a secure screw mechanism; this handle provides the two 3-pin XLR inputs and physical audio level dials. The camera is compatible with the Sony RM-VPR1 remote commander for tripod-based zoom and start/stop control. For external audio, the +48V phantom power support allows for the use of professional condenser microphones like the Sony ECM-VG1 or Sennheiser MKE 600. The HDMI Type A and 3G-SDI ports can be used simultaneously in most modes, allowing for both a local operator monitor and a remote feed for a director or client.

Limitations and Alternative Recommendations

While the Sony PXW-X70 is highly capable, it has specific limitations that may necessitate a different choice of equipment. The 1.0-type sensor, while larger than standard camcorders, does not produce the extremely shallow depth of field associated with Super 35mm or Full Frame sensors. If the creative goal is a "cinematic" look with highly blurred backgrounds, a Sony FX3 or Alpha 7S III would be more appropriate. Furthermore, the 4K recording is limited to 8-bit 4:2:0 at 60Mbps, which is lower than the bitrates found in the Sony Z90 or the FS5 Mark II. Users requiring 4K 60p or 10-bit 4:2:2 in 4K will need to look at higher-end models like the Sony PXW-Z190 or the FX6.

The autofocus system is contrast-based, which means it can occasionally "hunt" in low-contrast environments or when tracking fast-moving subjects compared to the Fast Hybrid AF (Phase Detection) found in the newer Sony PXW-Z90. Additionally, the lens is fixed; if the shoot requires ultra-wide angles (wider than 29mm) or extreme telephoto reach beyond 348mm without digital assistance, an interchangeable lens camera like the Sony FS7 or a mirrorless equivalent is required. Finally, the 4K output via HDMI is limited during internal recording in certain modes, which may affect workflows involving external 4K recorders.
