The Panasonic UX90 4K Sensor and Optical Foundation

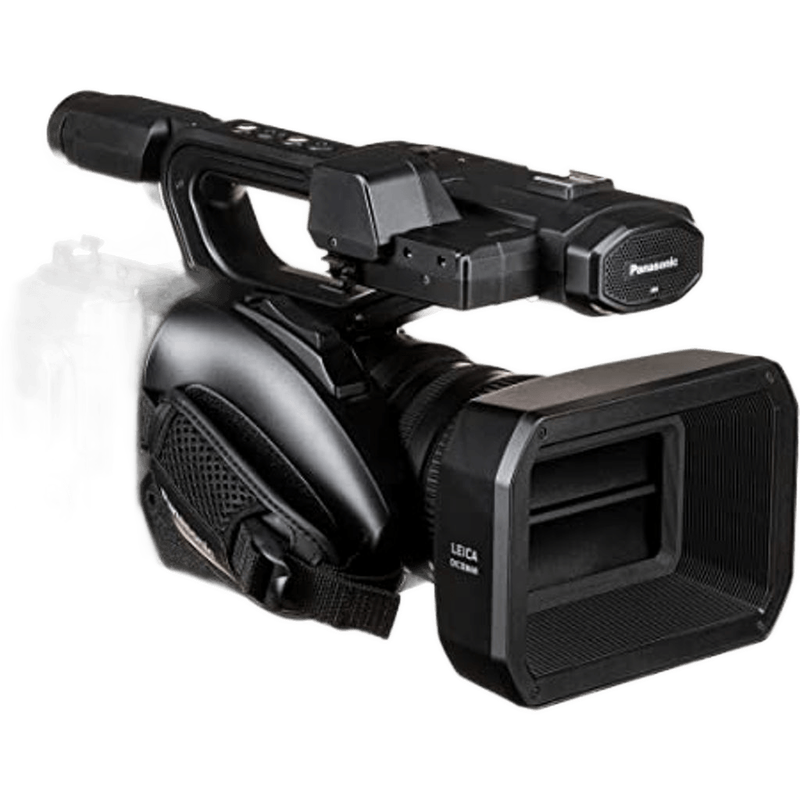

The Panasonic UX90 4K, officially designated as the AG-UX90, is a professional handheld camcorder built around a high-sensitivity 1.0-type (1-inch) MOS sensor. This sensor size represents a significant departure from the 1/3-type or 1/2.3-type sensors commonly found in traditional ENG camcorders, offering a surface area approximately four times larger. This increased area allows for a native resolution of 17.91 megapixels in Full HD and 8.59 megapixels in UHD, providing a balance between resolution and low-light performance. Within the Panasonic professional lineup, the UX90 serves as the standard model in the UX series, positioned as a cost-effective 4K solution for event videography, corporate production, and education, sitting just below the more feature-rich AG-UX180.

The optical system is a fixed Leica Dicomar lens featuring a 15x optical zoom. The focal length varies depending on the recording format due to the sensor crop. In Full HD (1920 x 1080), the lens provides a wide-angle starting point of 24.5mm, extending to 367.5mm (35mm equivalent). When switching to UHD 4K (3840 x 2160), the field of view narrows slightly, providing a 35.4mm to 531mm equivalent. The lens features a variable maximum aperture of f/2.8 at the wide end, closing to f/4.5 at the telephoto end. This optical formula is designed to minimize ghosting and flare while maintaining high contrast, which is critical for the 4K resolving power of the 1-inch sensor.

Image Quality and Signal Processing

The image quality of the Panasonic UX90 4K is defined by its ability to capture high-resolution UHD footage while maintaining a manageable data rate. The 1.0-type sensor allows for a shallower depth of field compared to smaller-sensor camcorders, giving videographers more control over background separation. To manage color and luminance, the camera employs an advanced image processor that supports 16-axis independent color correction. This allows for precise adjustment of specific hues within a scene, ensuring that skin tones remain natural even under difficult artificial lighting conditions.

The camera includes eight selectable gamma modes, which are essential for matching the output to specific delivery requirements or other cameras in a multi-cam setup. These include:

• HD Gamma: Standard setting for high-definition video production.
• SD Gamma: Optimized for standard-definition workflows.
• Filmlike 1, 2, and 3: These modes expand the dynamic range to capture more detail in highlights and shadows, mimicking a cinematic look.
• Video-Rec: Designed for traditional broadcast video recording.
• Still-Like: Configured to match the rendering of digital still cameras.

Additionally, the Skin Tone Detail function applies a soft-focus effect to skin areas without affecting the sharpness of the rest of the frame, a feature frequently utilized in corporate interviews and wedding videography.

Autofocus Performance and Physical Handling

The autofocus system in the Panasonic UX90 4K utilizes a Micro-Drive Focus Unit to achieve high-speed, high-precision tracking. This is particularly important in 4K production where focus errors are more apparent than in HD. The "Intelligent AF" system allows for customization of the AF tracking speed, sensitivity, and area width. In practice, this means the camera can be tuned to ignore foreground obstructions or to snap quickly between subjects. The camera also features a Focus Assist function, which includes "Expand" (magnifying a portion of the image) and "Peaking" (highlighting in-focus edges in color) to aid manual focus operations.

Handling is a core strength of the UX90, featuring three manual rings on the lens barrel for independent control of focus, zoom, and iris. This tactile interface is preferred by professional operators who require immediate, mechanical response rather than menu-based adjustments. The body includes a built-in mechanical ND filter wheel with four positions: Clear, 1/4, 1/16, and 1/64. These filters allow for shooting at wide apertures even in bright daylight, maintaining the desired depth of field. For monitoring, the camera provides a 3.5-inch touch-panel LCD that slides into the handle for protection during transport, and a 0.24-inch electronic viewfinder (EVF) for use in high-glare environments.

Video Resolutions, Codecs, and Recording Limits

The Panasonic UX90 4K records to dual SDXC card slots using the MOV, MP4, and AVCHD formats. In UHD (3840 x 2160), the camera supports frame rates of 29.97p, 25p, and 23.98p at a bitrate of 100 Mbps. In Full HD (1920 x 1080), it supports up to 59.94p and 50p at 50 Mbps. The camera also features a Variable Frame Rate (VFR) mode in FHD, allowing for recording between 2 fps and 60 fps. This enables the creation of overcranked (slow motion) or undercranked (quick motion) effects in-camera without the need for post-processing interpolation.

The dual SD slots provide three recording modes:

• Relay Recording: Automatically switches from Slot 1 to Slot 2 when the first card is full, allowing for continuous recording across multiple hours.
• Simultaneous Recording: Records the same data to both cards at once, providing an instant backup for critical shoots.
• Background Recording: Slot 1 records continuously while Slot 2 records only when the start/stop button is pressed, ensuring that no "off-camera" moments are missed during live events.

It is important to note that the UX90 is limited to 8-bit 4:2:0 internal recording. While this is sufficient for most standard delivery, it offers less flexibility for heavy color grading compared to 10-bit systems. The HDMI output provides a 4:2:2 8-bit signal for external monitoring or recording.

On the Shoot: Real-World Scenarios in India

In a Bengaluru wedding reception held in a large indoor hall with mixed LED and tungsten lighting, the Panasonic UX90 4K excels due to its 1-inch sensor and XLR audio inputs. The larger sensor handles the fluctuating light levels better than standard camcorders, while the 15x zoom allows the operator to capture close-ups of the couple on stage from the back of the hall. The two-channel XLR inputs allow for a direct line-in from the house soundboard on one channel and an on-camera shotgun mic on the other, ensuring high-quality audio sync for the ceremony.

For a travel documentary shoot in Goa, the camera's 5-axis Hybrid Optical Image Stabilizer (O.I.S.) becomes a primary asset. When shooting in Full HD, the system combines optical and electronic stabilization to correct for handheld shake across five axes, including roll and tilt. This is particularly useful when filming from a moving vehicle or walking through crowded markets. The built-in ND filters allow the filmmaker to maintain a shallow f/2.8 aperture while filming on bright beaches, preventing the "staccato" look of high shutter speeds in daylight.

In a Mumbai-based corporate studio session for product demonstrations, the UX90's 24.5mm wide-angle lens (in FHD) allows for shooting in relatively tight office spaces while still capturing the entire desk setup. The "Area Mode" function allows the operator to touch the LCD screen to set the focus and iris for a specific object, which is useful when demonstrating small products. The simultaneous recording to two SD cards provides the necessary redundancy for high-stakes corporate clients where a card failure would necessitate an expensive reshoot.

Compatibility, Media, and Power

The Panasonic UX90 4K uses the AG-VBR and VW-VBD series batteries. A high-capacity battery like the AG-VBR59 provides approximately 120 to 150 minutes of continuous recording time, depending on LCD usage and lens movement. For long-form recording, the camera includes a DC input for use with the included AC adapter. The camera features two XLR 3-pin audio inputs with +48V phantom power, supporting professional condenser microphones and line-level inputs from mixers.

For media, the UX90 requires SDHC or SDXC cards. For 100 Mbps 4K recording, UHS Speed Class 3 (U3) cards are mandatory to ensure the write speed can keep up with the data stream. The camera features a full-size HDMI Type A output, a USB 3.0 Micro-B port for data transfer, and a 2.5mm remote terminal for controlling zoom, start/stop, and iris via external controllers. It also includes a composite video output (BNC) for legacy monitoring systems, though this is limited to standard definition.

Limitations and Alternative Choices

While the Panasonic UX90 4K is a versatile tool, it has specific limitations that may lead a professional to choose a different body. The most notable limitation is the lack of 4K 60p recording; users requiring high-frame-rate 4K for sports or action should look toward the AG-UX180 or the HC-X20, which support 60p at UHD resolutions. Additionally, the UX90 does not feature a 3G-SDI output, which is often a requirement for professional broadcast environments or long-distance cable runs to a switcher; in these cases, the AG-UX180 or the CX series would be more appropriate.

The 4K crop factor is another consideration. Because the camera uses a smaller portion of the sensor for UHD than it does for FHD, the wide-angle capability drops from 24.5mm to 35.4mm. For real estate videographers or those working in very cramped interiors who need 4K resolution, this 35.4mm starting point may be too narrow. Furthermore, while the 1-inch sensor is superior to 1/3-inch chips, it cannot compete with the low-light performance or extreme shallow depth of field of Super 35mm or Full Frame sensor cameras like the Panasonic AU-EVA1 or the Lumix S series. Finally, the 5-axis stabilization is only fully available in Full HD; in 4K, the stabilization is limited to 3-axis, making gimbal or tripod use more critical for high-resolution capture.
