EOS 5D Mark II

The Foundation of the Full-Frame Revolution

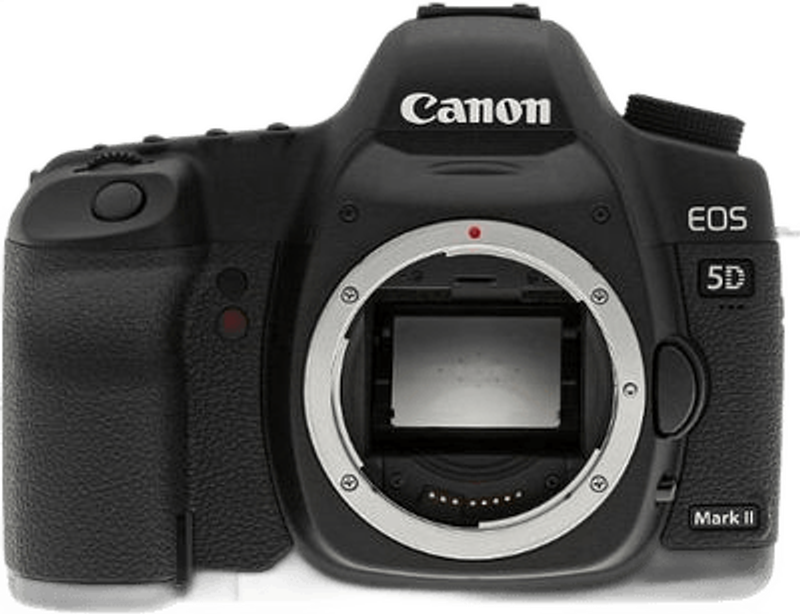

The Canon EOS 5D Mark II Full Frame DSLR Camera Body is a high-resolution digital single-lens reflex camera that features a 21.1-megapixel CMOS sensor. Measuring 36 x 24 mm, this sensor provides a 1:1 focal length ratio with EF lenses, eliminating the crop factor associated with smaller APS-C sensors. At the time of its release, it represented a significant shift in the EOS lineup, bridging the gap between the enthusiast-level 50D and the professional 1D series. It was designed specifically for studio photographers, landscape artists, and wedding professionals who required high-resolution output for large-format printing without the bulk of a double-gripped professional body. The internal architecture is powered by the DIGIC 4 image processor, which manages the high data throughput required for 21.1-megapixel RAW files and Full HD video recording. The camera is constructed around a magnesium alloy chassis, providing a durable frame for the internal mirror box and sensor assembly, while maintaining a weight of approximately 810 grams for the body alone.

Sensor Architecture and Image Quality

The heart of the Canon EOS 5D Mark II is its 21.1MP CMOS sensor, which produces a maximum image resolution of 5616 x 3744 pixels. This sensor utilizes a 14-bit Analog-to-Digital (A/D) conversion process, which allows for 16,384 levels of color per channel. This high bit depth is critical for maintaining smooth tonal gradations in highlights and shadows, particularly in high-contrast scenes. The sensor incorporates an improved output amplifier and a more efficient color filter array compared to its predecessor, which reduces noise at higher ISO settings. The native ISO range spans from 100 to 6400, but it can be expanded downwards to ISO 50 (L) and upwards to ISO 12800 (H1) and ISO 25600 (H2). The DIGIC 4 processor enables advanced noise reduction algorithms that target both chroma and luminance noise while preserving edge detail. For photographers who do not always require maximum resolution, the camera offers sRAW1 (approx. 10.0MP) and sRAW2 (approx. 5.2MP) modes, which maintain the flexibility of the RAW format while reducing file size and storage requirements on CompactFlash media.

Autofocus System and Physical Handling

The autofocus system in the Canon EOS 5D Mark II consists of 9 selectable AF points arranged in a diamond pattern, supplemented by 6 invisible AF assist points that function during AI Servo AF mode to improve tracking performance. The center AF point is a high-precision cross-type sensor that is compatible with lenses having an aperture of f/2.8 or faster. While the AF system is optimized for stationary subjects and portraits, the 35-zone TTL evaluative metering system ensures accurate exposures by analyzing light across the entire frame. The camera body features a 3.0-inch Clear View LCD with 920,000 dots, providing a 170-degree viewing angle and an anti-reflective coating for better visibility in bright light. The pentaprism viewfinder offers 98% frame coverage and 0.71x magnification, allowing for precise manual focusing when required. The shutter mechanism is rated for 150,000 cycles, and the body includes weather-sealing gaskets around the battery compartment, memory card slot, and buttons to protect against dust and moisture during outdoor operation.

The Emergence of DSLR Cinematography

The Canon EOS 5D Mark II was the first EOS camera to offer Full HD video recording, a feature that fundamentally changed the independent film industry. It records 1920 x 1080 video at frame rates of 30, 25, and 24 frames per second, utilizing the H.264/MPEG-4 AVC codec. The camera also supports Standard Definition (640 x 480) recording at 30 or 25 fps. Video files are saved in the .MOV format. A key limitation of this era of technology is the 4GB file size limit, which equates to approximately 12 minutes of Full HD footage per clip, or a maximum continuous recording time of 29 minutes and 59 seconds. The camera includes a 3.5mm monaural microphone input for external audio, though it lacks a dedicated headphone jack for real-time monitoring. Manual exposure control in video mode allows for the adjustment of shutter speed, aperture, and ISO, providing the shallow depth-of-field "cinematic look" that full-frame sensors are known for. However, it is important to note that the camera does not offer continuous autofocus during video recording; focus must be set manually or via a single-shot AF engagement before recording begins.

Operational Performance in Indian Shoot Scenarios

In a Bengaluru wedding reception held in a traditional marriage hall with mixed tungsten and LED lighting, the Canon EOS 5D Mark II excels at capturing candid portraits. The 21.1MP sensor provides enough resolution to crop into a frame while maintaining enough detail for a 12x18 inch album print. The full-frame sensor allows a 50mm or 85mm prime lens to achieve a shallow depth of field that separates the couple from busy backgrounds, a task more difficult on crop-sensor bodies. The 14-bit RAW files are particularly useful here for recovering detail in the shadows of dark silk sarees or correcting the white balance shifts caused by varying light sources.

For a travel shoot across the diverse landscapes of Goa, from the humid beaches of Palolem to the historic churches of Old Goa, the camera's magnesium alloy build provides necessary durability. The weather sealing protects the internal electronics from the high humidity and salt air. When shooting the architecture of the Basilica of Bom Jesus, the high resolution allows for the capture of intricate stone textures and carvings. The 98% viewfinder coverage ensures that the edges of the frame are composed accurately, which is vital for architectural symmetry.

In a Mumbai-based studio session for a fashion catalog, the camera is typically used in a tethered configuration via its USB 2.0 port. The 21.1MP resolution is the industry standard for high-end catalog work, providing sufficient detail for skin texture and fabric weave. The ability to use the center cross-type AF point ensures that the eyes of the model are sharp even when using wide apertures like f/1.2 or f/1.4. The camera's compatibility with the Canon Speedlite system allows for seamless integration with studio strobes using E-TTL II metering for rapid setup and consistent exposure across hundreds of frames.

Compatibility, Media, and Power

The Canon EOS 5D Mark II is compatible with the extensive range of Canon EF mount lenses. It cannot use EF-S lenses, which are designed for smaller sensors and would interfere with the larger mirror of the 5D series. For storage, the camera uses a single CompactFlash (CF) card slot, supporting Type I and Type II cards, including UDMA-compliant cards for faster data transfer. Power is provided by the LP-E6 lithium-ion battery pack, which is rated for approximately 850 shots per charge according to CIPA standards. This battery model remained a standard for several subsequent generations of Canon cameras, making it widely available. The camera can also be fitted with the BG-E6 Battery Grip, which holds two LP-E6 batteries or six AA batteries, and provides vertical orientation controls for shutter release and AF point selection. For studio work, the ACK-E6 AC Adapter kit allows the camera to run on mains power indefinitely.

Limitations and Alternative Considerations

While the Canon EOS 5D Mark II is a landmark camera, it has specific limitations that may make other bodies more suitable for certain tasks. The autofocus system, with only 9 selectable points and a single cross-type point, is not designed for high-speed sports or erratic wildlife photography. For those needs, a camera like the EOS 7D or the later 5D Mark III, which features a 61-point AF system, would be more effective. The burst rate is limited to 3.9 frames per second, which is insufficient for fast action. In terms of video, the lack of a headphone jack and the absence of Dual Pixel CMOS AF means that video shooters must be proficient in manual focusing and external audio monitoring. Furthermore, the camera features a single CF card slot; photographers who require instant backup via dual card slots should look toward the 5D Mark III or Mark IV. Finally, the maximum native ISO of 6400, while impressive at its launch, is surpassed by modern sensors that offer cleaner images at ISO 12800 and beyond, making the 5D Mark II less ideal for extreme low-light environments without artificial lighting.
