MT190XPRO3 Aluminum Tripod

The Engineering of the Manfrotto MT190XPRO3

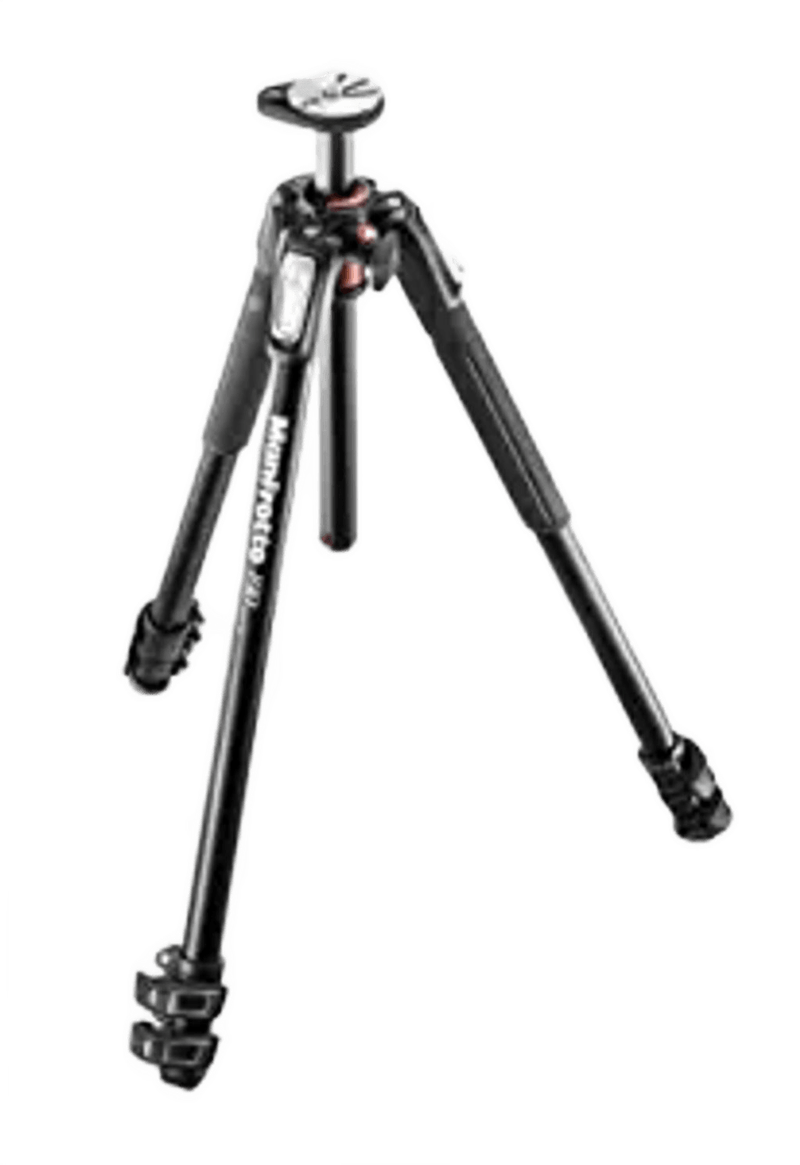

The Manfrotto MT190XPRO3 is a professional-grade three-section aluminum tripod that serves as a cornerstone in the Manfrotto 190 series. This specific model is designed to bridge the gap between lightweight travel supports and heavy-duty studio sticks, offering a maximum payload of 7kg (15.4 lbs). Constructed from high-quality aluminum alloy, it provides a balance of structural rigidity and manageable weight, coming in at 2kg (4.4 lbs) for the legs alone. This tripod is engineered for photographers and videographers who require a stable platform for mid-range DSLR and mirrorless setups, particularly those utilizing lenses up to 70-200mm f/2.8 or equivalent focal lengths.

The 190 series has long been the standard for versatility in the Manfrotto lineup. The MT190XPRO3 distinguishes itself through its 90-degree center column mechanism, which allows the column to be extended vertically as normal or swung into a horizontal orientation. This transition is achieved without removing the head or disassembling the tripod, making it an essential tool for macro photography, low-angle shooting, and flat-lay documentation. It sits below the 055 series in terms of height and payload but offers significantly more stability and height than the BeFree travel range, making it the primary choice for location photographers who do not want to sacrifice height for portability.

Stability, Torsional Rigidity, and Vibration Dampening

The performance of the Manfrotto MT190XPRO3 is defined by its D-shaped aluminum tubing. Unlike traditional round tubes, the D-shape prevents internal rotation between the leg sections, which significantly increases the torsional rigidity of the entire system. This means that when a heavy camera is mounted and the user is panning or adjusting settings, the legs resist twisting forces that would otherwise lead to micro-jitters or frame drift. The aluminum construction is chosen for its specific resonance frequency, which effectively dampens vibrations from wind or floor movement faster than thinner-walled budget alternatives.

The three-section design is a deliberate choice for stability. By utilizing only two joints per leg, the MT190XPRO3 maintains thicker tube diameters throughout its extension compared to four or five-section travel tripods. The top leg section has a diameter of 26mm, followed by 22.5mm and 19mm for the lower sections. This ensures that even at the maximum height of 160cm (with the center column extended), the tripod maintains a solid footprint. When the center column is retracted, the tripod stands at 135cm, which is the optimal height for eye-level shooting for many users while maximizing the structural integrity of the center casting.

Quick Power Lock and Handling Ergonomics

The handling of the Manfrotto MT190XPRO3 is centered around the Quick Power Lock (QPL) levers. These are not standard flip locks; they are designed with a high-tension cam mechanism that allows for single-handed operation. A photographer can release all locks on a single leg simultaneously with one grip, significantly reducing setup time. The QPL system also provides a higher locking force than traditional levers, ensuring that the legs do not creep under the weight of a heavy kit. This is critical when working in environments where the tripod might be subjected to downward pressure, such as when a photographer leans on the kit or uses heavy telephoto glass.

The 90-degree center column is housed within the top casting of the tripod until it is needed. By pressing a button at the bottom of the column, the user can slide it to its highest point and then pivot it horizontally. This mechanism is made of a durable polymer and aluminum hybrid to ensure smooth movement. Complementing this is the Easy Link connector, a 3/8-inch threaded attachment point located on the side of the main casting. This allows for the mounting of accessories such as an LED light, a reflector, or an external monitor via a friction arm, effectively turning the tripod into a mobile studio rig without cluttering the camera’s hot shoe. Furthermore, the integrated bubble level rotates freely around the center column, ensuring it can always be positioned where the user can see it, regardless of the camera's orientation.

Video Capability and Payload Management

While primarily marketed as a photo tripod, the Manfrotto MT190XPRO3 is frequently utilized for video applications due to its 7kg payload capacity. This weight limit comfortably supports a fully rigged mirrorless camera, such as a Sony A7S III or Panasonic GH6, including a cage, top handle, and follow focus system. The stability of the 3-section legs is particularly beneficial for video, as it minimizes the "spring" effect at the end of a pan or tilt movement. The 90-degree column also opens up creative video possibilities, such as top-down "tasty" style food videos or low-profile tracking shots near the ground.

The tripod features four independent leg angle positions: 25°, 46°, 66°, and 88°. For videographers, the 88° setting is vital as it allows the tripod to sit almost flat on the ground, achieving a minimum height of just 9cm. This is ideal for low-angle cinematic shots that would otherwise require a dedicated "hi-hat" or floor spreader. However, it is important to note that the MT190XPRO3 does not include a leveling base. Videographers using this for pans on uneven terrain will need to adjust the leg lengths individually or pair the legs with a leveling head to ensure a perfectly horizontal horizon line. The 3/8-inch mounting screw on the top plate is standard for all professional fluid heads, such as the Manfrotto MVH500AH or MVH502AH.

The MT190XPRO3 on the Shoot: Indian Scenarios

In a Bengaluru wedding reception, the environment is often characterized by crowded halls and rapidly changing lighting. The MT190XPRO3 excels here because of its 59cm closed length, allowing the photographer to move through tight guest aisles easily. During the detail shots of the "Thali" or wedding rings, the 90-degree column allows the photographer to position the camera directly over the objects on a table without the tripod legs entering the frame. The QPL levers allow for rapid height adjustments as the ceremony moves from standing rituals to seated prayers on the mandap.

For a Goa travel and landscape shoot, the aluminum construction of the Manfrotto MT190XPRO3 provides the necessary weight to remain stable against coastal winds on Vagator or Palolem beaches. Unlike lighter carbon fiber tripods that may require a stone bag for ballast, the 2kg mass of the 190XPRO3 keeps long exposures of the Arabian Sea sharp. The aluminum is also more resistant to the abrasive nature of sand in the leg locks compared to complex twist-lock mechanisms, though thorough cleaning after a beach shoot is always required to prevent salt corrosion.

In a Mumbai studio product session for an e-commerce brand, the tripod acts as a permanent fixture for flat-lay photography. The 90-degree column is extended over a shooting table to capture apparel or electronics from a perfect bird's-eye view. The Easy Link attachment is used to hold a tablet running a tethering app, allowing the stylist and photographer to review shots in real-time without moving back to a computer workstation. The rigidity of the D-profile tubes ensures that once the frame is locked, it remains consistent across hundreds of product SKUs.

Compatibility and Pairing Essentials

The Manfrotto MT190XPRO3 is a modular component and requires a head to be functional. It is most commonly paired with:

• Ball Heads: The Manfrotto MHXPRO-BHQ2 or the 496RC2 are the standard pairings for photographers, providing quick multi-axis movement and a compact profile.
• Three-Way Heads: For architectural or macro work where precision on individual axes is required, the MHXPRO-3W is the recommended companion.
• Fluid Video Heads: The MVH500AH is a perfect match for the 7kg payload, allowing for smooth pans and tilts for cinematography.
• Accessories: The 3/8" Easy Link port is compatible with Manfrotto 244 or 144 friction arms. These can hold Atomos monitors, SmallRig LED panels, or even a secondary camera for behind-the-scenes footage.
• Feet: The standard rubber feet can be replaced with spiked feet (Manfrotto 190SPK2) for better grip on soft earth or ice during outdoor expeditions in the Himalayas or Western Ghats.

Who Should Choose Something Else

While the Manfrotto MT190XPRO3 is a versatile workhorse, it has specific limitations. Users shooting with heavy wildlife setups, such as a 600mm f/4 lens on a flagship body, should look toward the Manfrotto 055 series or the 057 series. The 190's 7kg limit is a maximum rating; for long-lens work where vibrations are magnified, a tripod with a 9kg to 12kg rating provides a much more stable "settle time" after touching the camera.

For high-altitude trekking or long-distance hiking where every gram matters, the 2kg weight of the aluminum MT190XPRO3 may be prohibitive. In these cases, the MT190CXPRO3 (Carbon Fiber version) offers the same features at a significantly lower weight, or the BeFree GT series provides a more compact folded length for fitting inside a backpack. Additionally, if your work involves frequent shooting in saltwater or extreme mud, a tripod with sealed twist locks (like the Gitzo Ocean series or certain specialized Manfrotto video legs) may be preferable, as the flip-lock mechanism of the 190 can trap debris more easily, requiring more frequent teardown and maintenance.
