DIGITEK Platinum DPMP 170B Monopod

Professional Support and Structural Design

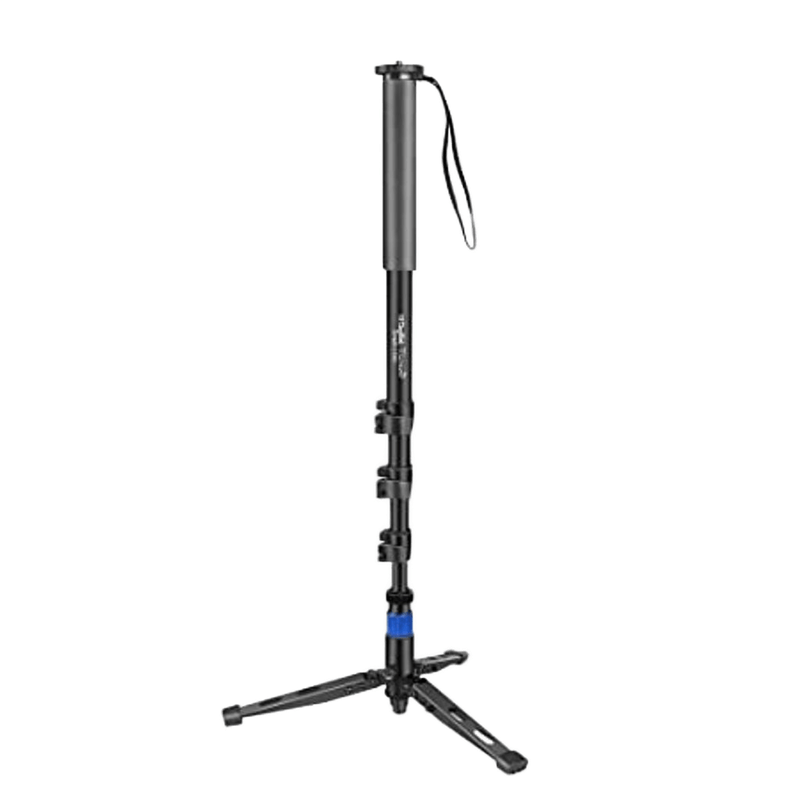

The DIGITEK Platinum DPMP 170B Monopod is a high-capacity support system designed to bridge the gap between the mobility of handheld shooting and the absolute stability of a tripod. Positioned within the Platinum series, this monopod is engineered for professional use where heavy camera payloads must be managed over long durations without the footprint of a three-legged system. It features a maximum operating height of 1700mm (approximately 5.57 feet), which allows most operators to maintain an eye-level viewfinder position without slouching, even when using a tilt head. The collapsed height sits at 540mm, making it a viable option for external attachment to medium-sized camera backpacks. The structural core is built around a four-section leg design, utilizing high-strength aluminum alloy tubes that balance torsional rigidity with a manageable carrying weight. This specific model is aimed at sports photographers, wildlife enthusiasts, and event videographers who require a payload capacity of up to 8kg, allowing for the use of full-frame DSLRs or mirrorless bodies equipped with heavy telephoto glass.

Load Capacity and Material Integrity

The primary technical advantage of the DIGITEK Platinum DPMP 170B Monopod lies in its 32mm maximum tube diameter. In the hierarchy of camera supports, the diameter of the uppermost leg section is the most critical predictor of vibration dampening and weight bearing. By utilizing a 32mm primary section, this monopod minimizes the "flex" often associated with thinner, entry-level supports when a heavy lens like a 200-600mm or a 400mm f/2.8 is mounted. The aluminum alloy construction is treated with an anodic oxidation process, which serves two functions: it hardens the surface against abrasions and provides a matte finish that reduces specular reflections that could startle wildlife or interfere with studio lighting setups. The 8kg load rating is a conservative figure that accounts for the dynamic forces applied when a photographer pans or tilts a heavy rig. Internally, the sections are separated by anti-rotation sleeves, ensuring that the leg segments do not spin within each other, which maintains the alignment of the locking clips and prevents structural failure under vertical pressure.

Mechanical Handling and Deployment Speed

Handling on a fast-paced shoot is governed by the leg-locking mechanism and the grip ergonomics. The 170B utilizes quick-flip lever locks rather than twist locks. These levers are constructed from high-impact polymer and allow for one-handed deployment; a photographer can release all three locks simultaneously to drop the monopod to its full height in seconds. The tension of these flip locks is adjustable via a hex key, ensuring that the locking force can be maintained over years of use as the internal bushings wear. For the operator, the upper section is encased in a thick, closed-cell NBR (Nitrile Butadiene Rubber) foam grip. This material is chosen for its thermal insulation properties, preventing the aluminum from feeling uncomfortably cold in high-altitude environments or slippery in the humid conditions common in tropical climates. A heavy-duty nylon wrist strap is integrated into the top plate assembly, providing a secondary fail-safe against accidental drops and allowing the photographer to let the monopod hang from their arm while changing lenses or adjusting camera settings.

Stabilization for Motion and Long Focal Lengths

While often viewed as a tool for stills, the DIGITEK Platinum DPMP 170B Monopod provides specific benefits for video acquisition. It acts as a vertical stabilizer, effectively eliminating the "micro-jitter" associated with high-resolution sensors (45MP and above) and long focal lengths. When shooting video, the monopod serves as a pivot point, allowing for smooth, organic pans that feel more natural than a static tripod shot but more controlled than handheld footage. The top mounting plate is oversized to provide a stable base for fluid heads. It features a reversible mounting screw with 1/4"-20 and 3/8"-16 threads. This is a critical detail: the 1/4" thread allows for direct mounting of a camera body or a small ball head, while the 3/8" thread is the industry standard for professional fluid video heads or heavy-duty gimbal heads. Switching between these threads is a tool-less process involving depressing the spring-loaded plate and flipping the stud, ensuring compatibility with a wide range of mounting hardware without needing separate adapters.

Operational Scenarios in the Indian Context

In a Bengaluru wedding reception, space is often the primary constraint. Traditional tripods create a significant trip hazard in crowded banquet halls and are difficult to reposition as the couple moves through the crowd. The 170B allows a videographer to maintain a stable 4K frame while occupying only a few square inches of floor space. The 1700mm height is particularly useful here, as it allows the camera to be raised above the heads of the guests to capture the stage clearly. In a different environment, such as a wildlife safari in Ranthambore or Kabini, the monopod becomes an essential tool for supporting a 150-600mm lens over several hours of waiting. The aluminum construction is rugged enough to withstand the vibrations of a moving gypsy, and the spiked foot option (accessible by removing or retracting the rubber foot) provides a secure anchor in soft earth or gravel. For a Mumbai-based fashion photographer shooting street style in Kala Ghoda, the monopod offers the stability needed for "drag shutter" shots—where the subject is sharp but the background has motion blur—without the bulk of a tripod that would be impractical on a busy sidewalk.

System Integration and Accessory Compatibility

The DIGITEK Platinum DPMP 170B Monopod is designed to be the backbone of a modular support system. It is natively compatible with any camera body featuring a standard tripod socket, but its true utility is realized when paired with specific accessories. For sports photography, it is best paired with a tilt head (like the Digitek DPH-001) which allows for 90-degree vertical orientation changes while keeping the monopod upright. For videographers, it pairs seamlessly with small fluid heads to create a "run-and-gun" cinema rig. Because of its 8kg capacity, it can support a fully rigged cinema camera, including an external monitor, V-mount battery plate, and follow-focus system. The base of the monopod often features a standard 3/8" female thread after removing the rubber foot, which allows for the attachment of a three-legged "butterfly" base for added stability during low-angle shots or for smoother panning rotations. It is also compatible with various shoulder carry straps that can be looped through the wrist strap attachment point for easier transport across long distances.

Limitations and Alternative Support Systems

Despite its versatility, the 170B is not a universal solution. It cannot provide the "hands-off" stability required for long-exposure landscape photography, such as 30-second exposures of the night sky or silky-water effects on waterfalls; for these applications, a dedicated tripod is mandatory. While the aluminum construction is durable, it is heavier than carbon fiber equivalents. A photographer embarking on a multi-day trek in the Himalayas may find the weight of an aluminum monopod a disadvantage compared to a carbon fiber model, which would offer similar rigidity at approximately 30% less weight. Furthermore, the flip-lock mechanism, while fast, can be prone to trapping fine sand or grit if used in desert environments like the dunes of Jaisalmer; in such specific conditions, a twist-lock monopod with weather-sealed gaskets might be more appropriate to prevent internal grinding. Finally, for macro photography where millimeter-precise adjustments on three axes are required, the inherent sway of a monopod—no matter how sturdy—will be a limiting factor, necessitating a tripod with a geared head instead.

• Maximum Height: 1700mm
• Folded Length: 540mm
• Load Capacity: 8kg
• Leg Sections: 4
• Tube Diameter: 32mm (Max)
• Material: High-grade Aluminum Alloy
• Mounting Stud: Reversible 1/4" and 3/8"
• Lock Type: Quick-flip Lever Locks
• Grip: NBR Foam
