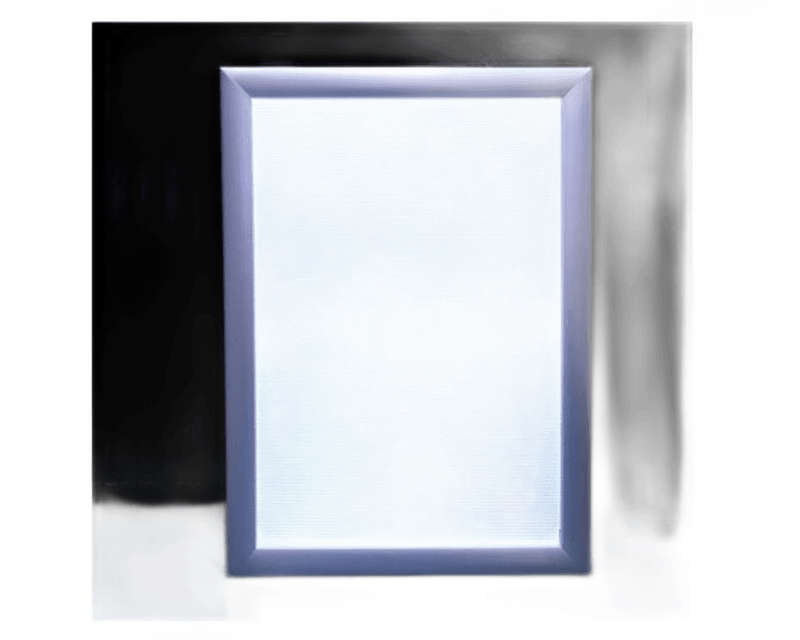

Aluminium led Photo Frame with Stand

The Technical Foundation of the Aluminium LED Photo Frame with Stand

The Aluminium LED Photo Frame with Stand is a high-performance illuminated display system engineered for the precise presentation of photographic prints and commercial graphics. Unlike standard static frames, this unit utilizes an edge-lit or backlit LED array integrated into a structural 6063-T5 grade aluminum extrusion. This specific alloy is chosen for its high strength-to-weight ratio and excellent thermal conductivity, which is essential for dissipating heat generated by the internal electronics. The frame typically features a depth profile ranging from 20mm to 45mm, providing a slim, modern aesthetic while housing the Light Guide Plate (LGP) and the LED modules. It is designed for photographers, gallery curators, and event designers who require a consistent, high-CRI (Color Rendering Index) light source to bring out the depth and color accuracy of backlit media.

In the hierarchy of display equipment, this frame sits above traditional non-illuminated frames and below active digital signage like high-pitch LED walls. It fills a critical niche: providing the high-resolution detail of a physical print with the luminance and "pop" associated with a digital screen. The stand component is usually a reinforced steel or heavy-duty aluminum base, often in a T-shape or circular configuration, designed to maintain a low center of gravity. This ensures stability in high-traffic environments such as exhibition halls or wedding venues. The system is built to accommodate specific media types, most notably Backlit PET film or Silicone Edge Graphics (SEG) fabric, which are engineered to allow light transmission without revealing the internal LED structure or "hotspots."

Luminance, Diffusion, and Light Quality

The core of the Aluminium LED Photo Frame with Stand is its lighting engine, which typically consists of high-density SMD 2835 LED strips. These LEDs are binned for color consistency, ensuring that the color temperature—usually calibrated to a daylight-balanced 6000K to 6500K—remains uniform across the entire surface area. For specialized photographic applications, some units offer a CRI of 90 or higher, which is vital for maintaining the integrity of skin tones and subtle color gradations in professional portraits. The light is distributed through a laser-dotted acrylic Light Guide Plate. This LGP uses a precise pattern of etched dots that increase in density toward the center of the frame, compensating for the natural fall-off of light as it travels from the edge-mounted LEDs. This results in a surface uniformity of over 85%, preventing the common "vignetting" effect seen in lower-quality light boxes.

The diffusion layer is equally critical. When using a high-quality backlit film, the light is scattered evenly, eliminating the appearance of individual LED beads. This creates a "glow" effect that enhances the dynamic range of the printed image, making blacks appear deeper and highlights more vibrant. Because the LEDs operate on a DC 12V or 24V system via a dedicated transformer, the light output is constant and flicker-free. This is a significant advantage over fluorescent-based light boxes, which often suffer from color shifting and visible flicker. The thermal management provided by the aluminum frame ensures that the LEDs do not overheat, which preserves their lifespan—rated at approximately 50,000 hours—and prevents the printed media from warping or yellowing due to localized heat pockets.

Build Integrity and Mounting Mechanics

The structural design of the Aluminium LED Photo Frame with Stand focuses on durability and ease of media replacement. Most professional models utilize a "snap-frame" or "clip-frame" mechanism. This involves four spring-loaded aluminum profiles that flip open, allowing the user to place the print and the protective anti-glare PVC cover without the need for tools. This is particularly useful for fast-paced environments where graphics need to be updated frequently. The anodized finish on the aluminum, typically measured at 15 to 20 microns, provides a scratch-resistant surface that maintains its professional appearance even after repeated assembly and disassembly. The frame corners are often mitered at a precise 45-degree angle and reinforced with internal steel brackets to prevent sagging or misalignment over time.

The stand is engineered to handle the vertical load and potential wind resistance of the frame. It connects to the frame via a mounting bracket that often allows for both portrait and landscape orientations. The height of the stand is frequently adjustable, using a friction-lock or pin-lock system to secure the frame at eye level. For shoots involving heavy foot traffic, the base is weighted—sometimes up to 5kg or more—to ensure the unit cannot be easily tipped over. The power cable is typically routed through the vertical pole of the stand or secured along the back of the frame to maintain a clean, professional look, preventing trip hazards and visual clutter during a shoot or exhibition.

Visual Performance and Video Integration

While the Aluminium LED Photo Frame with Stand is a static display tool, its performance under cinema and video cameras is a key technical consideration. Because the internal LED drivers utilize high-frequency Pulse Width Modulation (PWM) or constant current dimming, the frame remains flicker-free even when filmed at high frame rates. This makes it an excellent practical light source or background element for video productions. If a cinematographer is shooting at 50fps or 100fps for slow-motion, the frame will not exhibit the "rolling bands" associated with cheap LED sources. The matte or anti-glare finish of the protective overlay is also vital for video, as it minimizes reflections from studio lights, ensuring the printed image remains the focal point.

The frame can also function as a large-area softbox in a pinch. By removing the printed graphic and using only the white diffusion layer, it provides a very soft, broad light source that can be used for product videography or as a fill light for interviews. The light output, while not as powerful as a dedicated COB LED studio light, is sufficient for close-up work, providing a wrap-around light quality that is difficult to achieve with smaller fixtures. The lack of an internal fan means the unit is completely silent, making it ideal for sound-sensitive environments where fan noise from traditional lighting equipment would be a distraction.

On the Shoot: Practical Indian Scenarios

In a Mumbai studio product session, the Aluminium LED Photo Frame with Stand serves as a high-end display for a client’s hero shot. During a jewelry shoot, the photographer might use the frame to display a previously captured and retouched image of the product, allowing the client to see the "final look" in a physical, illuminated format that mimics how it will appear in a luxury retail showroom. The frame’s high CRI ensures that the gold and gemstone colors in the print match the physical samples on the table, facilitating a more accurate creative discussion. The slim profile allows it to be tucked into the corner of a crowded studio without obstructing the movement of light stands and C-stands.

During a Bengaluru wedding reception held in a large hotel ballroom, these frames are often deployed as "memory walls" or directional signage. In the dim, ambient lighting of a reception hall, a standard printed poster would be lost in the shadows. The LED frame, however, cuts through the darkness, drawing guests' attention to the couple's pre-wedding portraits. Because the stand is stable, it can be placed on the carpeted floors of a ballroom without wobbling. The daylight-balanced LEDs provide a clean white light that contrasts beautifully with the warm, decorative "tungsten" lighting typically used in Indian wedding decor, making the photographs stand out as focal points in the room.

For a Delhi corporate exhibition at Pragati Maidan, the frame is used as a primary branding tool. In a competitive trade show environment, the brightness of the Aluminium LED Photo Frame with Stand ensures that the brand’s messaging is visible from across the aisle. The ease of the snap-frame mechanism allows the marketing team to switch from a morning "keynote" graphic to an afternoon "product launch" graphic in under sixty seconds. The portability of the aluminum construction means the entire unit can be packed into a compact carry case and transported across the city in a standard vehicle, avoiding the need for specialized logistics teams required for larger, heavier display booths.

Compatibility and Essential Pairings

To maximize the utility of the Aluminium LED Photo Frame with Stand, specific media and power considerations must be met. The most critical pairing is the Backlit PET Film. This is a specialized polyester film with a coating designed for inkjet or UV printing. Unlike standard paper, PET film does not have a grain that becomes visible when backlit, and it is resistant to the heat generated by the LEDs. The print should be executed at a high resolution (at least 1440 dpi) to ensure that the illumination does not reveal any banding or pixelation in the image. For frames using the SEG system, a Tension Fabric Print with a silicone welt sewn into the edges is required to achieve a drum-tight, borderless look.

In terms of power, the frame is typically compatible with standard 220V-240V AC outlets found in India, utilizing a step-down transformer to provide 12V or 24V DC to the LEDs. For outdoor shoots or locations without easy access to mains power, the frame can be paired with a Portable Power Station or a 12V deep-cycle battery with a compatible DC jack. Additionally, for photographers using the frame as a light source, a Universal Dimmer Controller can be added between the power supply and the frame to adjust the brightness levels, allowing the frame to be balanced with other ambient or studio lights. For transport, a Padded Carrying Case specifically sized for the frame’s dimensions is highly recommended to protect the acrylic LGP from scratches and the aluminum edges from dents.

Limitations and Alternative Choices

While the Aluminium LED Photo Frame with Stand is a versatile tool, it has distinct limitations. It is not a weather-sealed unit; therefore, it is not suitable for use in heavy rain or high-humidity outdoor environments without additional protection. The LEDs, while bright, are generally not powerful enough to compete with direct midday sunlight. In an outdoor Goa beach shoot during the day, the image will appear washed out. For such scenarios, a high-brightness outdoor-rated digital LED wall or a non-illuminated vinyl banner with high-power external floodlights would be a more effective choice.

Furthermore, this is a static display. If the project requires moving images, video loops, or interactive content, a Professional 4K Display or an LED Video Wall is necessary. The frame is also limited by the quality of the print; a poor-quality print on standard paper will look worse when backlit, as the light will highlight every imperfection, fiber, and ink blotch. For photographers on a strict budget who do not require illumination, a standard Aluminium Snap Frame without the internal LED components is a lighter and more cost-effective alternative. Finally, for very large-scale installations (larger than 2 meters), the weight and structural requirements of a single frame become impractical, and a modular Truss-Mounted Backdrop System would be the preferred professional solution.
