HXR-NX5R NXCAM Professional Camcorder

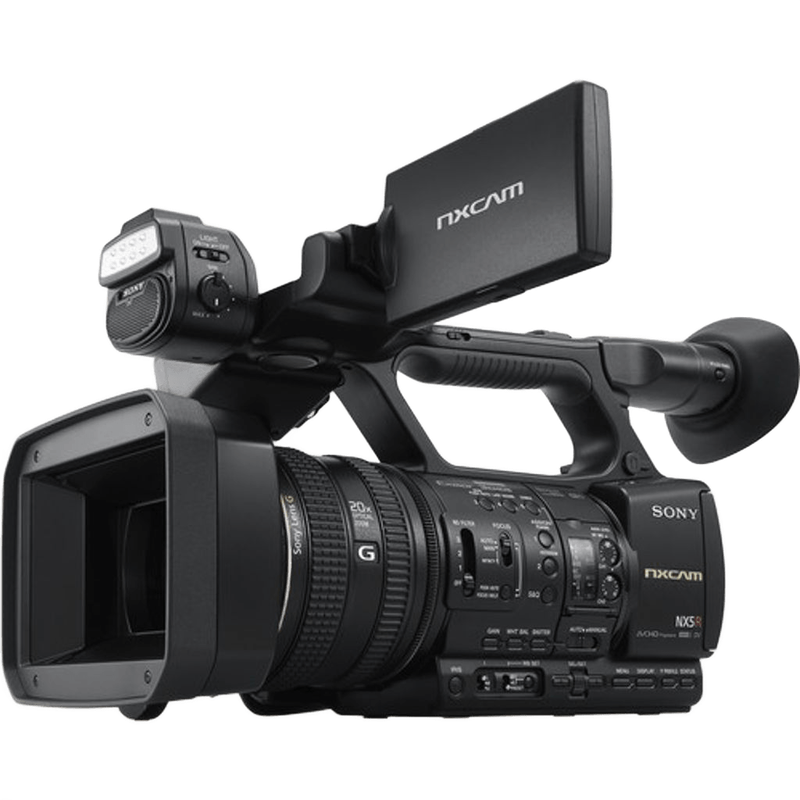

The Architecture of the Sony HXR-NX5R

The Sony HXR-NX5R is a professional Full HD camcorder that utilizes a sophisticated three-chip sensor architecture. Unlike single-sensor cameras that use a Bayer filter to interpolate color, this device employs a 1/2.8-inch 3CMOS sensor system. This configuration uses a high-grade glass prism to split incoming light into its constituent red, green, and blue wavelengths, directing each to a dedicated 2.07 million effective pixel Exmor R CMOS sensor. This results in high color accuracy and a signal-to-noise ratio that is significantly improved over single-chip designs of a similar size. Positioned as the high-performance successor to the HXR-NX5 and HXR-NX3, this camera is the flagship of the NXCAM line for users who require a fixed-lens, high-zoom solution with broadcast-standard outputs. It is designed specifically for corporate videographers, event shooters, and news gatherers who need a self-contained unit that integrates professional audio, a long-reach lens, and reliable recording media into a single chassis.

Optical Precision and Image Processing

The optical foundation of the Sony HXR-NX5R is a high-performance Sony G Lens with a 20x optical zoom range. In 35mm equivalent terms, this lens covers a focal range of 28.8mm at the wide end to 576mm at the telephoto end, providing the versatility to capture wide establishing shots and tight close-ups from a single position. The aperture ranges from f/1.6 at the wide end to f/11, allowing for operation in varied lighting conditions. To extend this reach further without the typical resolution loss associated with digital zoom, the camera incorporates Clear Image Zoom technology. This system uses "By Pixel Super Resolution" processing to extend the zoom to 40x (1152mm equivalent) while maintaining Full HD resolution. For managing exposure in bright environments, the camera features a built-in four-position mechanical ND filter wheel (Clear, 1/4, 1/16, and 1/64). Image quality is further enhanced by an integrated LED video light positioned above the lens, which delivers an illumination of approximately 200 lux at 1 meter, with a beam angle of 30 degrees and a color temperature of 5500K. This light includes a built-in diffuser and an adjustable brightness dial, providing immediate fill light for interviews or run-and-gun reporting.

Professional Handling and Tactile Control

The physical interface of the Sony HXR-NX5R is built for speed and precision during live shoots. It features three independent manual lens rings for focus, zoom, and iris. These rings are mechanically linked or provide high-resolution electronic feedback, allowing a camera operator to adjust all three exposure and composition variables simultaneously without looking away from the viewfinder. The camera offers two monitoring options: a high-contrast 0.39-type OLED viewfinder with 1.44 million dots, which provides excellent visibility in bright sunlight, and a 3.5-inch 1.55 million dot flip-out LCD screen for high-angle or low-angle monitoring. For audio, the camera includes two 3-pin XLR inputs with support for line, mic, and +48V phantom power, alongside a high-quality internal stereo microphone. The handling is further refined by a Multi-Interface (MI) Shoe, which provides power and signal connections to compatible Sony accessories, such as the UWP-D series wireless microphone receivers, without the need for external cables or separate batteries. Seven assignable buttons allow the operator to map frequently used functions like Zebra, Peaking, or the Digital Extender to physical switches for immediate access.

Video Codecs, Resolutions, and Connectivity

The Sony HXR-NX5R records Full HD (1920 x 1080) video at multiple frame rates and bitrates to suit different delivery requirements. The primary professional codec is XAVC S, which records at 50Mbps. This high-bitrate format uses Long GOP compression to balance file size with image data, providing enough overhead for moderate color grading in post-production. It supports frame rates of 60p, 30p, and 24p in NTSC mode, and 50p, 25p in PAL mode. For legacy workflows or long-form recording where storage space is a priority, the camera also supports AVCHD 2.0 and DV recording formats. A standout feature for professional integration is the 3G-SDI output, which provides a 10-bit 4:2:2 uncompressed signal at up to 1080/60p. This is critical for live broadcast environments or for connecting to high-end external recorders and vision mixers. The camera also includes a full-size HDMI Type A port, a composite BNC output, and a remote terminal (2.5mm stereo mini-jack) for tripod-mounted zoom and focus controllers. Dual SD card slots provide flexible recording options: "Simul" mode records to both cards at once for an instant backup, while "Relay" mode automatically switches to the second card when the first is full, enabling continuous recording for events that exceed the capacity of a single card.

Performance in Professional Indian Shoot Scenarios

In a Bengaluru wedding reception, the Sony HXR-NX5R excels due to its 3G-SDI output and low-light 3CMOS sensor. When the videographer needs to provide a live feed to large LED walls across a massive marriage hall, the 3G-SDI connection ensures a stable, high-definition signal over long cable runs that HDMI cannot sustain. The 20x optical zoom allows the operator to stand at the back of the hall and capture the exchange of garlands (varmala) with clarity, while the built-in LED light provides just enough fill to lift the shadows on the couple's faces without ruining the ambient lighting design of the venue.

For a travel documentary shoot in Goa, the camera’s integrated ND filters and compact form factor are essential. Moving from the bright, harsh sunlight of a beach at noon to the shaded interior of a Portuguese-era church, the operator can quickly toggle the mechanical ND filters to maintain a consistent iris setting and depth of field. The 28.8mm wide-angle lens is wide enough to capture the architecture of Old Goa, while the 40x Clear Image Zoom allows for capturing distant wildlife or candid shots of local artisans from a non-intrusive distance. The ability to record in XAVC S at 50Mbps ensures that the vibrant colors of the landscape are preserved for the final edit.

In a Mumbai-based corporate studio session, the camera functions as a reliable interview tool. The dual XLR inputs allow for a lavalier microphone on the subject and a shotgun microphone for backup or room tone, with independent level controls for each. The Wi-Fi and NFC capabilities allow a producer to monitor the frame on a tablet via the Content Browser Mobile application, ensuring the framing is correct while the camera operator focuses on the interview. The NP-F970 battery compatibility ensures the camera can run for several hours of continuous recording without needing a power outlet, which is vital for long-form corporate testimonials.

Compatibility, Media, and Power

The Sony HXR-NX5R is built around the industry-standard Sony L-series (NP-F) battery mount. Using a high-capacity NP-F970 battery, the camera can operate for approximately 240 minutes of continuous recording. It is compatible with SDHC and SDXC cards; however, for recording in the 50Mbps XAVC S codec, an SDXC card of Class 10 or higher is required (UHS-I Speed Class 3 is recommended for maximum reliability). The camera’s Multi-Interface Shoe is compatible with the SMAD-P3D adapter, allowing for a cable-free connection to dual-channel wireless receivers. For studio integration, the camera accepts 12V DC input via a dedicated barrel connector. It also features a built-in Wi-Fi module (2.4GHz) that supports FTP file transfers and remote control, as well as a wired LAN connection via a micro-USB to Ethernet adapter for stable streaming in environments with heavy wireless interference.

Limitations and Alternative Choices

While the Sony HXR-NX5R is a versatile workhorse, it has specific limitations that may lead a filmmaker to choose different equipment. The most significant limitation is the lack of 4K recording; this is a dedicated Full HD machine. If a project requires 4K delivery or the ability to crop into a 4K frame during a 1080p edit, the Sony PXW-Z150 or PXW-Z190 would be more appropriate choices. Furthermore, the 1/2.8-inch sensors are designed for deep focus and high zoom range rather than cinematic shallow depth of field. If the goal is to achieve a "blurred background" or "bokeh" look typical of modern cinema, a large-sensor camera like the Sony FX3 or FX6 with a fast prime lens would be necessary. The 3CMOS system, while excellent for color, does not match the low-light performance of a full-frame sensor; in extremely dark environments, the small pixels will eventually introduce noise that a larger sensor could avoid. Finally, the lens is fixed; if a shoot requires an ultra-wide perspective (wider than 28.8mm) or an extreme telephoto reach beyond what the 40x zoom can provide with clarity, an interchangeable lens system is the only viable alternative.
