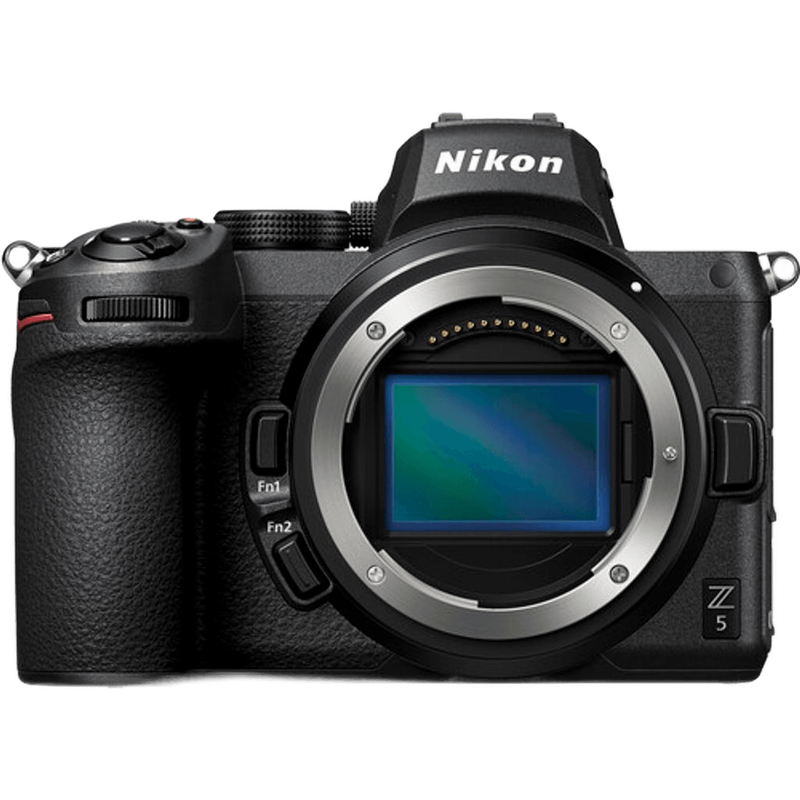

Z5 Mirrorless Camera with 24-120mm f/4.0 Lens

The Nikon Z5 and the Full-Frame Z-Mount Ecosystem

The Nikon Z5 is a full-frame mirrorless camera built around the Nikon Z-mount, featuring a 24.3-megapixel CMOS sensor and the EXPEED 6 image-processing engine. Positioned as the entry point into Nikon’s FX-format mirrorless lineup, it occupies the space directly below the Z6 II. Unlike the back-illuminated (BSI) sensors found in its higher-end siblings, the Z5 utilizes a traditional CMOS design that prioritizes cost-efficiency while maintaining the large surface area of a 35.9 x 23.9 mm sensor. This sensor size allows for a significant increase in light-gathering capability compared to DX or APS-C sensors, providing the shallow depth-of-field and wide dynamic range characteristic of full-frame photography. The camera is designed for photographers transitioning from DSLRs or crop-sensor systems who require the professional ergonomics of the Z-series—including a deep grip and weather-sealed construction—without the high-speed overhead of stacked sensors or high-bitrate video pipelines.

The Z-mount itself is a core component of this camera's identity. With an inner diameter of 55mm and a flange focal distance of only 16mm, the mount allows for lens designs that were physically impossible on the older F-mount. This includes ultra-fast apertures and improved corner-to-corner sharpness. The Nikon Z5 serves as a stable platform for these lenses, offering a native ISO range of 100 to 51,200, which can be expanded down to ISO 50 or up to ISO 102,400. The output is delivered in 14-bit or 12-bit NEF (RAW) files, as well as JPEGs and TIFFs, with a maximum image resolution of 6016 x 4016 pixels.

Sensor Performance and Image Fidelity

The 24.3MP sensor in the Nikon Z5 is engineered to balance resolution with noise management. While it lacks the BSI architecture of the Z6, it compensates with a high signal-to-noise ratio at lower ISOs, making it highly effective for landscape and studio work where base ISO is preferred. The EXPEED 6 processor handles diffraction compensation internally, which is particularly useful when shooting at narrow apertures like f/11 or f/16 to maintain sharpness across the frame. The camera also includes Nikon’s Creative Picture Controls, which apply specific color science parameters to the RAW and JPEG data, though the RAW files retain the full latitude for post-processing in software like Adobe Lightroom or Capture One.

A standout technical feature of the Nikon Z5 is its 5-axis in-body image stabilization (IBIS) system. This sensor-shift mechanism provides up to 5.0 stops of compensation, stabilizing the image across five directions: yaw, pitch, roll, and X and Y axes. This is particularly relevant when using non-stabilized prime lenses, such as the Z 35mm f/1.8 S or the Z 50mm f/1.8 S, as it allows for much slower shutter speeds during handheld shooting without introducing motion blur. When an FTZ adapter is used to mount older F-mount lenses with built-in Vibration Reduction (VR), the camera’s IBIS works in tandem with the lens’s VR to optimize stability.

Autofocus Precision and Physical Handling

The Nikon Z5 utilizes a 273-point hybrid autofocus system that covers approximately 90% of the sensor area both horizontally and vertically. This system employs a combination of focal-plane phase-detection AF and contrast-detect AF, allowing the camera to switch between methods depending on the lighting conditions and the subject. The AF system is rated to operate down to -3 EV, or -4 EV when the Low-Light AF mode is engaged, which is sufficient for focusing in environments lit by a single candle or dim streetlights. The camera includes sophisticated subject-tracking algorithms, specifically Human and Animal Eye-Detection AF, which can lock onto the eyes of people, dogs, and cats in both single-point and wide-area AF modes.

In terms of handling, the Nikon Z5 does not compromise on build quality. The top and front covers are constructed from magnesium alloy, providing a rigid frame that is fully weather-sealed against dust and moisture. The electronic viewfinder (EVF) is a 3.6-million-dot Quad VGA panel with 0.8x magnification, utilizing Nikon’s proprietary optics to ensure a clear, distortion-free view from corner to corner. Below the EVF is a 3.2-inch, 1.04-million-dot tilting touchscreen LCD, which facilitates shooting from high or low angles. Perhaps most importantly for professional reliability, the Z5 features dual UHS-II SD card slots. These can be configured for overflow, backup, or to separate RAW and JPEG files, providing a level of data redundancy not found in the original Z6 or Z7 models.

Video Specifications and Limitations

While primarily a stills-focused tool, the Nikon Z5 offers 4K UHD video recording at 30p, 25p, and 24p. However, it is important to note that 4K recording incurs a 1.7x crop factor. This means the field of view is narrowed significantly; for example, a 24mm lens will behave like a 40mm lens when recording in 4K. For those requiring the full width of the sensor, the camera records 1080p Full HD at up to 60p without a crop. Video is recorded internally in 8-bit H.264/MPEG-4 AVC format. The camera does not support 10-bit internal recording, N-Log, or RAW video output, which positions it as a tool for quick content creation or b-roll rather than high-end cinematography.

The video feature set includes electronic Vibration Reduction (e-VR) which can be used in addition to the sensor-shift IBIS for smoother handheld pans, though this adds a slight further crop to the frame. Focus peaking and zebra stripes are available in the display to assist with manual focus and exposure management. The camera is equipped with both a 3.5mm microphone input and a 3.5mm headphone jack for real-time audio monitoring. The maximum recording time per clip is 29 minutes and 59 seconds, adhering to standard recording limits for this class of device.

The Nikon Z5 on the Indian Shoot

In a wedding environment, such as a brightly lit evening reception in Bengaluru, the Nikon Z5 serves as an excellent secondary body or a primary body for candid portraiture. The Eye-Detection AF is particularly useful here, as it can track guests moving through the frame under artificial lighting. The dual SD card slots provide the necessary security for "once-in-a-lifetime" events, ensuring that a single card failure does not result in the loss of the couple's photos. The 5-axis IBIS allows the photographer to capture sharp images of the decor and guests at shutter speeds as low as 1/10th of a second, which is vital when trying to maintain the ambient mood of the venue without resorting to heavy flash.

For a travel shoot across the varied landscapes of Goa, the camera’s weather sealing and USB power delivery are significant advantages. The magnesium alloy chassis can withstand the high humidity and occasional sea spray of coastal environments. Because the Z5 supports USB Power Delivery (USB-PD), it can be charged or powered directly via a power bank through its USB-C port. This is a critical feature for long days in the field where access to wall outlets is limited. The 24.3MP resolution provides enough detail for large prints of the architecture in Old Goa while keeping file sizes manageable for quick transfers to mobile devices via the SnapBridge app.

In a Mumbai-based commercial studio setting, the Nikon Z5 functions as a reliable workhorse for product photography and lookbooks. When tethered to a computer via the USB-C port, the EXPEED 6 processor ensures fast image transfer for immediate review by clients or art directors. The 273 AF points allow for precise focus placement on small product details, and the tilting screen is indispensable when the camera is mounted on a tripod at awkward heights. While it lacks the ultra-high resolution of the Z7 II, 24.3MP is more than sufficient for high-quality e-commerce listings and standard magazine spreads.

Compatibility, Power, and Media

The Nikon Z5 is compatible with the full range of Nikkor Z-mount lenses. When used with the Mount Adapter FTZ or FTZ II, it gains compatibility with approximately 360 F-mount Nikkor lenses, maintaining full AF/AE functionality with AF-S, AF-P, and AF-I lenses. This makes it an ideal choice for photographers who have an existing collection of DSLR glass. The camera uses the EN-EL15c rechargeable Li-ion battery, which is optimized for the higher power demands of mirrorless systems and allows for charging while the camera is in operation. It remains backwards compatible with EN-EL15b and EN-EL15a batteries, though with reduced shot counts and no in-camera charging for the oldest variants.

For storage, the dual slots accept UHS-II compliant SDHC and SDXC cards. Using UHS-II cards is recommended to ensure the buffer clears quickly during burst shooting, which maxes out at 4.5 frames per second. The camera also features a Type C HDMI connector for external monitoring, a built-in accessory terminal for remote triggers like the MC-DC2, and is compatible with the MB-N10 battery pack for extended shooting sessions and improved vertical handling.

Limitations and Alternative Considerations

While the Nikon Z5 is a versatile full-frame tool, it has specific limitations that may make other models more suitable for certain tasks. The most prominent limitation is the 4.5 fps maximum continuous shooting speed. For sports, wildlife, or high-speed action photography, this is significantly slower than the 12 fps or 14 fps offered by the Z6 II or the flagship Z9. Photographers specializing in fast-moving subjects will find the buffer and frame rate of the Z5 restrictive.

In the realm of video, the 1.7x crop in 4K is a major hurdle for wide-angle cinematography. If your work requires 4K video using the full width of a 24mm or 14mm lens, the Nikon Z6 II is a more appropriate choice as it offers uncropped 4K. Furthermore, the Z5 lacks the high-speed readout of a BSI sensor, which results in more noticeable rolling shutter (jello effect) during fast camera pans compared to higher-end models. Finally, for studio photographers requiring extreme detail for large-scale billboards or heavy cropping, the 45.7MP sensor of the Nikon Z7 II or Z8 would be the logical step up from the 24.3MP provided here.

• Sensor: 24.3MP Full-Frame CMOS (35.9 x 23.9 mm)
• Processor: EXPEED 6
• Mount: Nikon Z Mount
• ISO Range: 100-51,200 (Expandable to 50-102,400)
• Autofocus: 273-Point Hybrid Phase-Detection/Contrast AF
• Stabilization: 5-Axis In-Body Image Stabilization (5.0 Stops)
• Video: 4K UHD at 30p (1.7x Crop), 1080p at 60p (No Crop)
• Burst Rate: 4.5 fps
• Viewfinder: 3.6m-dot OLED EVF, 0.8x Magnification
• Monitor: 3.2-inch Tilting Touchscreen LCD, 1.04m-dot
• Storage: Dual UHS-II SD Card Slots
• Battery: EN-EL15c (Supports USB Power Delivery)
• Construction: Magnesium Alloy Chassis, Weather-Sealed
