RF 16mm f/2.8

The Ultra-Wide Prime for the RF Ecosystem

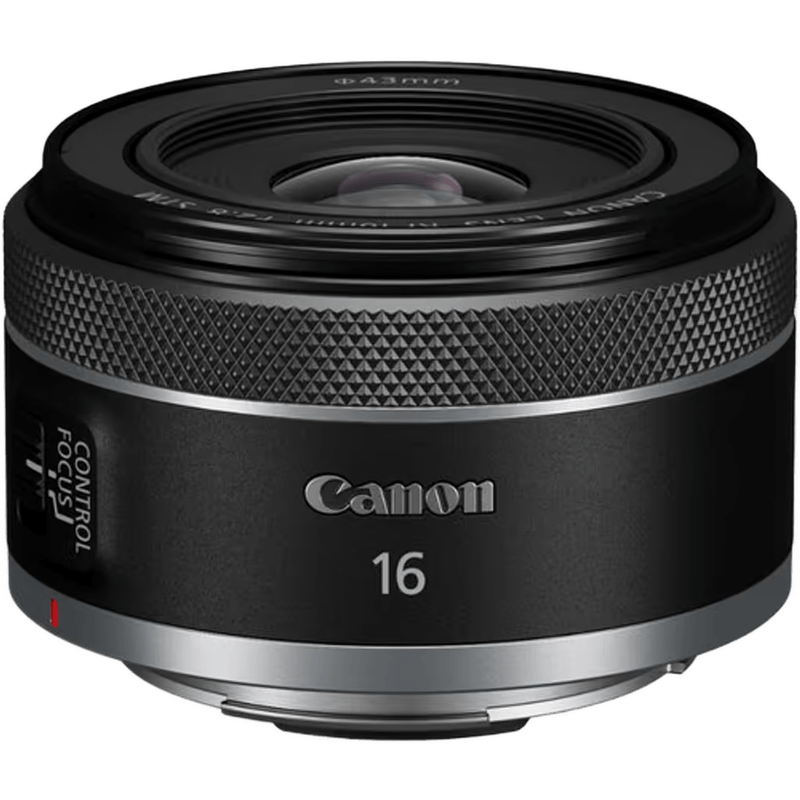

The Canon RF 16mm f/2.8 STM represents a specific shift in optical design for the EOS R system, prioritizing extreme portability and a wide field of view in a form factor previously reserved for standard prime lenses. This is a full-frame ultra-wide-angle prime lens that utilizes a 9-element in 7-group optical formula. It is positioned as an accessible entry point into ultra-wide photography, sitting below the L-series zooms while offering a faster maximum aperture than many kit-standard wide-angle options. Designed primarily for vloggers, landscape photographers, and architectural shooters who require a lightweight kit, this lens weighs approximately 165 grams and measures only 40.1mm in length when retracted. It occupies a unique space in the lineup as the first non-L series ultra-wide prime for the RF mount, filling a gap for users who find the 24mm or 35mm focal lengths too restrictive for tight interiors or expansive vistas.

Optical Performance and Light Management

The image quality of the Canon RF 16mm f/2.8 STM is defined by its use of a single PMo (Plastic Molded) aspherical element. This specific element is positioned at the front of the optical stack to combat spherical aberrations and maintain image clarity across the 108-degree diagonal angle of view. Because the lens is designed for the short flange back distance of the RF mount, the rear element is positioned close to the sensor, which aids in maintaining a compact profile while managing light fall-off. The lens features a 7-blade circular aperture diaphragm, which produces smooth out-of-focus highlights when shooting at the minimum focusing distance. To manage flare and ghosting—common issues with ultra-wide optics—Canon has applied Super Spectra Coating to the elements. This coating is particularly effective when shooting into the sun or under harsh studio lighting, ensuring that contrast remains high even when light sources are positioned just outside the frame. It is important to note that this lens relies on integrated digital lens corrections within the EOS R series cameras to manage barrel distortion and vignetting, a design choice that allows the physical glass to remain significantly smaller and lighter than traditional 16mm designs.

Autofocus Mechanism and Physical Handling

Handling on a shoot is driven by the gear-type STM (Stepping Motor) autofocus system. This motor is optimized for smooth, quiet transitions, which is a critical requirement for video recording where microphone interference must be minimized. The autofocus system supports full-time manual focusing, allowing the user to override the AF system without switching modes. A defining characteristic of the lens body is the dual-purpose Control/Focus ring. A physical switch on the lens barrel allows the user to toggle this ring between focusing duties and a programmable control function. When set to "Control," the ring can be mapped to adjust ISO, aperture, shutter speed, or exposure compensation in 1/3 stop increments. The lens features a 43mm filter thread, which is exceptionally small for a 16mm lens, allowing for the use of affordable and lightweight screw-on filters. The minimum focusing distance is a mere 0.13 meters (approx. 5.1 inches), providing a maximum magnification of 0.26x. This allows for "wide-angle macro" shots where a subject can be placed very close to the glass while still retaining a massive amount of environmental context in the background.

Video Capabilities and Field of View

For video creators, the 16mm focal length provides a specific utility that longer primes cannot match. On a full-frame sensor, it offers a 108-degree 10-minute diagonal field of view, which is wide enough to keep a presenter’s head and shoulders in frame at arm's length while also showing a significant portion of the surrounding environment. When used on APS-C sensor bodies like the EOS R7 or R10, the 1.6x crop factor results in an effective focal length of 25.6mm, transforming it into a standard wide-angle lens suitable for general videography. The lens does not feature internal Optical Image Stabilization (OIS). Instead, it relies on the In-Body Image Stabilizer (IBIS) found in cameras like the EOS R5, R6 Mark II, or R3. On cameras without IBIS, such as the EOS R8 or R10, the lens utilizes Movie Digital IS, which introduces a slight crop but works in tandem with the 16mm width to produce stable handheld footage. Focus breathing is present but is largely mitigated by the "Focus Breathing Compensation" feature available in the latest EOS R firmware, which digitally adjusts the crop to maintain a consistent field of view during focus pulls.

On the Shoot: Indian Production Scenarios

In a wedding photography context in Bengaluru, specifically during a crowded reception at a palace hotel or a traditional hall, the 16mm focal length is used to capture the scale of the decor and the entire guest assembly in a single frame. In tight dressing rooms where a 35mm lens would only capture a tight portrait, the 16mm allows the photographer to document the bride’s full attire along with the surrounding family members, even when standing less than two meters away. The f/2.8 aperture is particularly useful here, allowing for clean images in the often-dim ambient lighting of indoor venues without needing to rely heavily on on-camera flash.

For a travel shoot in Goa, the lens excels in capturing the architecture of Old Goa's churches or the expansive horizons of the coastline. Its 165g weight makes it an ideal choice for long days of walking or trekking to remote beaches like Butterfly Beach, where heavy gear is a hindrance. When mounted on a lightweight gimbal or even a handheld grip, it allows a solo creator to walk and talk to the camera, capturing the vibrant colors of the Latin Quarter in Fontainhas without the "shaky cam" effect that often plagues narrower focal lengths. The 43mm filter thread allows for the quick attachment of a Variable ND filter, essential for maintaining a 180-degree shutter angle under the bright midday Goan sun.

In a Mumbai-based commercial studio, this lens is frequently used for "Behind the Scenes" (BTS) videography. Because Mumbai studios are often optimized for space, a BTS shooter needs to capture the primary photographer, the model, the lighting rigs, and the monitors all in one shot. The 16mm width ensures that even in a cramped studio in Lower Parel, the entire production scale is visible. Furthermore, for real estate photography of high-rise apartments in Bandra or Worli, the 16mm focal length is essential for making compact urban rooms feel spacious and inviting, provided the camera is leveled to avoid converging vertical lines.

Compatibility and Essential Pairings

The Canon RF 16mm f/2.8 STM is natively compatible with all Canon EOS R-series mirrorless cameras. It uses the RF mount, which features a 12-pin connection for high-speed data communication between the lens and the body. This allows for real-time Digital Lens Optimizer (DLO) data to be processed in-camera, correcting for the lens's natural distortion and peripheral illumination fall-off. When pairing this lens with media, high-speed UHS-II SD cards are recommended for video work to handle the data rates of 4K 60p recording on bodies like the R6 Mark II. For power, it draws minimally from the camera's LP-E6NH or LP-E17 batteries as it lacks power-hungry features like internal stabilization. It pairs exceptionally well with the Canon Mount Adapter EF-EOS R if the user is transitioning from a DSLR system, though this lens is designed to replace the need for bulky EF ultra-wides. For filtration, a 43mm Circular Polarizer is a common pairing to enhance the blues of the sky and manage reflections in architectural glass or water.

Limitations and Alternative Choices

While the Canon RF 16mm f/2.8 STM is a highly capable tool, it has distinct limitations that may lead a professional to choose a different optic. The most significant trade-off for its size is the heavy reliance on software correction. In RAW files without a lens profile applied, there is significant barrel distortion and heavy vignetting at the corners. For high-end architectural work where absolute geometric precision is required before digital manipulation, the RF 14-35mm f/4L IS USM or the RF 15-35mm f/2.8L IS USM are superior choices, as they offer better edge-to-edge sharpness and significantly less native distortion. The STM motor, while quiet, is not as instantaneous or as silent as the Nano USM motors found in L-series lenses, which may be a factor for high-speed action or critical audio recording in silent environments. Additionally, this lens lacks weather sealing; it does not have a rubber gasket at the mount, making it less suitable for use in heavy rain or dusty environments like a desert shoot in Rajasthan. Photographers who require a wider field of view than 108 degrees should look toward the RF 10-20mm f/4L IS STM, which offers a much more dramatic perspective at the cost of a larger footprint and a higher price point. Finally, for those who need a lens primarily for low-light astrophotography, while f/2.8 is respectable, the coma performance at the extreme edges of this lens is not as refined as specialized wide-angle primes, making the L-series alternatives more appropriate for professional star-scape imaging.
