55-300mm f/4.5-5.6G VR lens

The Nikon AF-S DX Nikkor 55-300mm f/4.5-5.6G ED VR: Optical Design and Purpose

The Nikon AF-S DX Nikkor 55-300mm f/4.5-5.6G ED VR is a high-ratio telephoto zoom lens specifically engineered for the Nikon DX-format (APS-C) sensor ecosystem. It provides a focal length range that, when adjusted for the 1.5x crop factor of DX sensors, delivers an effective field of view equivalent to 82.5mm to 450mm on a 35mm full-frame camera. This 5.5x zoom range positions the lens as a dedicated long-reach tool, sitting above the standard 18-55mm kit lens and the 55-200mm mid-range telephoto in Nikon’s consumer lineup. It was designed for photographers who require significant magnification for subjects that are physically inaccessible, such as wildlife, field sports, and distant architectural details, while maintaining a compact form factor that weighs approximately 530 grams.

The optical formula consists of 17 elements arranged in 11 groups. A defining characteristic of this lens is the inclusion of a High Refractive Index (HRI) lens element. At the time of its release, this was a relatively new technology for Nikkor lenses, allowing a single element to offer the corrective power of several standard glass elements. This design choice was instrumental in keeping the lens barrel shorter and lighter than traditional 300mm zooms. The lens utilizes a Nikon F-mount with a "G" designation, meaning it lacks a physical aperture ring and relies on electronic communication with the camera body to control the diaphragm. The 9-blade rounded diaphragm is designed to provide a more natural rendering of out-of-focus highlights compared to straight-blade designs.

Image Quality and Optical Technologies

The Nikon AF-S DX Nikkor 55-300mm f/4.5-5.6G ED VR incorporates two Extra-low Dispersion (ED) glass elements. These elements are critical for a lens with a 450mm equivalent reach, as they are specifically designed to minimize chromatic aberration—the color fringing that often occurs at the edges of high-contrast subjects when using long focal lengths. By focusing various wavelengths of light onto the same focal plane, the ED glass ensures that images remain sharp and color-accurate even at the 300mm end of the zoom range. Complementing this is Nikon’s Super Integrated Coating (SIC), which is applied to the lens elements to reduce ghosting and internal flare. This is particularly relevant when shooting in backlit conditions or under harsh overhead sunlight, as it preserves contrast and prevents the "washed out" look common in lower-quality telephoto optics.

The HRI element mentioned previously does more than just reduce the lens's physical size; it also works to correct spherical aberration and curvature of field. This results in more consistent sharpness across the frame, from the center to the corners. While the maximum aperture of f/4.5 at the wide end and f/5.6 at the long end is standard for consumer zooms, the lens relies on its internal optical corrections to maintain usable resolution throughout the aperture range. The 9-blade diaphragm produces a circular aperture, which helps in creating a smooth, pleasing blur in the background (bokeh), which is essential for isolating a subject from a cluttered environment, such as a bird in a tree or a player on a sports field.

Autofocus Performance and Vibration Reduction

Handling this lens on a shoot is defined by two primary mechanical systems: the Silent Wave Motor (SWM) and the Vibration Reduction (VR II) system. The SWM allows for quiet autofocusing, which is a requirement for photographing skittish wildlife or recording video where motor noise could be picked up by internal microphones. However, it is important to note that this is a "Micro" SWM rather than the "Ring-type" SWM found on professional-grade lenses; as such, it does not support full-time manual focus override. To switch to manual focus, the user must physically toggle the A-M switch on the lens barrel. The autofocus speed is optimized for steady subjects and moderate movement, making it well-suited for portraiture and slow-moving animals, though it may struggle with high-speed erratic action.

The VR II (Vibration Reduction) system is a critical inclusion for a lens with a 300mm maximum focal length. At the 300mm end, even the slightest hand tremor is magnified significantly, often resulting in motion blur. The VR II system in this lens provides up to 4 stops of compensation. This allows a photographer to shoot at shutter speeds much slower than the traditional "1/focal length" rule would suggest. For example, at 300mm, where one might normally need a shutter speed of 1/500s to ensure sharpness, the VR II system can enable sharp handheld shots at 1/60s or even 1/30s in stable hands. The lens also features a tripod detection mode, though it is generally recommended to turn VR off when the camera is mounted on a sturdy tripod to avoid feedback loops in the stabilization system. The front element of the lens rotates during focusing, which is a key handling consideration for users of circular polarizers or graduated neutral density filters.

Video Capability and Limitations

When used for video, the Nikon AF-S DX Nikkor 55-300mm f/4.5-5.6G ED VR offers a unique perspective through its extreme focal length compression. At 300mm, the lens can make distant objects appear much closer to the foreground, a cinematic effect often used to create a sense of scale or tension. The VR II system is particularly beneficial for video, as it smooths out the high-frequency jitters associated with handheld filming at long focal lengths. This makes it possible to capture usable "b-roll" of distant subjects without always requiring a tripod.

However, there are honest limitations to consider for video production. The autofocus system, while quiet, is not silent, and the "hunting" behavior of the contrast-detect AF found in many older Nikon DX DSLRs can be visible in the footage. For professional video results, manual focusing is often preferred. Because the front element rotates during focus, using a matte box or a screw-in variable ND filter becomes difficult, as the orientation of the filter will change every time the focus is adjusted. Additionally, the variable maximum aperture (f/4.5 to f/5.6) means that if you zoom in while recording, the exposure will darken slightly as the lens moves toward the 300mm end. Videographers should set their exposure based on the f/5.6 aperture if they plan to zoom during a take to maintain consistent brightness.

On the Shoot: Indian Photography Scenarios

In a wildlife photography scenario at Ranthambore National Park, the 55-300mm range is highly effective. A tiger spotted at a distance of 50 meters can be framed tightly at 300mm, while the 55mm end allows for environmental shots that include the surrounding deciduous forest and rocky outcrops. The VR II system is indispensable here, as shooting from a moving or idling gypsy (safari vehicle) introduces significant vibration. The lens's ability to compensate for 4 stops of shake allows the photographer to keep the ISO lower during the "golden hour" of dawn and dusk when tigers are most active but light is scarce.

During a cricket match at the Eden Gardens in Kolkata, the lens serves as an entry-level sports optic. From the stands, the 300mm reach (450mm equivalent) is sufficient to capture a batsman's follow-through or a bowler's delivery stride. The lightweight build of the lens is a benefit during a long day of shooting in the heat, as it does not cause the fatigue associated with heavy f/2.8 telephoto lenses. However, the f/5.6 maximum aperture at the long end means that as the stadium lights take over in the evening, the photographer will need to rely on the high-ISO capabilities of their camera body to maintain the fast shutter speeds (1/1000s or higher) required to freeze the motion of the ball.

For street photography in the narrow lanes of Varanasi, the lens offers a way to capture candid moments from a distance without intruding on the subject's personal space. Standing on a ghat, a photographer can use the 300mm reach to capture the intricate details of a ceremony on a distant boat or the textures of the ancient architecture across the Ganges. The compression of the telephoto lens can make the crowded ghats look even more densely packed, emphasizing the scale of the gathering. The 1.4-meter minimum focus distance throughout the zoom range also allows for tight headshots of local artisans or pilgrims, providing a comfortable working distance that preserves the authenticity of the scene.

Compatibility and Pairings

The Nikon AF-S DX Nikkor 55-300mm f/4.5-5.6G ED VR is designed for Nikon DX-format DSLRs. It is fully compatible with the D3000 series (e.g., D3300, D3500), the D5000 series (e.g., D5300, D5600), and the D7000 series (e.g., D7200, D7500), as well as the pro-sumer D300s and D500. On these bodies, it provides full autofocus and vibration reduction functionality. While it can be mounted on full-frame (FX) Nikon DSLRs like the D850 or D780, the camera will automatically switch to "DX Crop Mode," significantly reducing the resolution of the final image to avoid heavy vignetting, as the lens's image circle does not cover a full-frame sensor.

For users of the Nikon Z-mount mirrorless system (such as the Z50, Z fc, or Z30), this lens can be used via the FTZ or FTZ II Mount Adapter. In this configuration, the VR and autofocus will still function, though the balance may feel front-heavy on the smaller mirrorless bodies. The lens uses a 58mm filter thread, making it compatible with a wide range of affordable polarizers and ND filters. It is often paired with the AF-S DX Nikkor 18-55mm f/3.5-5.6G VR II to create a "two-lens kit" that covers everything from wide-angle landscapes to extreme telephoto subjects with no gaps in focal length coverage.

Who Should Choose Something Else

While the Nikon AF-S DX Nikkor 55-300mm f/4.5-5.6G ED VR is a versatile tool, it has clear boundaries. Professional sports and action photographers should look toward lenses with a constant f/2.8 aperture, such as the 70-200mm f/2.8. The f/5.6 limit at the long end of the 55-300mm necessitates very high ISO settings in low-light indoor stadiums, which can lead to noisy images. Furthermore, the "Micro" SWM autofocus is not fast enough to reliably track subjects moving directly toward the camera at high speeds, such as a racing car or a bird in flight; for these applications, a lens with a "Ring-type" SWM or the newer AF-P (Pulse Motor) technology would be more effective.

Users who prioritize build quality and weather sealing may find the plastic mount and lack of a rubber gasket on the 55-300mm a limitation in extreme environments like heavy rain or dusty deserts. In such cases, the Nikon AF-S 70-300mm f/4.5-5.6G IF-ED VR (an FX lens) offers a more robust build and faster internal focusing (IF). Finally, if you are shooting on a full-frame Nikon body, this DX lens is not the correct choice, as you would be wasting a large portion of your sensor's resolution. Full-frame users should instead opt for the AF-P NIKKOR 70-300mm f/4.5-5.6E ED VR, which provides the full field of view and superior edge-to-edge sharpness on FX sensors.

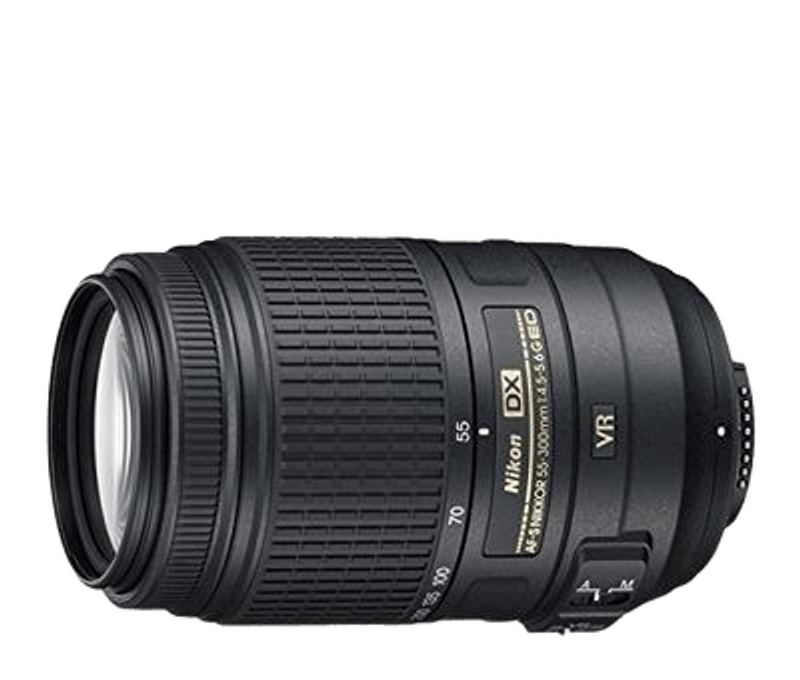

Nikon 55-300mm f/4.5-5.6G VR lens

Technical Specifications:

• Mount Type: Nikon F-Bayonet
• Focal Length Range: 55-300mm
• Zoom Ratio: 5.5x
• Maximum Aperture: f/4.5
• Minimum Aperture: f/22
• Format: DX
• Maximum Angle of View (DX-format): 28°50′
• Minimum Angle of View (DX-format): 5°20′
• Maximum Reproduction Ratio: 0.28x
• Lens Elements: 17
• Lens Groups: 11
• High Refractive Index Elements: 1
• Compatible Format(s): DX, FX in DX Crop Mode
• VR (Vibration Reduction/Image Stabilization): Yes
• Diaphragm Blades: 9
• Distance Information: Yes
• ED Glass Elements: 2
• Super Integrated Coating: Yes
• Autofocus: Yes
• AF-S (Silent Wave Motor): Yes
• Minimum Focus Distance: 4.6 ft. (1.4m) throughout entire zoom range
• Focus Mode: Auto/Manual
