The Nikon 55-200mm f/4-5.6G AF-S VR DX IF-ED Architecture

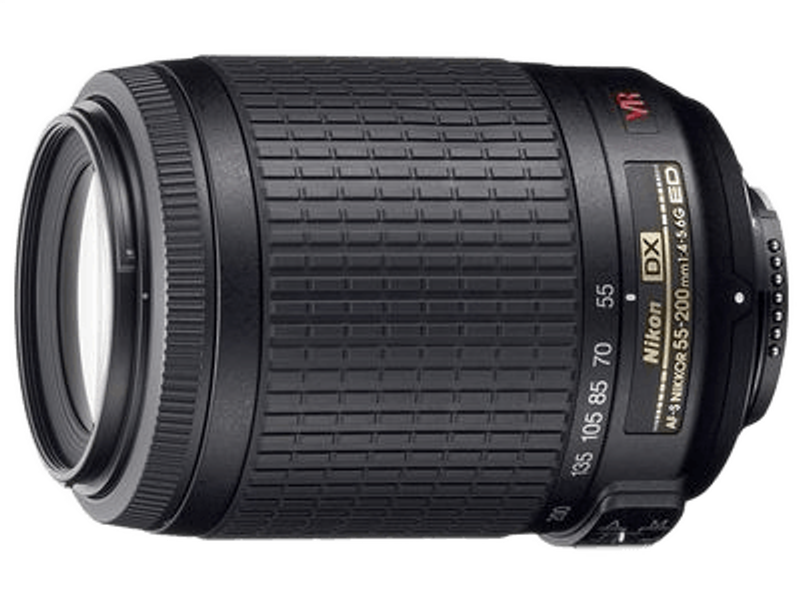

The Nikon 55-200mm f/4-5.6G AF-S VR DX IF-ED is a dedicated telephoto zoom lens designed specifically for the Nikon DX-format image sensor. Within the Nikon Nikkor lineup, this lens serves as the primary telephoto companion to the standard 18-55mm kit lens, extending the reach of a DX-format DSLR from a portrait-length 55mm to a significant 200mm. When mounted on a DX sensor with a 1.5x crop factor, the effective focal length is equivalent to 82.5-300mm in 35mm terms. This range covers everything from tight portraits to distant sports and wildlife subjects.

The optical formula consists of 15 elements arranged in 11 groups. This complex arrangement is necessitated by the need to maintain a compact form factor while providing a 3.6x zoom range. The "DX" designation indicates that the lens produces an image circle optimized for APS-C sized sensors; while it can be mounted on FX (full-frame) bodies, the camera will automatically engage a crop mode to avoid heavy vignetting. The lens is built with a focus on portability, weighing approximately 335 grams and measuring 73mm by 99.5mm when retracted. This makes it one of the lightest telephoto options available for the F-mount system, designed for photographers who require long-reach capabilities without the physical burden of professional-grade f/2.8 telephoto glass.

Optical Technologies and Image Quality

The Nikon 55-200mm f/4-5.6G AF-S VR DX IF-ED incorporates several specific Nikon optical technologies to manage light and minimize aberrations. A primary feature is the inclusion of one Extra-low Dispersion (ED) glass element. ED glass is engineered to reduce chromatic aberration, specifically the color fringing that often occurs at the edges of high-contrast subjects when using longer focal lengths. By better concentrating the light spectrum onto the same focal plane, the ED element ensures that the 200mm output remains sharp with accurate color rendition.

To combat internal reflections and flare, Nikon has applied the Super Integrated Coating (SIC) to the lens elements. This multilayer coating improves light transmission efficiency and offers consistency in color balance, which is critical when shooting into the sun or under harsh stadium lighting. The aperture mechanism utilizes seven rounded diaphragm blades. This rounding is designed to produce a more natural, circular rendering of out-of-focus highlights (bokeh) compared to straight-edged blades, which is particularly noticeable when the lens is used at its maximum aperture of f/4 at the 55mm end or f/5.6 at the 200mm end.

The Vibration Reduction (VR) system is a defining characteristic of this lens. It uses an internal voice coil motor to shift lens elements to compensate for camera shake. This system provides approximately 3 stops of compensation, allowing for sharper handheld images at shutter speeds that would otherwise result in blur. For example, at the 200mm focal length, where a shutter speed of 1/320s might typically be required for a sharp handheld shot, the VR system enables successful captures at speeds as low as 1/40s, depending on the stability of the operator.

Autofocus Performance and Mechanical Handling

The "AF-S" designation signifies the presence of Nikon’s Silent Wave Motor (SWM). This ultrasonic motor converts "traveling waves" into rotational energy to focus the optics. In practice, this results in high-speed autofocus that is significantly quieter than older screw-drive lenses. Because the motor is housed within the lens itself, the Nikon 55-200mm f/4-5.6G AF-S VR DX IF-ED is fully compatible with all Nikon DX DSLRs, including entry-level bodies like the D3000 and D5000 series which lack internal autofocus motors.

The lens employs an Internal Focusing (IF) design. In an IF system, only the internal lens groups move during focusing, meaning the physical length of the lens does not change and the front element does not rotate. This is a critical advantage for photographers using circular polarizers or graduated neutral density filters, as the filter orientation remains constant regardless of focus adjustments. The focus ring is located toward the front of the lens barrel, while the larger zoom ring occupies the central portion of the barrel. The lens features a dedicated switch for A/M (Autofocus/Manual) and a separate switch to toggle the Vibration Reduction system on or off. The build is primarily high-quality polycarbonate, including the lens mount, which contributes to its lightweight profile but requires careful handling when mounting and unmounting.

Video Performance and Limitations

When used for video, the Nikon 55-200mm f/4-5.6G AF-S VR DX IF-ED offers a stabilized telephoto perspective that is useful for capturing B-roll or distant subjects. The VR system remains active during video recording, which is essential for handheld work at focal lengths beyond 100mm, where every micro-movement is magnified. The SWM motor provides relatively quiet autofocus transitions, though the sound of the motor may still be picked up by on-camera microphones in very quiet environments. For professional audio, external microphones are recommended.

There are specific limitations to consider for cinematography. This is a variable aperture lens; as you zoom from 55mm to 200mm, the maximum aperture narrows from f/4 to f/5.6. If recording in a manual exposure mode with the aperture wide open at 55mm, the image will darken as you zoom in, requiring a compensation in ISO or shutter speed. Additionally, like most photography-centric zooms, this lens is not par-focal; focus may shift slightly while zooming, necessitating a refocus after changing the focal length. The focus throw is relatively short, which makes fine manual focus pulls challenging compared to dedicated cinema glass. However, for static shots or tracking subjects with AF-F (Full-time Servo AF) on modern Nikon bodies, the lens provides a functional telephoto solution for 1080p and 4K video capture.

Operational Scenarios in the Field

In a wedding scenario, such as a large reception in a Bengaluru banquet hall, the Nikon 55-200mm f/4-5.6G AF-S VR DX IF-ED allows the photographer to stay at the periphery of the room while capturing candid expressions on the stage. At 200mm, the lens can isolate the couple from a busy background, and the VR system compensates for the dim, ambient lighting often found in indoor venues, allowing for cleaner shots without always relying on a flash. The lightweight build is a benefit during long 8-to-12-hour wedding days, reducing wrist fatigue compared to heavier 70-200mm f/2.8 alternatives.

For a travel shoot in the Western Ghats or a wildlife excursion in Ranthambore, this lens serves as a compact long-reach tool. While it does not have the reach of a 600mm prime, the 200mm (300mm equivalent) is sufficient for capturing larger mammals or birds at moderate distances. Its 52mm filter thread is a standard size, making it easy to share filters with an 18-55mm kit lens. In the dusty environments of a safari, the Internal Focusing design is an advantage as it reduces the "air-pump" effect that can draw dust into the internal chambers of the lens, though it should be noted the lens is not fully weather-sealed.

In a Mumbai studio setting for a product session, the 55-200mm can be used to achieve significant compression. When shooting smaller products, using the longer end of the zoom range allows the photographer to stand further back, providing ample room for lighting modifiers between the camera and the subject. The 1.1-meter minimum focus distance across the entire zoom range allows for a maximum reproduction ratio of 1:4.3, which is capable of capturing detailed close-ups of jewelry or electronics without the need for a dedicated macro lens.

Compatibility and Pairing Essentials

The Nikon 55-200mm f/4-5.6G AF-S VR DX IF-ED uses the Nikon F-mount. It is optimized for DX-format cameras such as the Nikon D3500, D5600, D7500, and the older D90 or D300s. It is also compatible with Nikon Z-series mirrorless cameras, such as the Z50 or Z fc, when used via the FTZ or FTZ II mount adapter. On these mirrorless bodies, the lens retains full autofocus and VR functionality.

The lens uses 52mm screw-in filters. Essential pairings include a circular polarizer for outdoor landscape work to manage reflections and enhance sky saturation. It is typically paired with the AF-S DX NIKKOR 18-55mm f/3.5-5.6G VR II to create a two-lens kit that covers everything from wide-angle to telephoto. For power, the lens draws from the camera body's battery (such as the EN-EL14a or EN-EL15c); while the VR system does consume a small amount of additional power, it is generally negligible over a standard day of shooting. The lens comes with the HB-37 bayonet hood, which is highly recommended to prevent stray light from hitting the front element and causing ghosting.

Limitations and Alternative Recommendations

The Nikon 55-200mm f/4-5.6G AF-S VR DX IF-ED has clear operational limits. The maximum aperture of f/5.6 at the 200mm end is relatively "slow," meaning it struggles in very low-light conditions without a tripod or high ISO settings. Photographers specializing in indoor sports or night-time wildlife will find the light-gathering capabilities insufficient and should instead consider the Nikon AF-S 70-200mm f/2.8E FL ED VR, which offers a constant f/2.8 aperture and superior weather sealing.

The build quality, while lightweight, features a plastic mounting flange. This is less durable than the metal mounts found on higher-end lenses and may show wear over years of heavy professional use. For those needing more reach, the AF-P DX NIKKOR 70-300mm f/4.5-6.3G ED VR provides an extra 100mm of focal length and a faster pulse motor for autofocus, though it lacks the 55-70mm range covered by this lens. Finally, the 55-200mm is not designed for full-frame (FX) sensors; while it will work in crop mode, it utilizes only a fraction of a full-frame sensor's resolution. Users of FX bodies like the D850 or Z7 should look toward the AF-S NIKKOR 70-200mm or 70-300mm FX variants to utilize their full sensor area.
