70-300mm f/4-5.6 IS USM

The Optical Architecture of the Canon EF 70-300mm f/4-5.6 IS USM

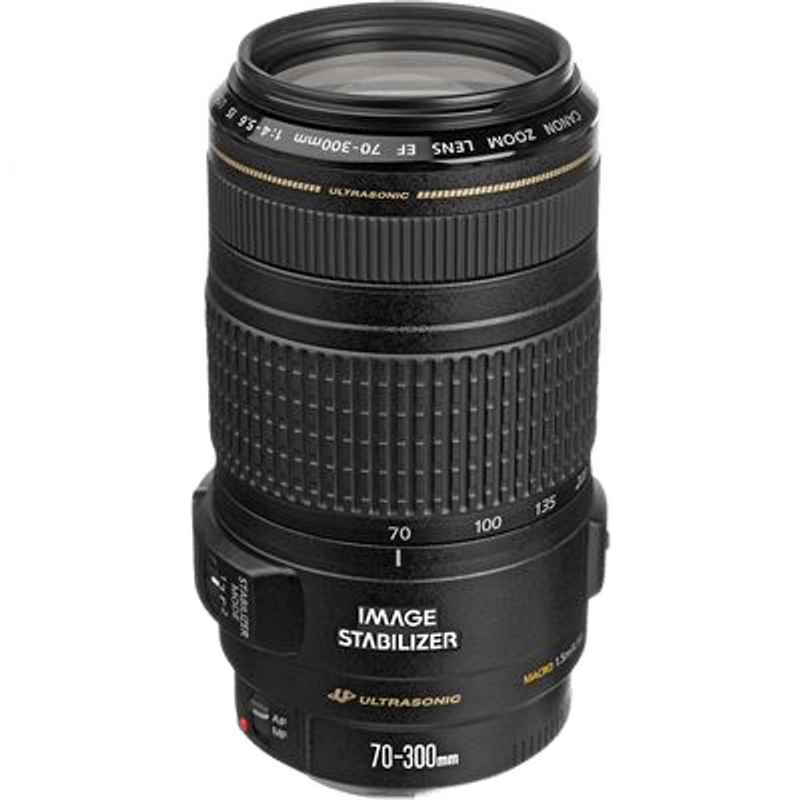

The Canon EF 70-300mm f/4-5.6 IS USM Lens is a high-performance telephoto zoom designed for both full-frame and APS-C EOS digital SLR cameras. It occupies a critical mid-range position in the EF lens catalog, sitting above the entry-level 75-300mm non-stabilized optics and below the professional L-series telephotos. The optical formula consists of 15 elements arranged in 10 groups. This design is engineered to provide a 4.3x zoom ratio, covering everything from portrait-length 70mm to the significant reach of 300mm. On an APS-C sensor camera, such as the EOS 90D or 7D Mark II, the 1.6x crop factor results in an effective focal range of 112-480mm, making it a viable tool for birding and long-distance wildlife photography. The lens was developed for enthusiasts who require more reach than a standard kit lens but prioritize a lightweight, portable form factor over the heavy metal construction and constant apertures of professional-grade glass.

Image Quality and Specialized Optical Elements

The primary technological advancement in this lens is the inclusion of a single UD (Ultra-low Dispersion) glass element. This specific element is placed within the optical path to combat secondary spectrum chromatic aberration, which often manifests as purple or green fringing at the edges of high-contrast subjects, particularly at the 300mm end of the zoom range. By correcting the refraction of light across the visible spectrum, the UD element ensures that different wavelengths converge at the same focal point, resulting in higher resolution and better contrast. To further enhance image fidelity, Canon has applied Super Spectra coatings to the lens elements. These coatings are designed to minimize ghosting and flare, which are common issues in telephoto lenses when shooting toward a light source. The internal reflections off the digital sensor are also suppressed by these coatings, maintaining color balance and light transmission efficiency.

The lens features an 8-blade circular aperture diaphragm. Unlike traditional hexagonal or heptagonal apertures, the circular blades maintain a more rounded opening even when stopped down by two or three stops. This is particularly relevant for the "bokeh" or out-of-focus areas of an image. When shooting a subject at 300mm with an aperture of f/5.6, the background compression combined with the circular aperture creates smooth, natural-looking highlights without the distracting polygonal shapes often seen in lower-end optics. The variable maximum aperture of f/4 at 70mm and f/5.6 at 300mm means the lens transmits less light as it zooms in, a trade-off that allows the lens to remain compact and weigh only approximately 630 grams.

Autofocus Performance and Mechanical Handling

The Canon EF 70-300mm f/4-5.6 IS USM Lens utilizes a Micro USM (Ultrasonic Motor) for its autofocus drive. This motor converts ultrasonic vibrational energy into rotational force to move the focusing group. While it is faster and quieter than standard DC motors found in budget lenses, it is important to note that this specific implementation of Micro USM does not support full-time manual focusing; the AF/MF switch must be toggled before the focus ring can be turned manually to avoid damaging the motor gears. The autofocus system is an internal-focusing design for the rear groups, but the front element does rotate and extend during focusing and zooming. This is a critical consideration for users of circular polarizers or graduated neutral density filters, as the filter orientation will change as the lens achieves focus.

The lens barrel includes a Zoom Lock switch located at the 70mm position. This mechanical lock prevents "zoom creep," a phenomenon where the weight of the internal glass elements causes the lens to self-extend when pointed downward or during transport. The physical dimensions of the lens are 76.5mm in diameter and 142.8mm in length when retracted. It accepts 58mm screw-in filters. The handling is further aided by the dedicated switches for the Image Stabilizer, allowing the user to toggle the system on or off and switch between two distinct stabilization modes.

Image Stabilization and Video Utility

The integrated Image Stabilizer (IS) provides up to 3 stops of compensation against camera shake. This system uses two gyro sensors to detect vertical and horizontal vibrations and shifts a dedicated lens group to counteract the movement. This allows for sharp handheld shots at shutter speeds as slow as 1/40s at the 300mm focal length, which would typically require a shutter speed of at least 1/320s to remain sharp without stabilization. The IS system offers two modes:

• Mode 1: Corrects for vibrations in both the horizontal and vertical axes, ideal for static subjects.
• Mode 2: Specifically designed for panning. It detects when the photographer is following a moving subject and disables stabilization in the direction of the pan while maintaining it in the perpendicular axis. This prevents the IS system from "fighting" the intentional movement of the camera.

For video applications, the 3-stop IS is highly effective at smoothing out the micro-jitters associated with handheld filming. However, the Micro USM motor, while quiet, may still be audible on internal camera microphones during active focus tracking. The variable aperture also presents a challenge for video; as the lens zooms from 70mm to 300mm, the maximum aperture narrows from f/4 to f/5.6, resulting in a noticeable darkening of the image unless the camera is set to an auto-ISO or auto-shutter mode to compensate for the one-stop loss of light.

On the Shoot: Real-World Scenarios in India

In a wildlife photography scenario at Ranthambore National Park, the 300mm reach is essential for capturing tigers or leopards from the safety of a safari vehicle. During the bright daylight of a morning safari, the f/5.6 aperture is more than sufficient for high shutter speeds. The Mode 2 Image Stabilization becomes vital here when tracking a bird in flight or a moving predator, as it allows for smooth horizontal tracking without the "jumping" effect often seen in non-specialized stabilization systems. The lightweight build is an advantage during long hours of waiting, as it does not require the heavy tripod support that a 400mm or 600mm prime would demand.

For a sports shoot at the Wankhede Stadium in Mumbai, this lens provides the necessary focal length to capture action at the crease from the stands. The 70-300mm range allows the photographer to capture a wide shot of the field and then quickly zoom in for a tight shot of a bowler's delivery. The USM motor is fast enough to lock onto athletes moving across the frame, provided there is sufficient ambient light. However, as the sun sets and the stadium lights take over, the f/5.6 limit at the long end may require pushing the camera's ISO to 3200 or 6400 to maintain the 1/1000s shutter speed needed to freeze fast motion.

During a travel photography expedition through the streets of Old Delhi, the lens serves as an excellent tool for candid portraiture. The 300mm focal length allows the photographer to remain unobtrusive, capturing the details of architecture or the expressions of people from across a busy intersection. The compression effect of the telephoto lens helps to stack the layers of the city—rickshaws, power lines, and historical facades—into a dense, visually interesting composition. The 58mm filter thread is a standard size, making it easy to pair with a variable ND filter for managing the harsh midday sun in open areas like Red Fort.

Compatibility and Pairing Essentials

The Canon EF 70-300mm f/4-5.6 IS USM Lens is natively compatible with all Canon EOS DSLR bodies featuring an EF or EF-S mount. This includes full-frame bodies like the 5D Mark IV and 6D Mark II, as well as APS-C bodies like the Rebel T7i or 80D. It can also be used on the Canon EOS R mirrorless system (such as the R5, R6, or R10) using the EF-EOS R Mount Adapter. When adapted to mirrorless, the lens retains full autofocus and image stabilization functionality, often benefiting from the improved eye-tracking algorithms of the newer camera bodies.

Essential pairings for this lens include:

• Filters: A 58mm UV filter for front element protection or a Circular Polarizer for cutting glare on water and foliage.
• Lens Hood: The ET-65B (sold separately) is highly recommended to prevent stray light from entering the lens at oblique angles, which can degrade contrast.
• Support: While designed for handheld use, a monopod is a valuable companion for long events or sports matches to reduce arm fatigue.
• Media: High-speed SDHC/SDXC (UHS-I or UHS-II) or CompactFlash cards are recommended to handle the burst rates often used in conjunction with telephoto photography.

Limitations and Alternative Considerations

While the Canon EF 70-300mm f/4-5.6 IS USM Lens is a versatile tool, it has distinct limitations that may lead a professional to choose a different optic. The most significant limitation is the variable aperture. For indoor events, such as a wedding reception in a dimly lit hall in Bengaluru, the f/5.6 maximum aperture at the long end is often too slow to capture sharp movement without excessive sensor noise. In such cases, a lens with a constant f/2.8 aperture, like the EF 70-200mm f/2.8L IS III USM, would be a superior, albeit much heavier and more expensive, choice.

The build quality of this lens is primarily high-quality polycarbonate. It lacks the weather sealing found in the L-series, meaning it should not be used in heavy rain or extremely dusty environments without a protective rain cover. Furthermore, the rotating front element is a drawback for landscape photographers who rely heavily on graduated filters. If extremely fast autofocus for professional bird-in-flight photography is required, the newer EF 70-300mm f/4-5.6 IS II USM with its Nano USM motor offers significantly faster focus acquisition and a smoother focus transition for video. Finally, for those needing even more reach for small subjects, the EF 100-400mm f/4.5-5.6L IS II USM provides an extra 100mm of focal length and superior edge-to-edge sharpness at the cost of increased weight and size.

• Telephoto zoom lens - 70-300mm focal length, fast f/4-5.6 aperture
• Image Stabilizer gives equivalent effect of a shutter speed three stops faster during hand-held shooting
• UD lens elements to effectively correct aberration for high quality throughout the zoom range
• Closest focus distance of just 1.5m at all zoom focal lengths
• Zoom ring locking mechanism that locks the lens at its shortest total length
