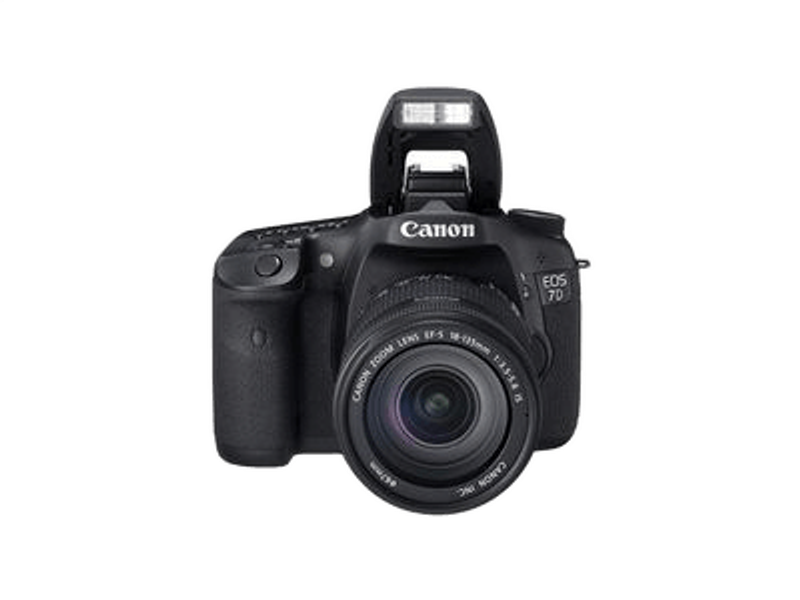

EOS 7D Digital Camera Body

The Professional APS-C Flagship

The Canon EOS 7D Digital Camera Body represents a specific pivot in the manufacturer’s EOS lineup, designed as a high-speed, APS-C format flagship that bridges the gap between the mid-range 50D and the full-frame 5D series. At its core is an 18.0 Megapixel CMOS sensor measuring 22.3 x 14.9mm, producing a 1.6x focal length crop factor relative to 35mm film. This sensor is paired with Dual DIGIC 4 Image Processors, a configuration necessitated by the high data throughput required for its 8.0 frames per second continuous shooting rate and Full HD video processing. The 7D was engineered specifically for sports, wildlife, and action photographers who require the reach of a crop sensor without sacrificing the build quality and autofocus sophistication typically reserved for professional full-frame bodies. It features a 14-bit A/D conversion process, which allows for 16,384 tones per channel, aiming to preserve detail in highlight and shadow transitions that are often lost in lower-tier 12-bit systems.

Image Quality and Sensor Technology

The image quality of the Canon EOS 7D Digital Camera Body is defined by its 18.0MP sensor architecture, which utilizes gapless microlenses to maximize light gathering efficiency. This design choice helps mitigate the noise issues traditionally associated with high pixel density on an APS-C surface. The Dual DIGIC 4 processors work in parallel to handle the massive signal flow, enabling an ISO range of 100 to 6400, which is further expandable to ISO 12800 (H). In practice, the 7D maintains clean signal-to-noise ratios up to ISO 1600, with a fine-grained luminance noise appearing at ISO 3200 that remains manageable for print. The camera employs the iFCL (Intelligent Focus Color Luminance) metering system, which uses a 63-zone dual-layer sensor. This system analyzes not just light levels, but also color and focus data from the 19 AF points to ensure consistent exposure, particularly in scenes dominated by red or yellow tones which often trick standard meters into underexposure. The 14-bit RAW files provide significant latitude for post-processing, allowing for approximately 11.5 stops of dynamic range at base ISO, making it a reliable tool for high-contrast outdoor environments.

Autofocus System and Mechanical Handling

The autofocus system is a significant departure from previous APS-C models, featuring a 19-point all cross-type AF grid. Every single point is sensitive to both horizontal and vertical lines when using lenses with an aperture of f/5.6 or faster, while the center point offers enhanced precision with f/2.8 or faster glass. The Canon EOS 7D Digital Camera Body introduces several AF area selection modes, including Spot AF for precise macro work, Single Point AF, AF Point Expansion for tracking moving subjects, and Zone AF which divides the 19 points into five selectable groups. This is managed by a dedicated AF controller chip that offloads the processing from the main imaging engines. The handling is defined by its "Intelligent Viewfinder," which offers 100% coverage and 1.0x magnification—a rarity in the APS-C class. This viewfinder utilizes a transmissive LCD overlay, allowing the camera to display grid lines, the 19 AF points, and a dual-axis electronic level directly on the optical path. The shutter mechanism is rated for 150,000 cycles, and the body is constructed from magnesium alloy with extensive weather sealing against dust and moisture, making it physically comparable to the 5D series in terms of durability.

Video Capabilities and Limitations

In the realm of motion, the Canon EOS 7D Digital Camera Body provides Full HD 1920 x 1080 resolution at frame rates of 30p (29.97), 25p, and 24p (23.976). For high-speed motion or slow-motion playback, it offers 1280 x 720 at 60p (59.94) and 50p. The video is recorded using the MPEG-4 AVC / H.264 codec in a .MOV wrapper. A critical feature for cinematographers is the inclusion of full manual exposure control in video mode, allowing for independent adjustment of shutter speed, aperture, and ISO during recording. The camera includes a 3.5mm external microphone jack, though it lacks a dedicated headphone jack for real-time monitoring. Following the Firmware 2.0 update, the 7D also supports manual audio level adjustment in 64 steps. Recording is limited by the 4GB file size limit of the FAT32 file system, which equates to approximately 12 minutes of Full HD footage per clip, and a maximum continuous recording time of 29 minutes and 59 seconds. The 1.6x crop factor is particularly useful for video, as it allows for a tighter field of view on standard EF lenses, effectively turning a 50mm lens into an 80mm equivalent for portrait or detail shots.

On the Shoot: Indian Production Scenarios

On a high-energy Bengaluru wedding reception, the 7D excels during the varmala or the entry of the couple. The 8.0 fps burst rate, combined with the 19-point cross-type AF, ensures that the photographer can capture the exact moment of flower petals mid-air without the buffer clearing issues that plague slower bodies. The integrated Speedlite Transmitter is a significant asset here; it can trigger multiple off-camera Canon EX-series flashes using optical pulses, allowing for a sophisticated lighting setup across a large banquet hall without requiring external radio triggers. The magnesium alloy build handles the inevitable bumps of a crowded wedding floor with ease.

For a Goa travel and landscape shoot, the 7D’s weather sealing is the primary advantage. When shooting at the edge of the surf at Palolem or trekking through the humid Western Ghats during the monsoon, the seals around the battery compartment, card slot, and buttons protect the internal electronics from salt spray and high humidity. The 1.0x magnification viewfinder provides a large, bright image for composing wide-angle landscapes, while the 1.6x crop factor gives extra "reach" to a 70-200mm lens for capturing distant wildlife in the Bhagwan Mahavir Sanctuary.

In a Mumbai studio product session, the 7D functions as a reliable tethered workstation. Using the USB 2.0 interface, the 18MP files are small enough for rapid transfer to a laptop for client review while still providing enough resolution for high-quality print catalogs or e-commerce banners. The dedicated M-Fn button near the shutter release can be programmed for quick access to the Dual-Axis Electronic Level, ensuring that product horizons and vertical lines are perfectly square before the shutter is even pressed, reducing post-production correction time.

Compatibility, Media, and Power

The Canon EOS 7D Digital Camera Body is compatible with the full ecosystem of Canon EF and EF-S lenses. This dual compatibility is a major advantage, allowing the use of lightweight, crop-specific lenses like the EF-S 17-55mm f/2.8 IS USM or professional L-series glass like the EF 24-70mm f/2.8L II USM. For storage, the camera utilizes a single CompactFlash (CF) card slot, supporting Type I and Type II cards, including UDMA 7 cards which are necessary to maintain the 8fps burst rate for long sequences. Power is provided by the LP-E6 rechargeable lithium-ion battery, which is shared with the 5D Mark II, 5D Mark III, and 60D, making it easy to integrate into an existing Canon kit. A single LP-E6 typically provides approximately 800 shots under standard conditions. The camera also supports the WFT-E5A Wireless File Transmitter for high-speed studio environments and the BG-E7 Battery Grip, which doubles the battery capacity and provides vertical orientation controls.

Who Should Choose Something Else

While the Canon EOS 7D Digital Camera Body is a robust workhorse, it has distinct limitations compared to more modern or full-frame alternatives. Photographers who primarily shoot in extremely low-light environments, such as dimly lit nightclubs or indoor sports without flash, may find the APS-C sensor's noise levels at ISO 6400 and above to be restrictive compared to the Canon 5D Mark III or 6D. Those requiring 4K video resolution, high-frame-rate 1080p (above 60fps), or advanced video features like Dual Pixel CMOS AF will find the 7D’s contrast-detect AF in Live View to be slow and unsuitable for moving subjects. Furthermore, the lack of an articulated "flip-out" screen makes high or low-angle video work more difficult than on the 60D or 70D. If your work requires dual card slots for instant backup (redundancy), the single CF slot of the 7D represents a single point of failure that may not suit high-stakes commercial or wedding photography where data security is the highest priority. In those cases, a 7D Mark II or a 5D series body would be the more appropriate choice.

only camera body with a strap
